52 CHAIN CASE - SHOCK ABSORBER
GS750C

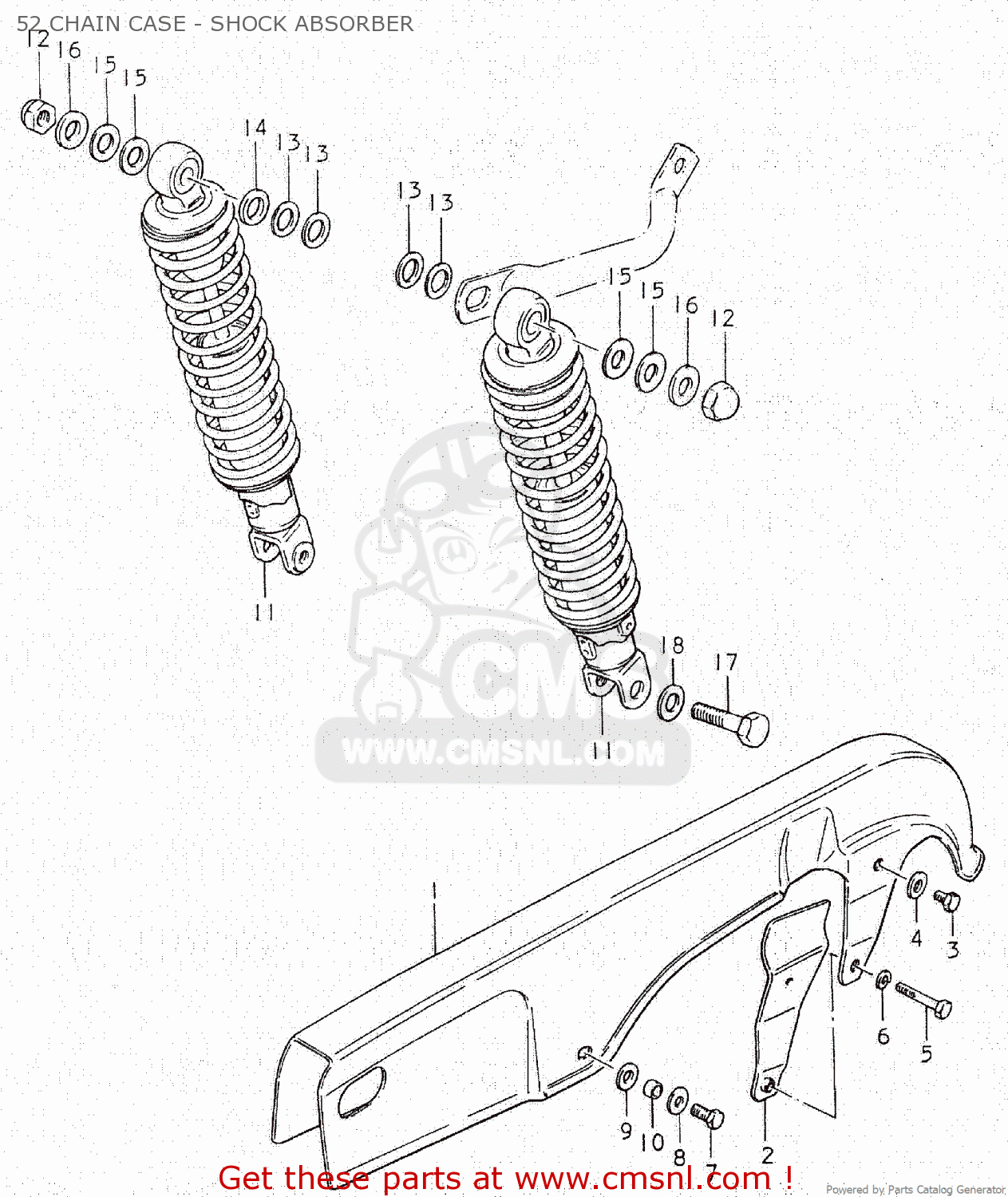

52 chain case - shock absorber diagram GS750C
52 CHAIN CASE - SHOCK ABSORBER GS750C
×
prices are in EUR
ref
part #
description
quantity
1
6131145000019
ref: 1
CASE,CHAIN
€ 99.00
2
6138145000
ref: 2
REINFORCEMENT,CHAIN CASE
€ 42.00
3
0910006011
ref: 3
BOLT(6X8)
€ 2.50
4
0916906010
ref: 4
WASHER
€ 3.00
5
0110706258
ref: 5
BOLT
€ 2.00
6
0832121068
ref: 6
LOCK WASHER
€ 2.50
7
0110706108
ref: 7
BOLT
€ 2.00
8
0916006028
ref: 8
WASHER(6.5X18X1)
€ 1.50
9
0932008005
ref: 9
CUSHION
€ 2.00
10
0918006032
ref: 10
SPACER (6.1X8X5.2)
€ 2.50
11
6210045030
ref: 11
ABSORBER ASSEMBLY,REAR SHOCK
€ 233.50
12
0831311108
ref: 12
NUT, LOWER LH
€ 2.50
13
0832211128
ref: 13
WASHER
€ 2.00
14
0916012012
ref: 14
WASHER (12.5X24X3.2)
€ 2.50
15
0916010001
ref: 15
WASHER
€ 2.00
16
0916010033
ref: 16
WASHER(10.5X24X3.2)
€ 2.00
17
0910410002
ref: 17
BOLT(10X36)
€ 4.50
18
0832211108
ref: 18
WASHER
€ 2.50
