BATTERY

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

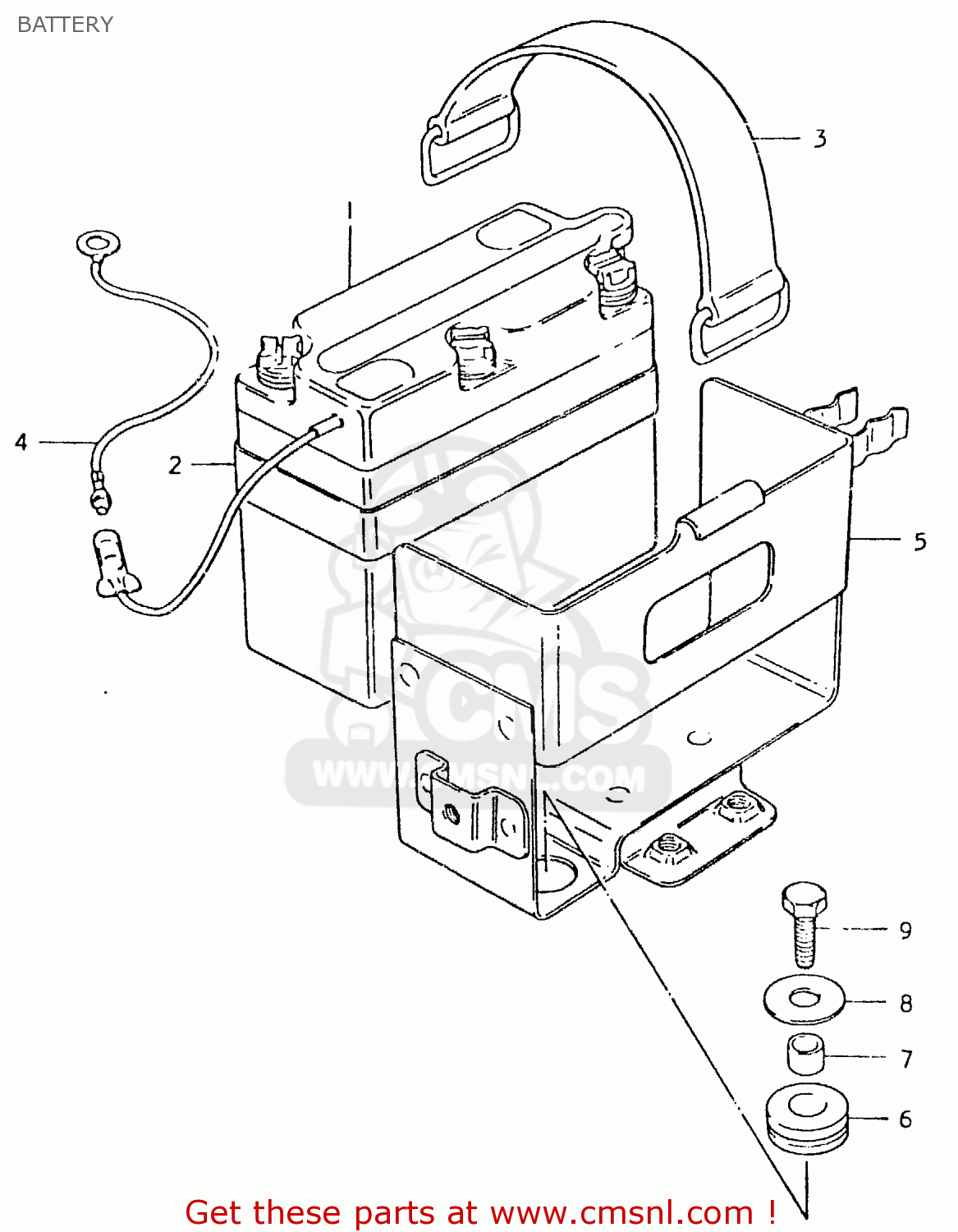

Battery diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

prices are in EUR

ref

part #

description

quantity

3361003610
ref: 1

BATTERY(6N4B-2A,6V4.2AH)

€ 49.50

3365130000
ref: 2

PROTECTOR,BATTERY

€ 9.00

0946200043
ref: 3

BAND

€ 4.50

3686227690
ref: 4

LEAD WIRE

€ 9.00

4154048001
ref: 5

HOLDER,BATTERY

€ 44.00

4154048010
ref: 5
E8

HOLDER, BATTERY

€ 0.00

0932008007
ref: 6

CUSHION

€ 4.00

0918007005
ref: 7

SPACER (7X9X7)

€ 2.50

0916006027
ref: 8

WASHER (6.5X20X1.2)

€ 2.00

0110706168
ref: 9

BOLT, UPPER

€ 3.00
