REAR COMBINATION LAMP

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

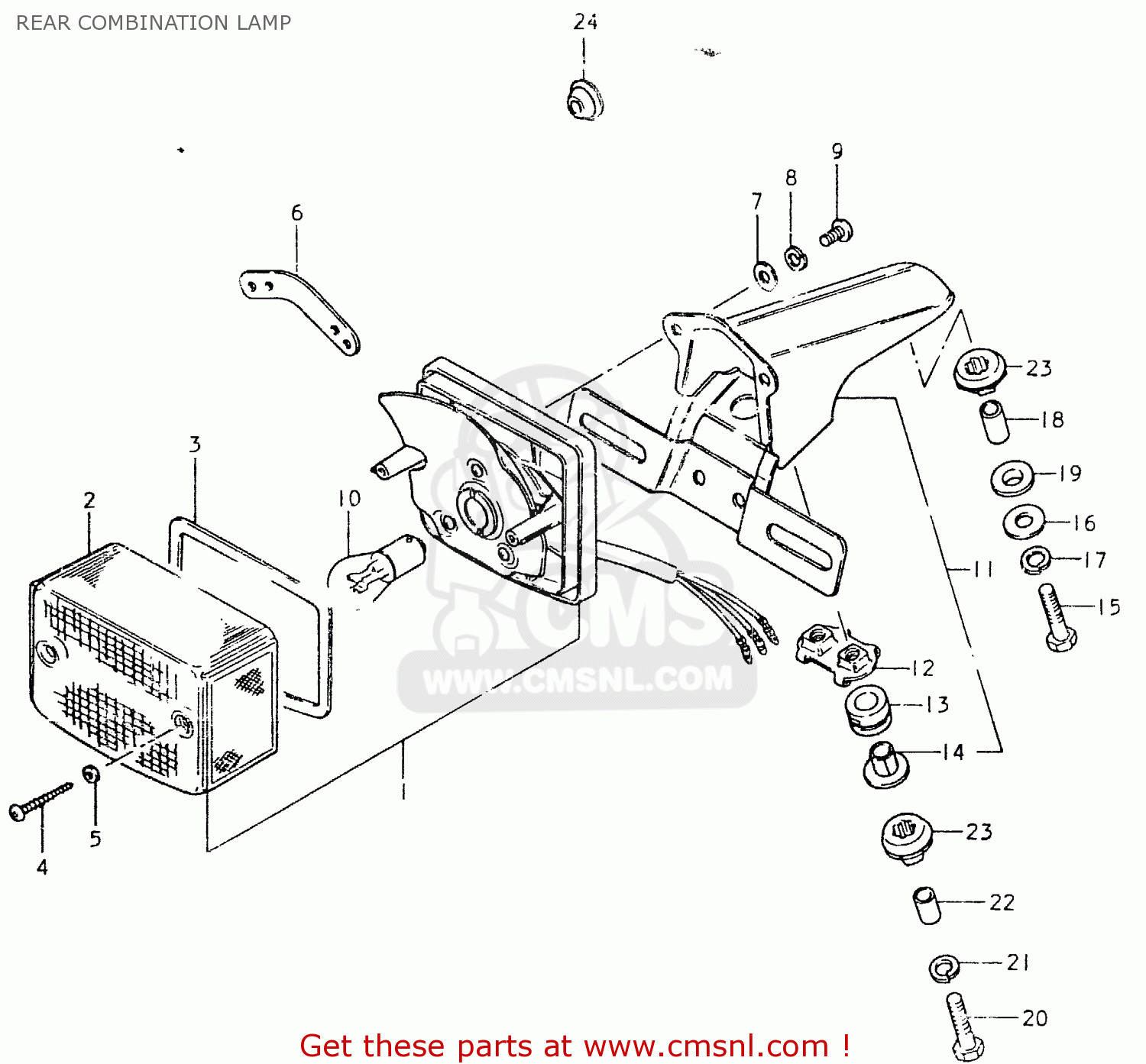

Rear combination lamp diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

REAR COMBINATION LAMP TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
REAR COMBINATION LAMP TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
REAR COMBINATION LAMP TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
3572048510999
ref: 1
LAMP UNIT,REAR COMBINATION
€ 118.50
2
3571248510
ref: 2
LENS
3571248510
€ 80.50
3
3571348510
ref: 3
GASKET (NAS)
3571348510
€ 8.50
4
0321104308
ref: 4
FROM 35625-49030
SCREW
0321104308
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
3571648510
ref: 6
PLATE,REAR COMBINATION LAMP
3571648510
€ 9.00
7
0832221058
ref: 7
WASHER
€ 2.50
8
0832121058
ref: 8
LOCK WASHER
0832121058
€ 2.00
9
0211205128
ref: 9
SCREW
€ 2.50
10
0947106008
ref: 10
BULB(6V10/3W,STANLEY,A4854H)
0947106008
€ 4.50
11
3573048530
ref: 11
BRACKET UNIT,TAIL LAMP
3573048530
€ 55.00
12
3571630950
ref: 12
PLATE
3571630950
€ 10.50
13
3576530950
ref: 13
CUSHION
3576530950
€ 18.00
14
3576630950
ref: 14
SPACER
3576630950
€ 2.00
15
0110706308
ref: 15
BOLT
0110706308
€ 2.50
16
0916006027
ref: 16
WASHER (6.5X20X1.2)
0916006027
€ 2.00
17
0832121068
ref: 17
LOCK WASHER
0832121068
€ 2.50
18
0918006072
ref: 18
SPACER
0918006072
€ 2.00
19
0932009003
ref: 19
CUSHION
0932009003
€ 2.00
20
0110706408
ref: 20
BOLT 6X40
0110706408
€ 2.00
21
0832121068
ref: 21
LOCK WASHER
0832121068
€ 2.50
22
0918006006
ref: 22
SPACER (6.8X10X11.5)
0918006006
€ 3.00
23
0932009010
ref: 23
CUSHION
0932009010
€ 2.50
24
0930807004
ref: 24
GROMMET
0930807004
€ 2.50
