MAGNETO (TS125ERX)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

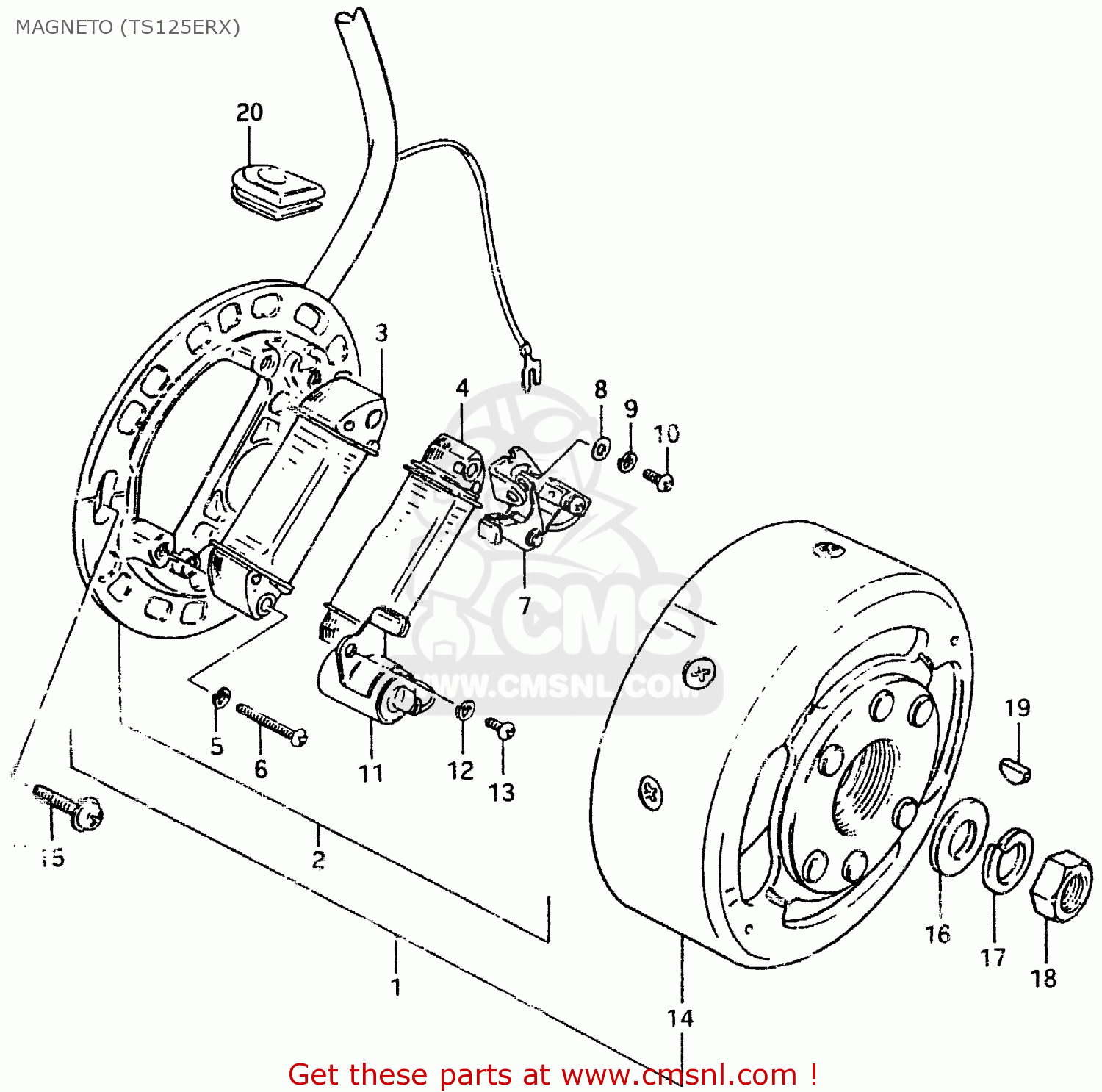

Magneto (ts125erx) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

MAGNETO (TS125ERX) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
MAGNETO (TS125ERX) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
MAGNETO (TS125ERX) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
3210048030
ref: 1
MAGNETO ASSY
€ 138.50
2
3210148030
ref: 2
STARTER ASSY
3210148030
€ 138.50
3
3212026410
ref: 3
COIL, LIGHTING
€ 29.00
4
3214048010
ref: 4
COIL,PRIMARY
3214048010
€ 60.50
5
0832121048
ref: 5
LOCK WASHER
0832121048
€ 2.00
6
0211204308
ref: 6
SCREW (4X30)
€ 1.50
7
3224043012
ref: 7
POINT ASSY,CONTACT
3224043012
€ 18.50
8
0832221048
ref: 8
WASHER
0832221048
€ 2.00
9
0832121048
ref: 9
LOCK WASHER
0832121048
€ 2.00
10
0912504001
ref: 10
SCREW(4X10)
0912504001
€ 4.50
11
3234126410
ref: 11
CONDENSER
3234126410
€ 14.50
12
0832121048
ref: 12
LOCK WASHER
0832121048
€ 2.00
13
0211204088
ref: 13
SCREW
€ 1.50
14
3210248030
ref: 14
ROTOR
€ 211.50
15
0913905011
ref: 15
SCREW(5X14)
0913905011
€ 3.00
16
0832221108
ref: 16
WASHER
0832221108
€ 2.50
17
0832121108
ref: 17
LOCK WASHER
0832121108
€ 2.00
18
0914010003
ref: 18
NUT (10MM)
0914010003
€ 3.50
19
0834131039
ref: 19
KEY
0834131039
€ 2.00
20
0930909007
ref: 20
GROMMET
0930909007
€ 2.50
