FUEL TANK (TS125ERT E9)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

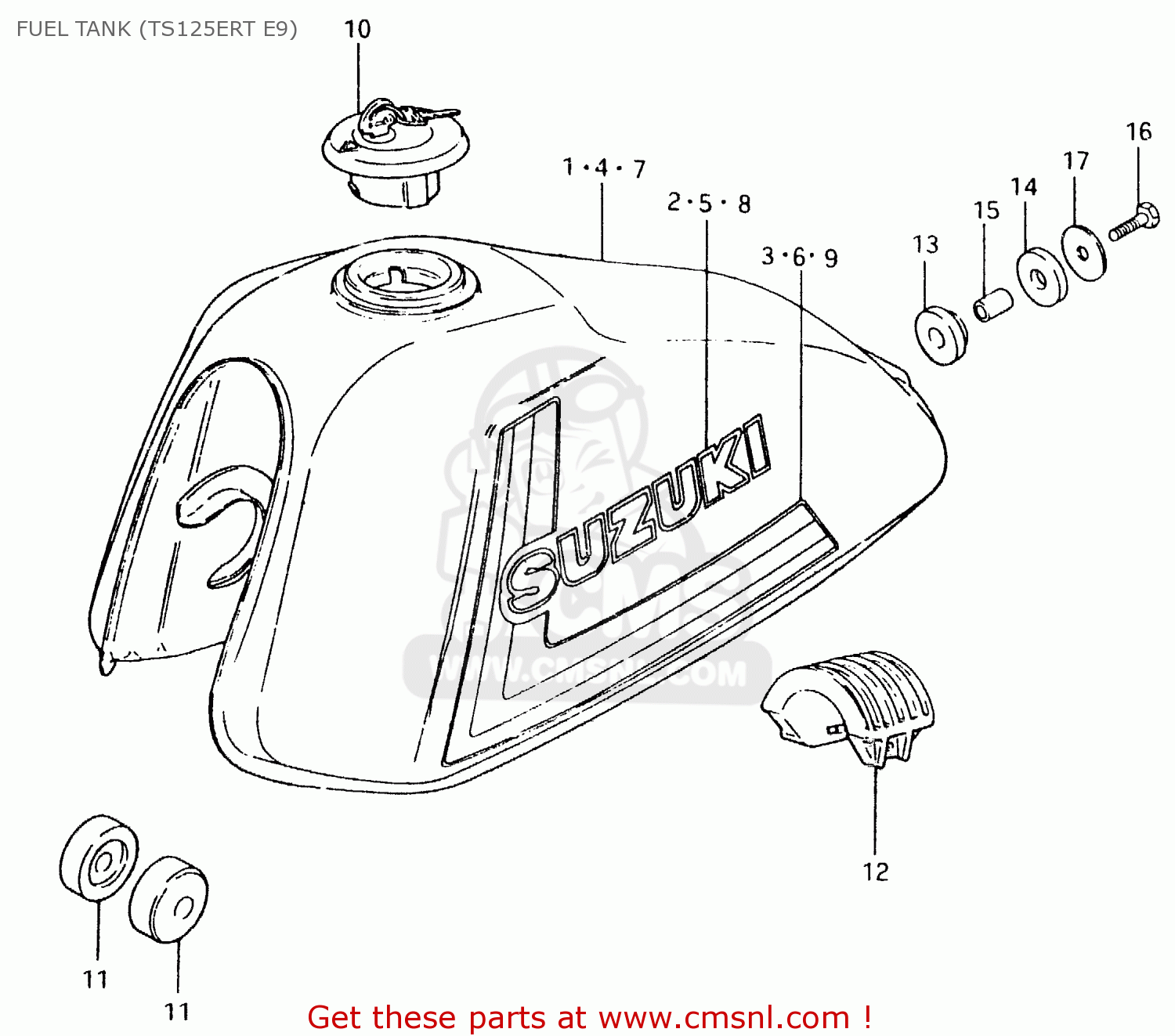

Fuel tank (ts125ert e9) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

FUEL TANK (TS125ERT E9) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
FUEL TANK (TS125ERT E9) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
FUEL TANK (TS125ERT E9) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
441004855007P
ref: 1
TANK, FUEL (RED)
€ 124.00
2
6811129320064
ref: 2
EMBLEM
6811129320064
€ 10.50
3
681004884069F
ref: 3
TAPE SET
€ 0.00
4
441004855008Y
ref: 4
TANK, FUEL (BLUE)
€ 124.00
5
6811129320064
ref: 5
EMBLEM
6811129320064
€ 10.50
6
681004884069G
ref: 6
TAPE SET
681004884069G
€ 20.00
7
4410048550189
ref: 7
TANK, FUEL (WHITE)
€ 124.00
8
6811129320019
ref: 8
EMBLEM(BLACK)
6811129320019
€ 12.50
9
681004884067H
ref: 9
TAPE SET
€ 43.00
10
4420030702
ref: 10
CAP SET,FUEL TANK
4420030702
€ 112.00
11
0932910007
ref: 11
CUSHION
0932910007
€ 3.00
12
4454148500
ref: 12
CUSHION,FUEL TANK
4454148500
€ 4.50
13
0932012013
ref: 13
CUSHION
0932012013
€ 3.00
14
0932012017
ref: 14
CUSHION
0932012017
€ 2.50
15
0918008067
ref: 15
SPACER(8.5X12X19)
0918008067
€ 2.50
16
0110708308
ref: 16
BOLT (8X30)
0110708308
€ 2.50
17
0916008002
ref: 17
WASHER (8.5X29X1.6)
0916008002
€ 2.00
