MAGNETO (E8)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

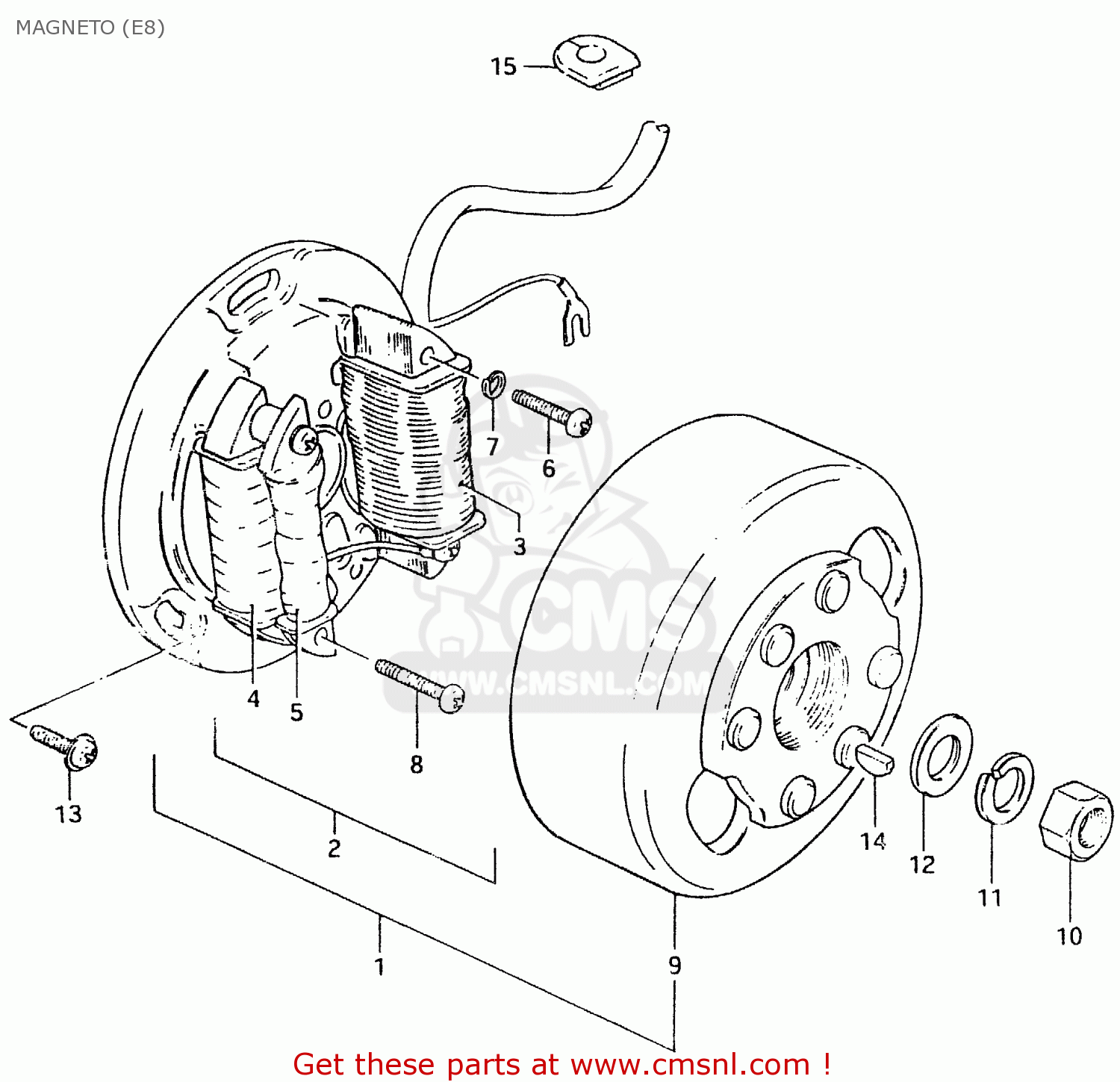

Magneto (e8) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

MAGNETO (E8) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
MAGNETO (E8) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
MAGNETO (E8) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
3210039230
ref: 1
MAGNETO ASSY
€ 0.00
2
3210139230
ref: 2
STATOR ASSY
€ 0.00
3
3212048010
ref: 3
COIL,LIGHTING
3212048010
€ 32.50
4
3214039230
ref: 4
COIL,PRIMARY
3214039230
€ 52.00
5
3215039230
ref: 5
COIL,PULSER
€ 0.00
6
0211204258
ref: 6
SCREW 4X25
0211204258
€ 2.00
7
0832121048
ref: 7
LOCK WASHER
0832121048
€ 2.00
8
3235139210
ref: 8
SCREW
€ 2.50
9
3210239230
ref: 9
ROTOR
€ 0.00
10
0914010003
ref: 10
NUT (10MM)
0914010003
€ 3.50
11
0832121108
ref: 11
LOCK WASHER
0832121108
€ 2.00
12
0832221108
ref: 12
WASHER
0832221108
€ 2.50
13
0913905011
ref: 13
SCREW(5X14)
0913905011
€ 3.00
14
0834131039
ref: 14
KEY
0834131039
€ 2.00
15
0930909007
ref: 15
GROMMET
0930909007
€ 2.50
