HEADLAMP HOUSING (TS125ERX)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

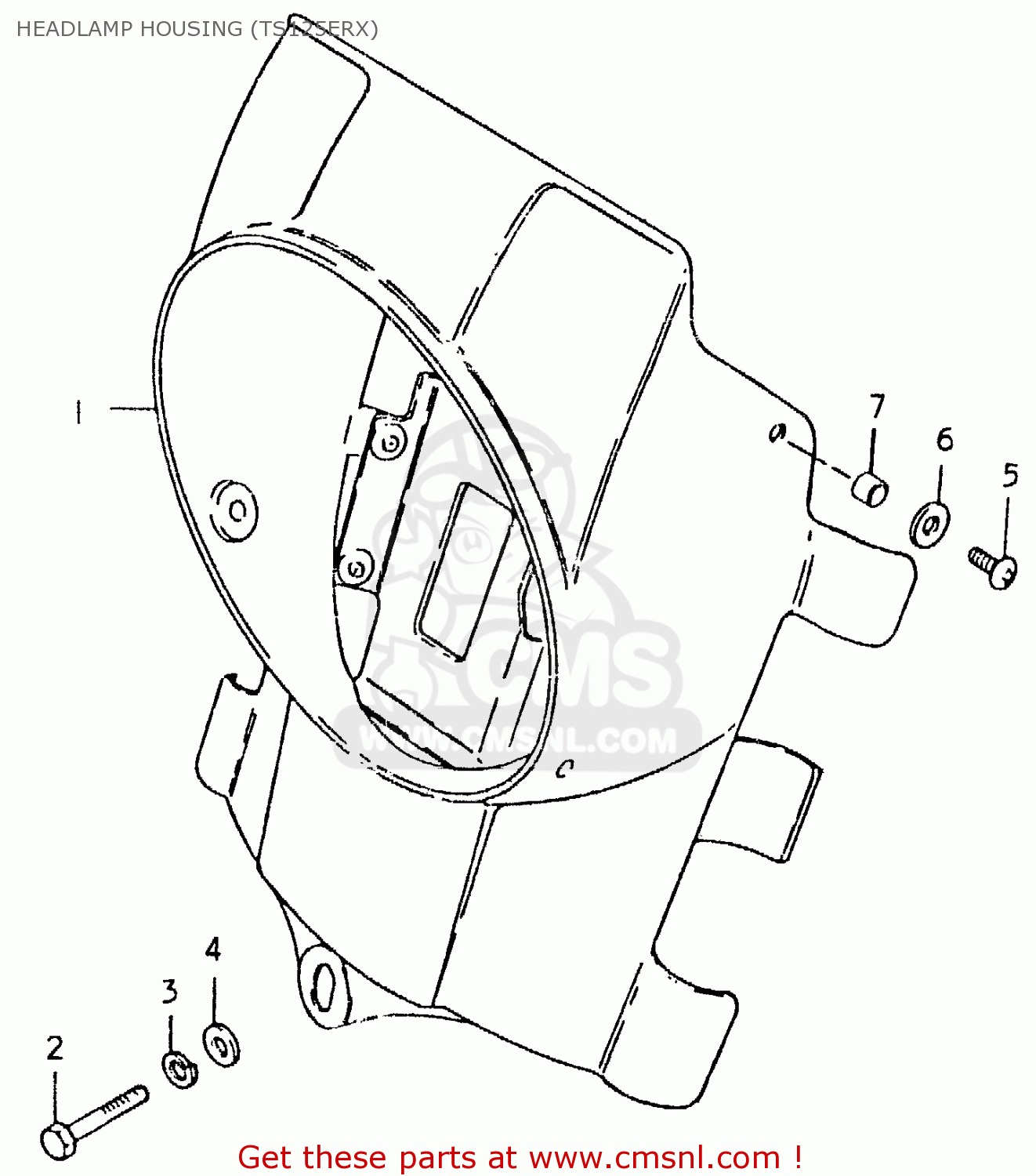

Headlamp housing (ts125erx) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

prices are in EUR

ref

part #

description

quantity

518104850407P
ref: 1

HOUSING, HEADLAMP (RED)

€ 62.00

518104850408Y
ref: 1

HOUSING,HEADLAMP

€ 71.50

5181048504189
ref: 1

HOUSING, HEADLAMP (WHITE)

€ 71.50

5181048504163
ref: 1

HOUSING, HEADLAMP (YELLOW)

€ 71.50

0110706128
ref: 2

BOLT

€ 2.00

0832121068
ref: 3

LOCK WASHER

€ 2.50

0916006020
ref: 4

WASHER

€ 2.00

0211205128
ref: 5

SCREW

€ 2.50

0916005006
ref: 6

WASHER (5.5X18X1.6)

€ 4.00

0918005015
ref: 7

SPACER (5.5X8X4)

€ 3.00
