OIL TANK

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

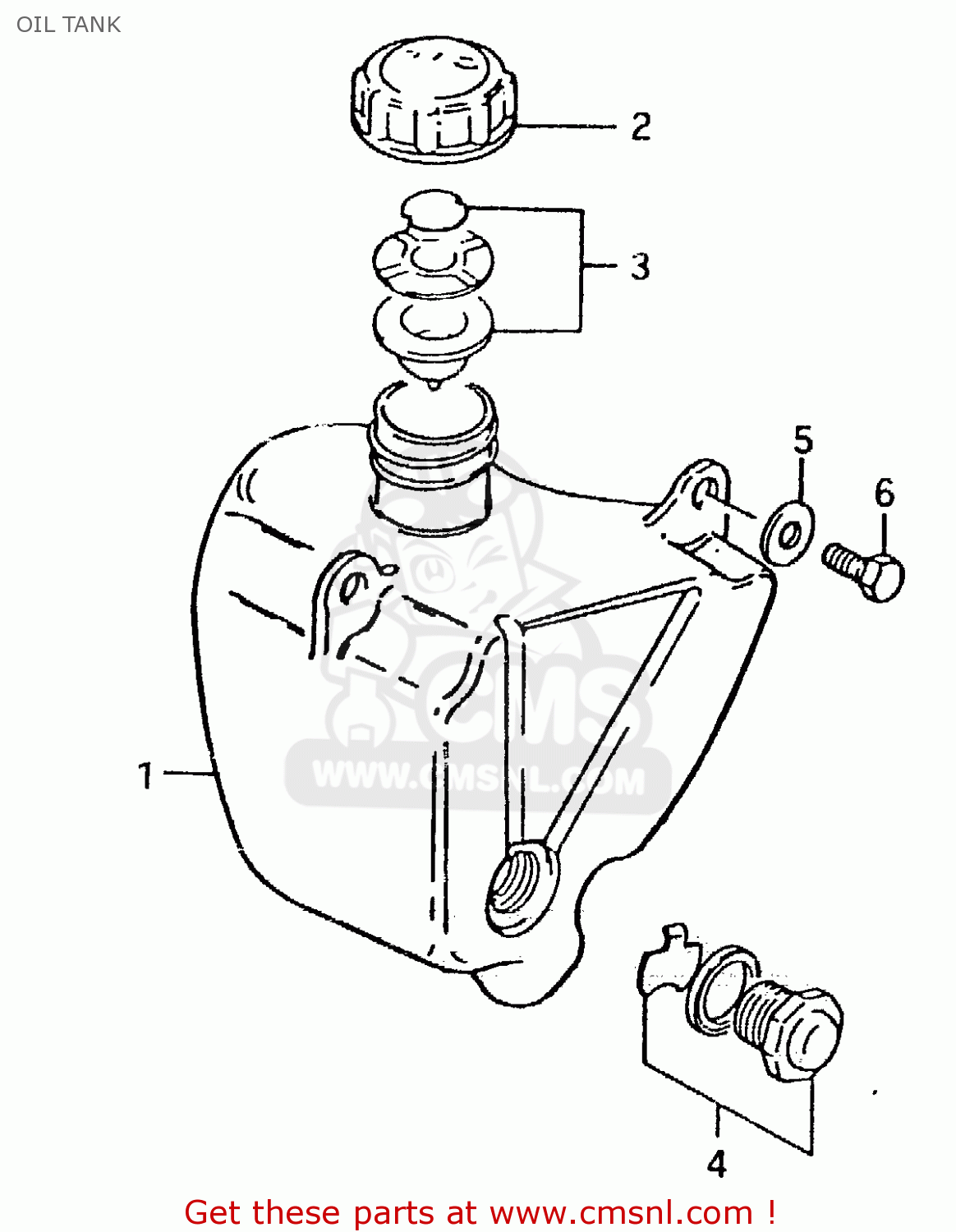

Oil tank diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

OIL TANK TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

OIL TANK TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

prices are in EUR

ref

part #

description

quantity

1

4461129301
ref: 1

TANK,OIL

€ 27.00

2

4465105003
ref: 2

CAP,OIL TANK

€ 4.00

3

4460030832
ref: 3

GASKET SET (NAS)

€ 6.00

4

4460046810
ref: 4

LENS SET,OIL LEVEL

€ 6.50

5

0916006007
ref: 5

WASHER

€ 2.00

6

0110706168
ref: 6

BOLT, UPPER

€ 3.00
