LEFT HANDLE SWITCH (E15, E17, E18, E25, E26)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

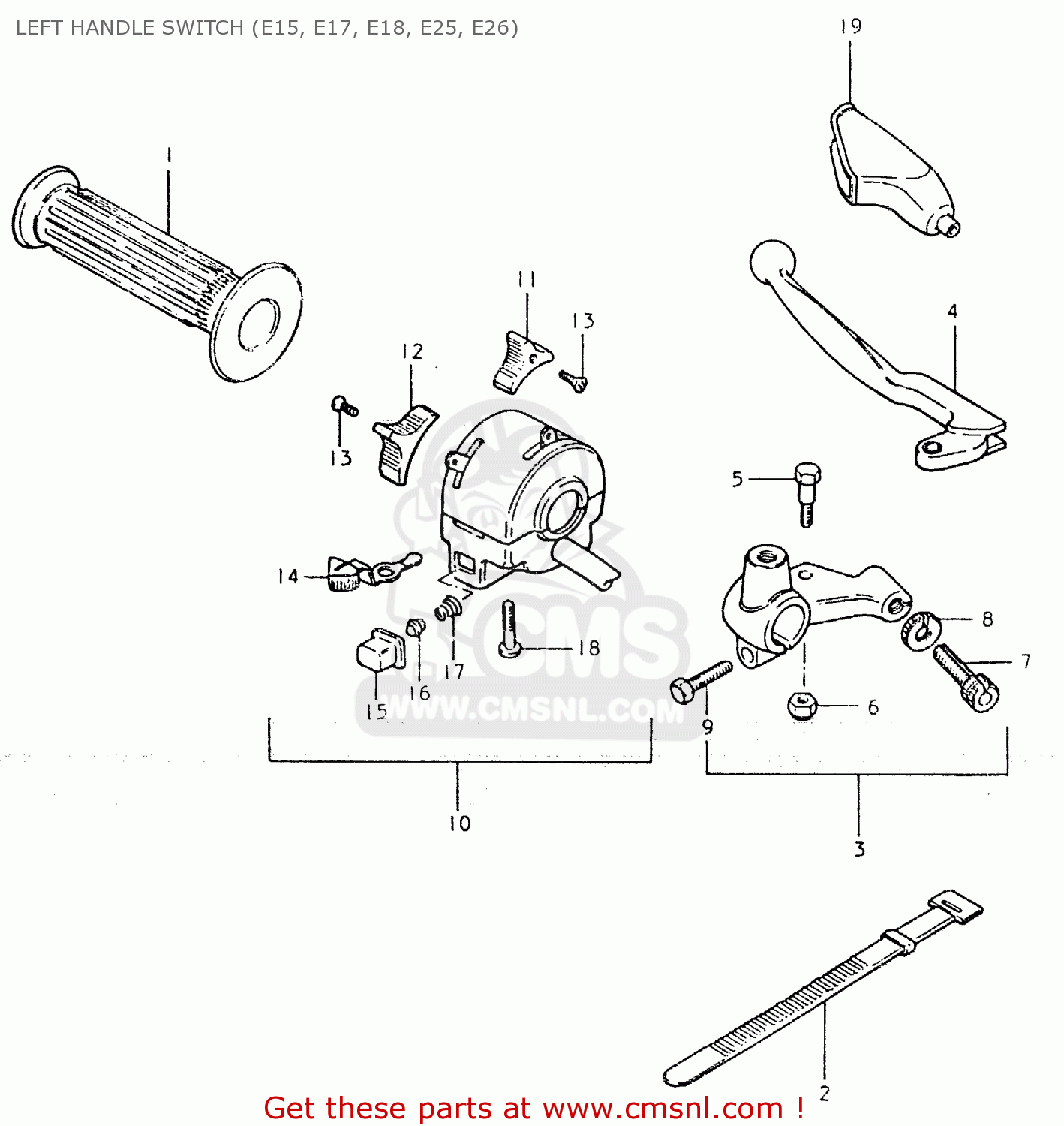

Left handle switch (e15, e17, e18, e25, e26) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

LEFT HANDLE SWITCH (E15, E17, E18, E25, E26) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
LEFT HANDLE SWITCH (E15, E17, E18, E25, E26) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
LEFT HANDLE SWITCH (E15, E17, E18, E25, E26) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
5721145020
ref: 1
GRIP,L
5721145020
€ 9.00
2
0940712402
ref: 2
CLAMP(L:120)
0940712402
€ 3.00
3
5750048500
ref: 3
LEVER ASSY,CLUTCH
5750048500
€ 50.50
4
5762026500
ref: 4
LEVER,CLUTCH
5762026500
€ 28.50
5
5743111011
ref: 5
BOLT,LEVER
5743111011
€ 6.00
6
0831921068
ref: 6
NUT 6MM
0831921068
€ 2.00
7
5744126010
ref: 7
ADJUSTER,CABLE
5744126010
€ 4.00
8
5744211010
ref: 8
NUT,CABLE ADJUSTER
5744211010
€ 4.00
9
0110706208
ref: 9
BOLT
0110706208
€ 2.00
10
3740048011
ref: 10
SWITCH ASSY, HANDLE LH
3740048011
€ 62.50
11
3741145012
ref: 11
KNOB,LIGHTING SWITCH
3741145012
€ 4.50
12
3742145012
ref: 12
KNOB,DIMMER SWITCH
3742145012
€ 5.50
13
0211203068
ref: 13
SCREW
0211203068
€ 2.00
14
3751345011
ref: 14
KNOB,TURNSIGNAL
3751345011
€ 6.50
15
5737145000
ref: 15
BUTTON,HORN
5737145000
€ 3.00
16
5737245000
ref: 16
CONTACT
5737245000
€ 3.00
17
5738245000
ref: 17
SPRING
5738245000
€ 2.50
18
0211205258
ref: 18
SCREW
0211205258
€ 2.00
19
5734140001
ref: 19
COVER,CLUTCH LEVER
5734140001
€ 7.50
