FRAME

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

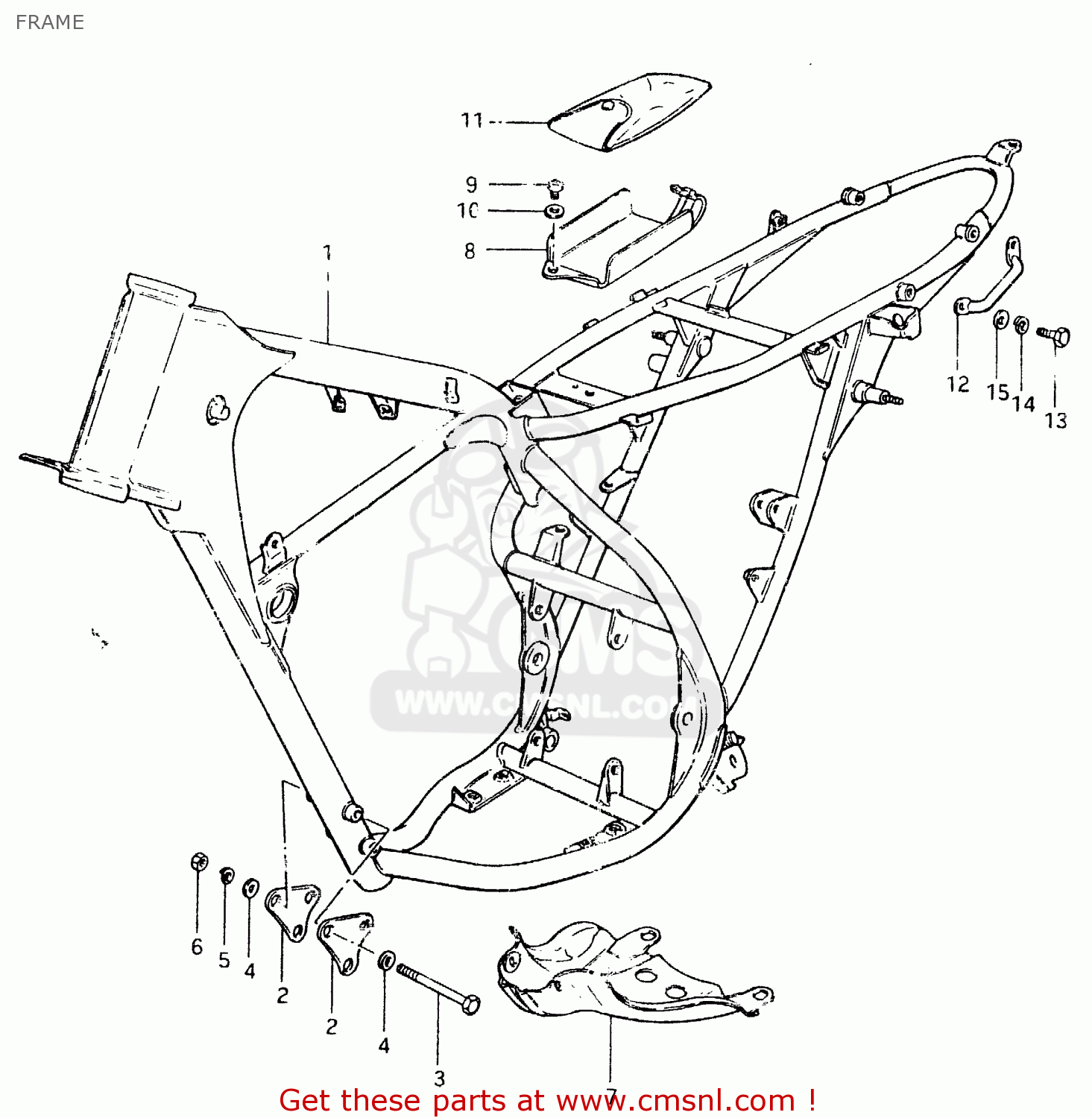

Frame diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

FRAME TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
FRAME TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
FRAME TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
4110048501019
ref: 1
FRAME
€ 664.00
1
4110048530019
ref: 1
TS125ERT:E15,E17, TS
FRAME (BLACK)
€ 0.00
1
4110048550019
ref: 1
TS125ERT E18, TS125E
FRAME (BLACK)
€ 427.00
1
4110048521019
ref: 1
TS125ERT:E22,E26, TS
FRAME (BLACK)
€ 0.00
1
4110048560019
ref: 1
TS125ERT E30, TS125E
FRAME (BLACK)
€ 0.00
2
4199148000
ref: 2
PLATE,ENG MTG
€ 0.00
2
4199148020
ref: 2
TS125ERT E30, TS125E
PLATE,ENG MTG
€ 6.00
3
0110708758
ref: 3
BOLT,8X75
€ 3.00
4
0832211088
ref: 4
WASHER
0832211088
€ 2.00
5
0832121088
ref: 5
LOCK WASHER
0832121088
€ 2.00
6
0831012088
ref: 6
NUT
0831012088
€ 2.00
7
4251048500
ref: 7
TS125ERT:E2,E4,E15,E
PROTECTOR, ENGINE
4251048500
€ 52.50
8
4155029301
ref: 8
HOLDER,TOOL
€ 0.00
9
0211206108
ref: 9
SCREW
0211206108
€ 1.50
10
0832221068
ref: 10
WASHER
0832221068
€ 2.00
11
0980000203
ref: 11
*
TOOL SET
€ 47.50
12
4161148500
ref: 12
GRIP,FRAME HANDLE
4161148500
€ 35.50
13
0110708168
ref: 13
BOLT
€ 2.00
14
0832121088
ref: 14
LOCK WASHER
0832121088
€ 2.00
15
0832211088
ref: 15
WASHER
0832211088
€ 2.00
