REFLEX REFLECTOR

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

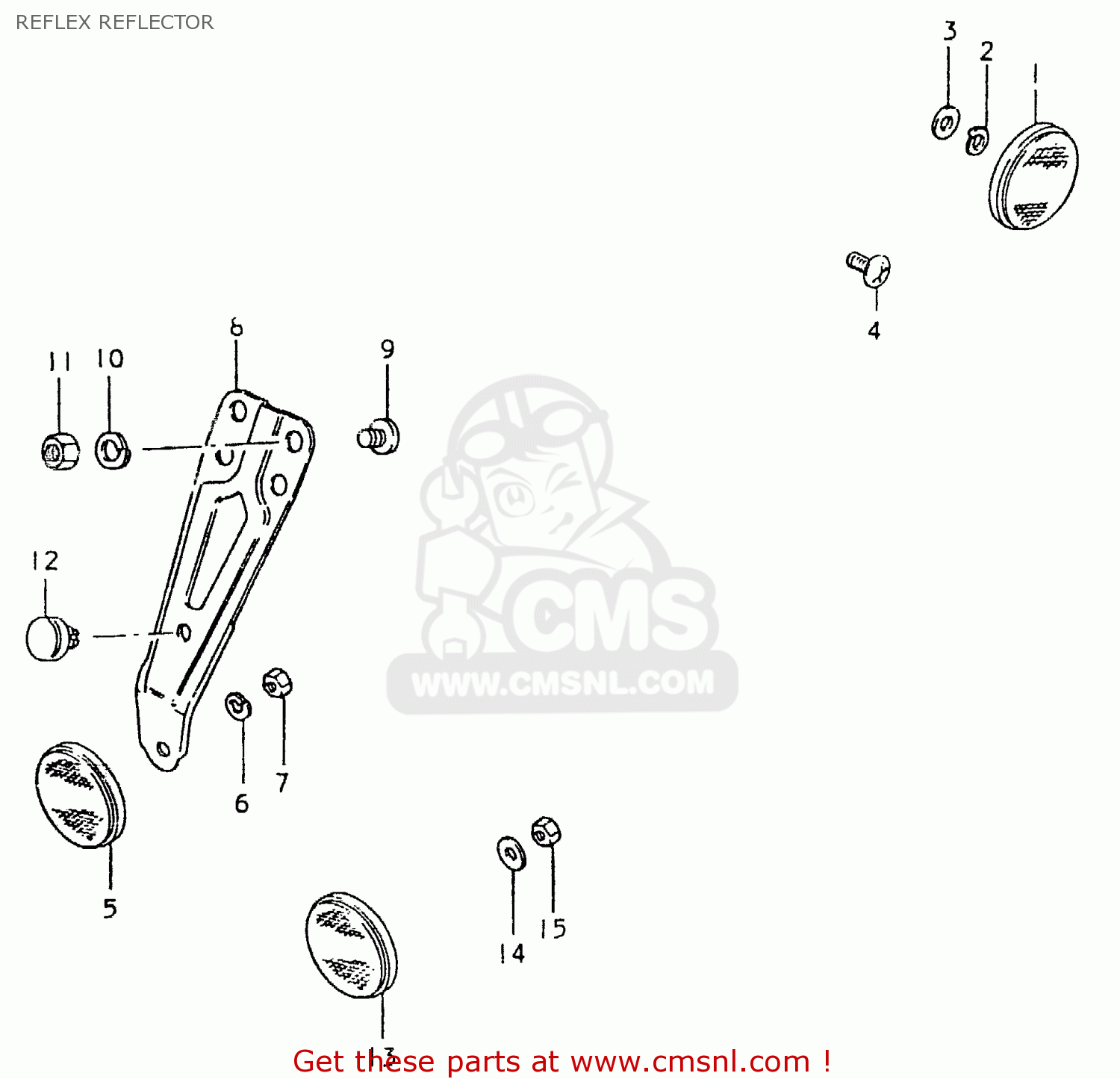

Reflex reflector diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

REFLEX REFLECTOR TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
REFLEX REFLECTOR TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
REFLEX REFLECTOR TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
3595035011
ref: 1
REFLEX REFLECTOR,FR
3595035011
€ 11.00
2
0832121058
ref: 2
LOCK WASHER
0832121058
€ 2.00
3
0832221058
ref: 3
WASHER
€ 2.50
4
0214205067
ref: 4
E22
SCREW 5X6
€ 2.50
5
3597008400
ref: 5
REFLEX REFLECTOR,RR
3597008400
€ 7.00
5
3597030910
ref: 5
E2,E4
REFLEX REFLECTOR,RR
3597030910
€ 47.50
6
0832221058
ref: 6
WASHER
€ 2.50
7
0831011058
ref: 7
NUT
0831011058
€ 2.50
8
3597448510
ref: 8
BRACKET
€ 4.50
8
3597448520
ref: 8
E2
BRACKET
€ 6.00
9
0214206108
ref: 9
SCREW
0214206108
€ 2.00
10
0832121068
ref: 10
LOCK WASHER
0832121068
€ 2.50
11
0831011068
ref: 11
NUT
0831011068
€ 2.50
12
0932105010
ref: 12
CUSHION
0932105010
€ 3.50
13
3597045611
ref: 13
E15,E16,E17,E21,E22,
REFLECTOR,REFLEX
€ 47.50
14
0832221058
ref: 14
E15,E16,E17,E21,E22,
WASHER
€ 2.50
15
0831011058
ref: 15
E15,E16,E17,E21,E22,
NUT
0831011058
€ 2.50
