MUFFLER

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

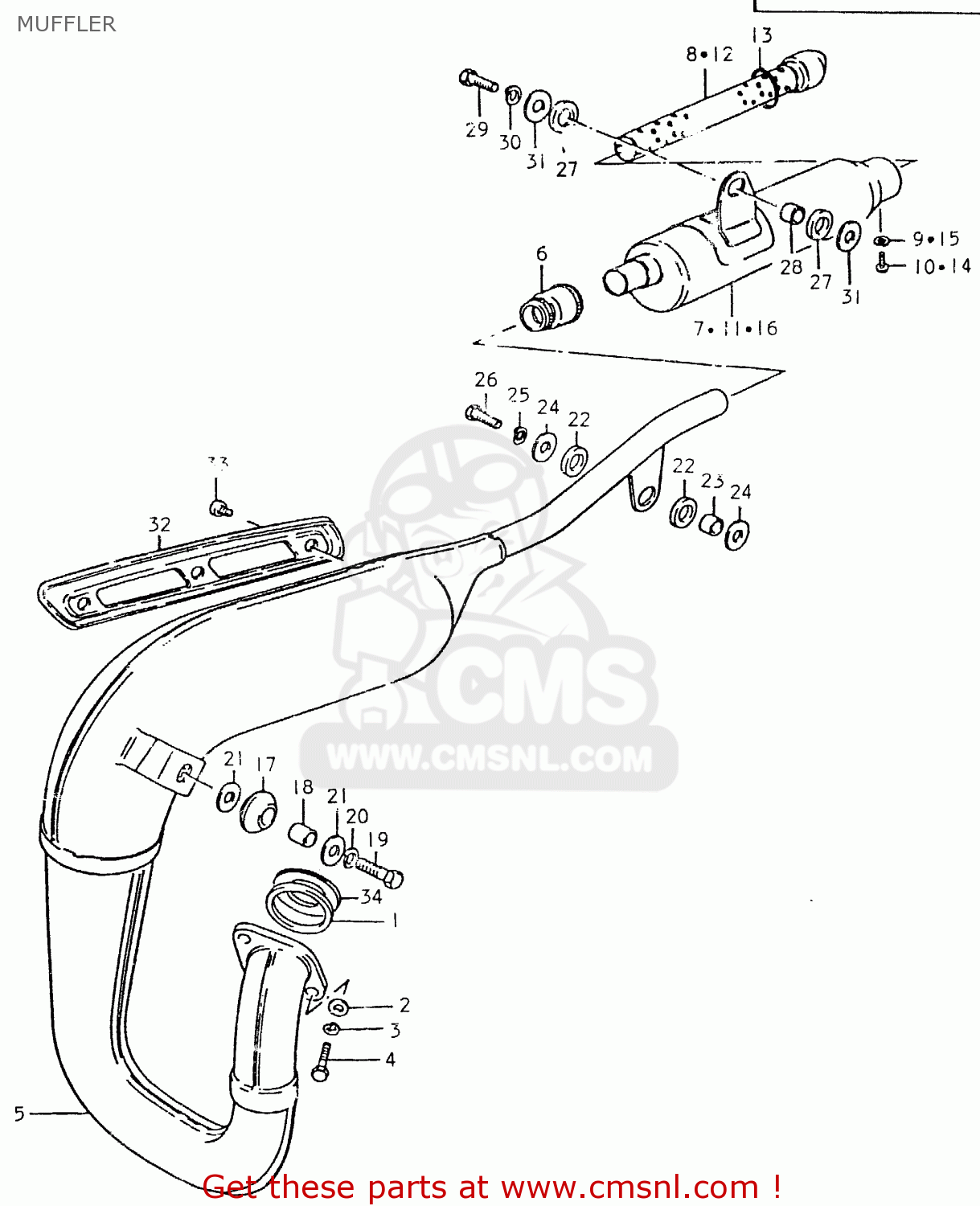

Muffler diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

MUFFLER TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
MUFFLER TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
MUFFLER TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
1418111010
ref: 1
GASKET,EXHAUST PIPE (NAS)
1418111010
€ 8.00
2
0832221068
ref: 2
WASHER
0832221068
€ 2.00
3
0832121068
ref: 3
LOCK WASHER
0832121068
€ 2.50
4
0912806024
ref: 4
SCREW (6X25)
0912806024
€ 2.50
5
1431048520
ref: 5
BODY,MUFFLER
€ 520.50
5
1431048510
ref: 5
E22
BODY,MUFFLER 1ST
1431048510
€ 260.50
6
1477148002
ref: 6
CONNECTOR,MUFFLER
1477148002
€ 8.00
7
1430348001
ref: 7
MUFFLER ASSY, 2ND
€ 266.00
7
1430348610
ref: 7
E4,TS125ERXE21
MUFFLER ASSY,2ND
1430348610
€ 266.00
8
1451048000
ref: 8
PIPE,BAFFLE
1451048000
€ 40.00
9
0832121068
ref: 9
LOCK WASHER
0832121068
€ 2.50
10
0211206088
ref: 10
SCREW
€ 2.00
11
1430348510
ref: 11
E22
MUFFLER ASSY, 2ND
€ 47.50
12
1451048500
ref: 12
PIPE, BUFFLE
1451048500
€ 45.50
13
0928031002
ref: 13
O RING
€ 2.50
14
0211206088
ref: 14
SCREW
€ 2.00
15
0832121068
ref: 15
LOCK WASHER
0832121068
€ 2.50
16
1430348520
ref: 16
TS125ERTE21
MUFFLER ASSY, 2ND (NON-RENOVEABLE TYPE)
€ 0.00
17
1477230500
ref: 17
DAMPER,MUFFLER,FR
1477230500
€ 3.00
18
0918008048
ref: 18
SPACER (8X12X15)
0918008048
€ 3.50
19
0110708358
ref: 19
BOLT
0110708358
€ 3.50
20
0832121088
ref: 20
LOCK WASHER
0832121088
€ 2.00
21
0916008007
ref: 21
WASHER (8.7X22X2)
0916008007
€ 2.00
22
0932014006
ref: 22
CUSHION
0932014006
€ 3.50
23
0918008075
ref: 23
SPACER (8.6X13.8X9.8)
0918008075
€ 3.00
24
0916008004
ref: 24
WASHER
0916008004
€ 2.50
25
0832121088
ref: 25
LOCK WASHER
0832121088
€ 2.00
26
0110708258
ref: 26
BOLT
0110708258
€ 2.50
27
0932014006
ref: 27
CUSHION
0932014006
€ 3.50
28
0918008050
ref: 28
SPACER (8.6X13.8X9)
€ 2.50
29
0110708258
ref: 29
BOLT
0110708258
€ 2.50
30
0832121088
ref: 30
LOCK WASHER
0832121088
€ 2.00
31
0916008004
ref: 31
WASHER
0916008004
€ 2.50
32
1478148500
ref: 32
COVER,MUFFLER
1478148500
€ 17.00
33
0211206088
ref: 33
SCREW
€ 2.00
34
1415948500
ref: 34
E2,E4,E15,E17
PLATE, EXHAUST PIPE
1415948500
€ 4.00
