Buy Suzuki TS Parts Online


TURN SIGNAL LAMP (E18 : F.NO.TS1252-333130~)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

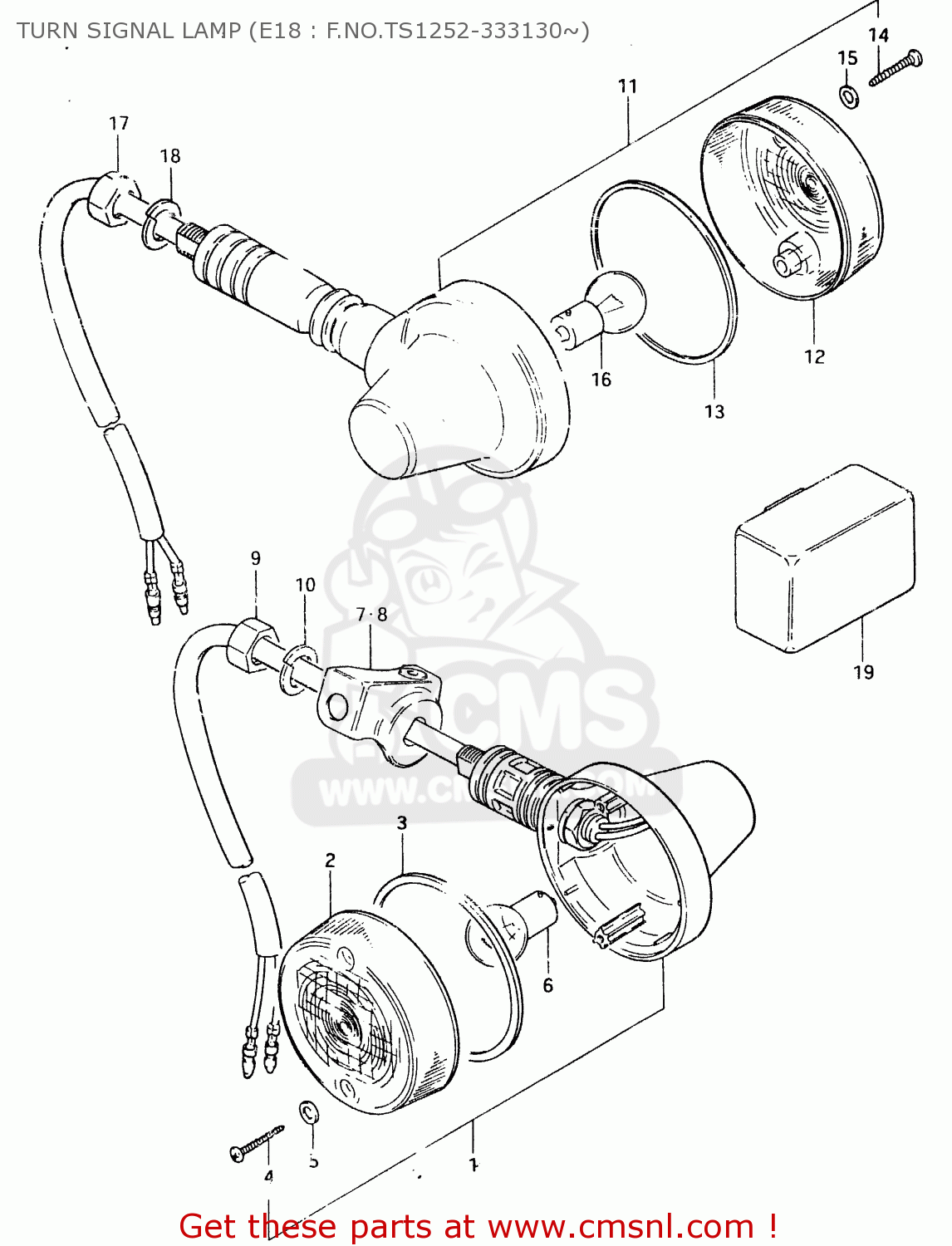

Turn signal lamp (e18 : f.no.ts1252-333130~) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

TURN SIGNAL LAMP (E18 : F.NO.TS1252-333130~) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
TURN SIGNAL LAMP (E18 : F.NO.TS1252-333130~) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
TURN SIGNAL LAMP (E18 : F.NO.TS1252-333130~) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
3560148550
ref: 1
LAMP, FRONT TURN SIGANL
€ 0.00
2
3561248530
ref: 2
LENS
3561248530
€ 7.50
3
3561328620
ref: 3
GASKET (NAS)
3561328620
€ 7.00
4
0321104208
ref: 4
FROM 35623-47610
SCREW
0321104208
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947106041
ref: 6
BULB (6V,21W)
€ 3.50
7
5125129900291
ref: 7
BRACKET,TURNSIGNAL LAMP,R
5125129900291
€ 7.50
8
5125229900291
ref: 8
BRACKET,TURNSIGNAL LAMP,L
5125229900291
€ 7.50
9
0831021128
ref: 9
NUT
€ 3.00
10
0832121128
ref: 10
WASHER,LOCK 12
0832121128
€ 2.50
11
3560337480
ref: 11
LAMP, REAR TURN SIGNAL
€ 0.00
12
3561248510
ref: 12
LENS
3561248510
€ 10.50
13
3561328620
ref: 13
GASKET (NAS)
3561328620
€ 7.00
14
0321104208
ref: 14
FROM 35623-47610
SCREW
0321104208
€ 1.50
15
3562743010
ref: 15
GASKET (NAS)
3562743010
€ 2.00
16
0947106041
ref: 16
BULB (6V,21W)
€ 3.50
17
0831021128
ref: 17
NUT
€ 3.00
18
0832122128
ref: 18
LOCK WASHER
€ 0.00
19
3861048611
ref: 19
RELAY, TURN SIGNAL
3861048611
€ 51.50
