Buy Suzuki TS Parts Online


STAND - FOOTREST

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

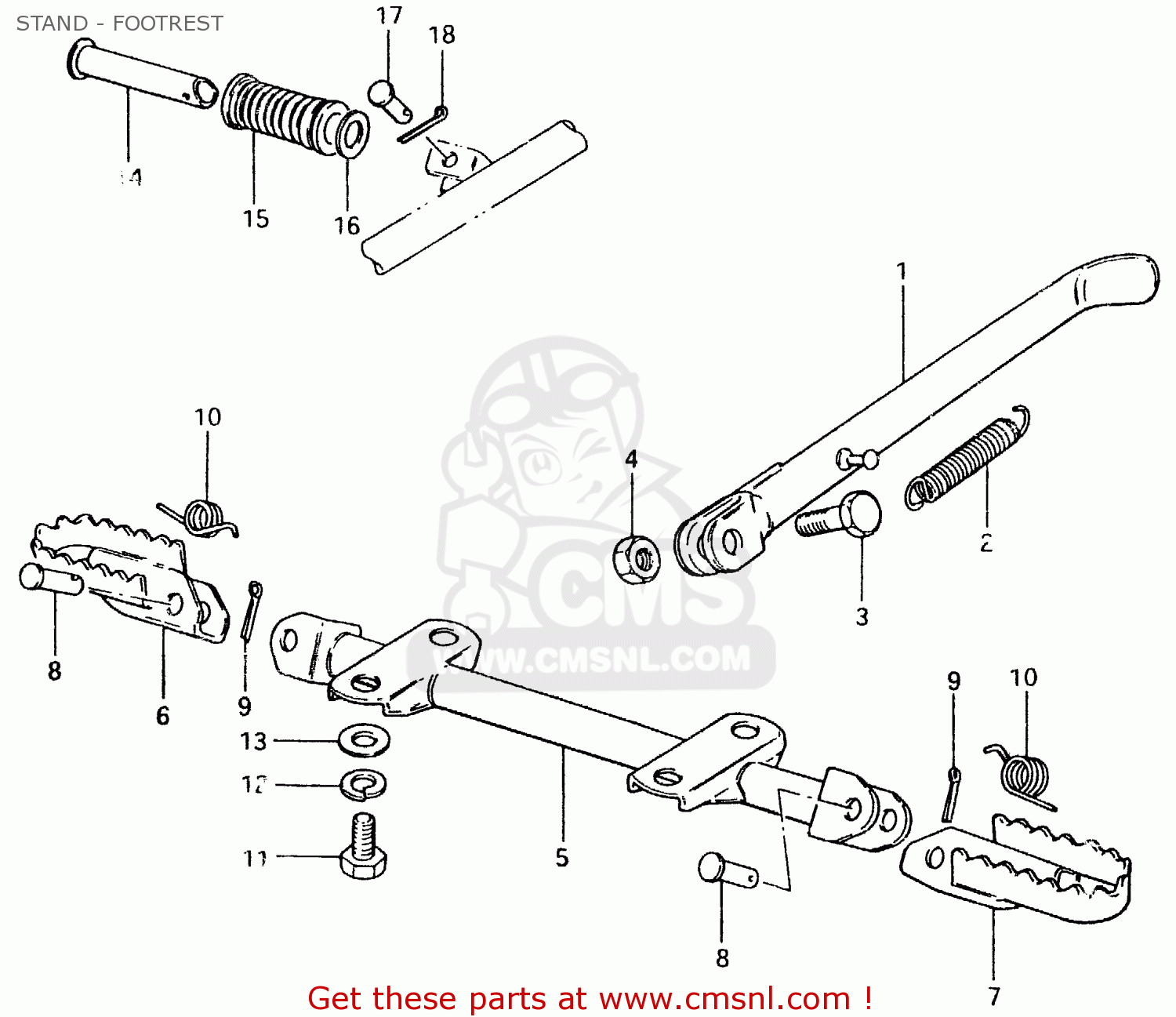

Stand - footrest diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

STAND - FOOTREST TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
STAND - FOOTREST TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
STAND - FOOTREST TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
4231048500
ref: 1
STAND,PROP
4231048500
€ 137.50
2
0944314017
ref: 2
SPRING
0944314017
€ 6.50
3
0910010067
ref: 3
BOLT(10X30)
0910010067
€ 3.50
4
0831022108
ref: 4
NUT
0831022108
€ 2.50
5
4351048001
ref: 5
BAR,FR FOOTREST
4351048001
€ 32.50
6
4355041102
ref: 6
FOOTREST,FRONT
4355041102
€ 30.50
7
4356041102
ref: 7
FOOTREST
4356041102
€ 31.50
8
0920010008
ref: 8
PIN
0920010008
€ 3.00
9
0411120208
ref: 9
PIN 20X20
0411120208
€ 1.50
10
0944815004
ref: 10
SPRING
0944815004
€ 2.50
11
0110708208
ref: 11
BOLT
0110708208
€ 3.00
12
0832121088
ref: 12
LOCK WASHER
0832121088
€ 2.00
13
0832211088
ref: 13
WASHER
0832211088
€ 2.00
14
4361003001
ref: 14
BAR,FOOTREST RUBBER
4361003001
€ 5.50
15
4361203001
ref: 15
RUBBER,PILLION FOOTREST
4361203001
€ 3.50
16
0916019006
ref: 16
WASHER (19.5X32X2)
0916019006
€ 2.00
17
0920006010
ref: 17
PIN
0920006010
€ 2.50
18
0411120208
ref: 18
PIN 20X20
0411120208
€ 1.50
