WIRING HARNESS

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

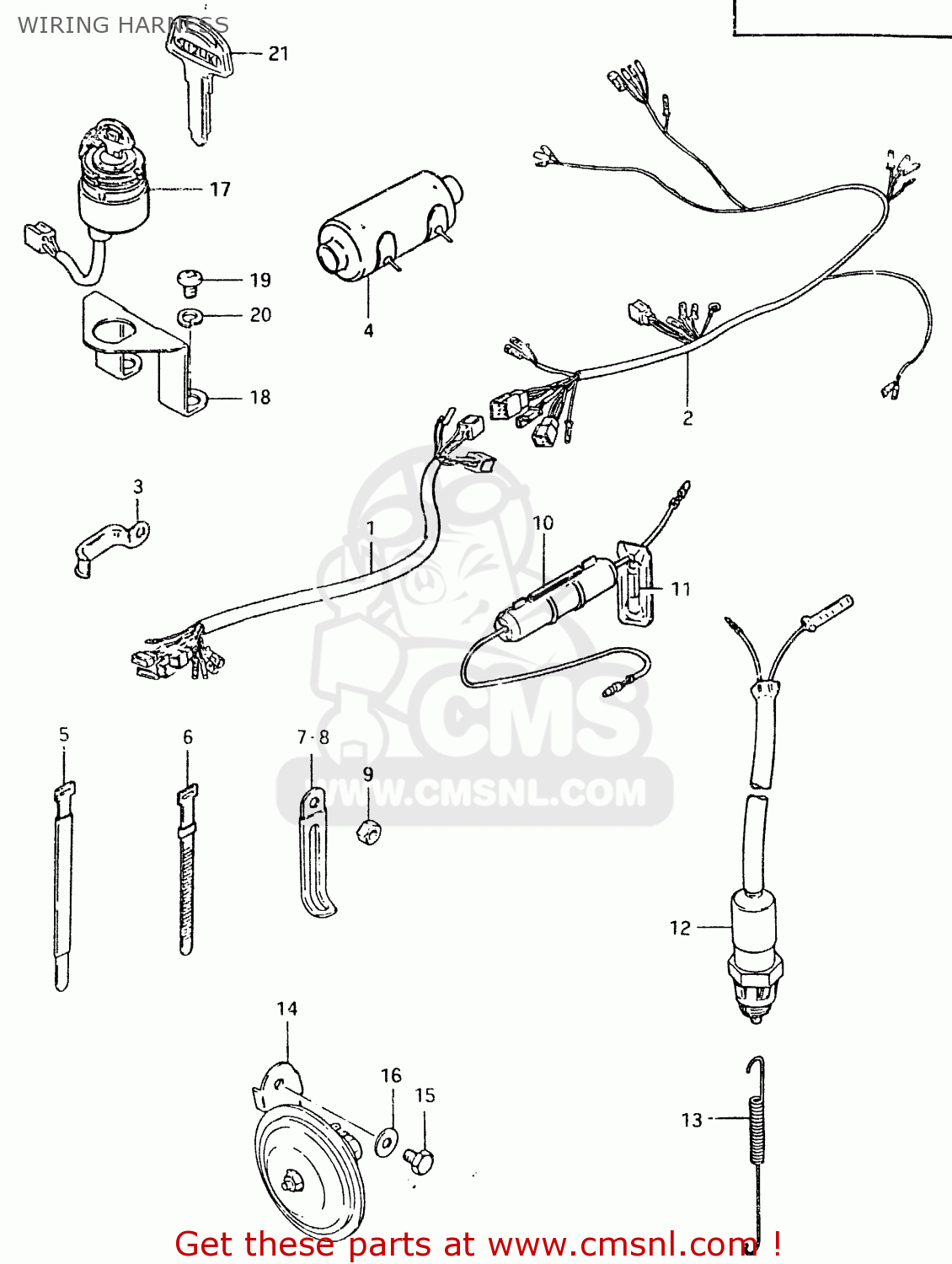

Wiring harness diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

WIRING HARNESS TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
WIRING HARNESS TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
WIRING HARNESS TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
3661048500
ref: 1
WIRING HARNESS NO.1
€ 123.00
1
3661048510
ref: 1
E16
HARNESS,WIRING
€ 123.00
1
3661048521
ref: 1
E17
WIRING HARNESS NO.1
€ 0.00
1
3661048530
ref: 1
E24,E26
WIRING HARNESS NO.1
3661048530
€ 123.00
2
3662048500
ref: 2
MODEL T
WIRING HARNESS NO.2
3662048500
€ 160.50
2
3662048560
ref: 2
MODEL X
WIRING HARNESS NO.2
€ 0.00
2
3662048520
ref: 2
E2,E4,E10,E15,E18,E2
WIRING HARNESS NO.2
€ 86.50
2
3662048500
ref: 2
E8
WIRING HARNESS NO.2
3662048500
€ 160.50
2
3662048570
ref: 2
E16
WIRING HARNESS NO.2
€ 0.00
2
3662048531
ref: 2
E17
WIRING HARNESS NO.2
€ 0.00
3
0940309307
ref: 3
CLAMP
0940309307
€ 2.50
4
3661830610
ref: 4
BOOT,WIRING HARNESS
3661830610
€ 9.50
5
0940711302
ref: 5
CLAMP
€ 6.00
5
0940718301
ref: 5
CLAMP
0940718301
€ 6.00
5
0940725301
ref: 5
CLAMP(L:250)
0940725301
€ 4.50
6
0940712402
ref: 6
CLAMP(L:120)
0940712402
€ 3.00
7
0940406412
ref: 7
CLAMP
0940406412
€ 2.50
8
0940406414
ref: 8
CLAMP
€ 3.00
9
0831011068
ref: 9
NUT
0831011068
€ 2.50
10
3674035011
ref: 10
BOX ASSEMBLY,FUSE
3674035011
€ 11.00
11
0948110001
ref: 11
FUSE(10A)
0948110001
€ 2.00
12
3774004570
ref: 12
MODEL T,TO 37740-045
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
12
3774004571
ref: 12
MODEL X
SWITCH ASSEMBLY,STOP LAMP
€ 22.00
13
0944306033
ref: 13
SPRING
0944306033
€ 3.00
14
3850048580
ref: 14
HORN ASSEMBLY
€ 39.00
15
0110706108
ref: 15
BOLT
€ 2.00
16
0832221068
ref: 16
WASHER
0832221068
€ 2.00
17
3711048500
ref: 17
SWITCH ASSEMBLY,IGNITION
€ 64.00
17
3711048510
ref: 17
E2,E4,E15,E18,E21,E2
SWITCH ASSY, IGNITION
3711048510
€ 70.00
17
3711048520
ref: 17
E17
SWITCH ASSY, IGNITION
€ 69.00
18
3711548501
ref: 18
BRACKET,IGNITION SWITCH
3711548501
€ 7.50
19
0211206108
ref: 19
SCREW
0211206108
€ 1.50
20
0832121068
ref: 20
LOCK WASHER
0832121068
€ 2.50
21
3714519710
ref: 21
OPT
KEY,BLANK
3714519710
€ 13.00
