TURN SIGNAL LAMP (E26)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

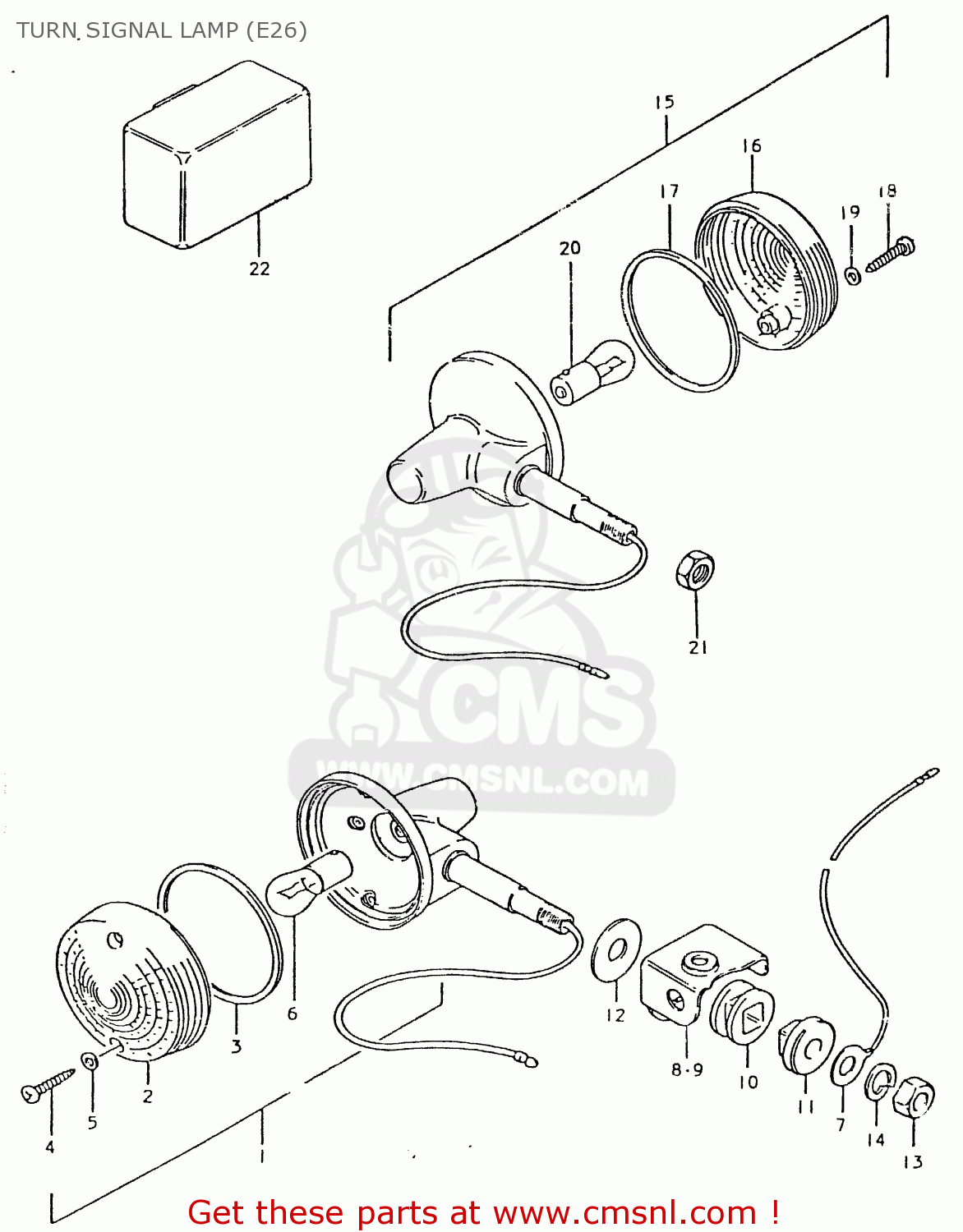

Turn signal lamp (e26) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

TURN SIGNAL LAMP (E26) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
TURN SIGNAL LAMP (E26) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
TURN SIGNAL LAMP (E26) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
3560348601999
ref: 1
LAMP ASSY,RR TURNSIGNAL
3560348601999
€ 55.00
2
3561228420
ref: 2
LENS
3561228420
€ 10.50
3
3561328620
ref: 3
GASKET (NAS)
3561328620
€ 7.00
4
0321104208
ref: 4
FROM 35623-47610
SCREW
0321104208
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947106023
ref: 6
BULB(6V/10W,STANLEY,A4117)
0947106023
€ 4.00
7
3666033000
ref: 7
LEAD WIRE,EARTH
3666033000
€ 5.00
8
5125130901291
ref: 8
MODEL T, TO 51251-30
BRACKET, FRONT RH
5125130901291
€ 10.50
8
5125130902291
ref: 8
MODEL X
BRACKET,TURNSIGNAL LAMP,R
5125130902291
€ 10.50
9
5125230901291
ref: 9
MODEL T, TO 51252-30
BRACKET, FRONT LH
5125230901291
€ 10.50
9
5125230902291
ref: 9
MODEL X
BRACKET,TURNSIGNAL LAMP,L
5125230902291
€ 10.50
10
3569032200
ref: 10
CUSHION
3569032200
€ 38.50
11
3569532200
ref: 11
SPACER,RR TURNSIGNAL LAMP
3569532200
€ 42.00
12
0916010006
ref: 12
WASHER (10.5X30X2.3)
0916010006
€ 2.50
13
0831011108
ref: 13
NUT
0831011108
€ 2.50
14
0832121108
ref: 14
LOCK WASHER
0832121108
€ 2.00
15
3560348560
ref: 15
LAMP ASSY,RR TURNSIGNAL
3560348560
€ 58.00
16
3561228420
ref: 16
LENS
3561228420
€ 10.50
17
3561328620
ref: 17
GASKET (NAS)
3561328620
€ 7.00
18
0321104208
ref: 18
FROM 35623-47610
SCREW
0321104208
€ 1.50
19
3562743010
ref: 19
GASKET (NAS)
3562743010
€ 2.00
20
0947106023
ref: 20
BULB(6V/10W,STANLEY,A4117)
0947106023
€ 4.00
21
0831022108
ref: 21
NUT
0831022108
€ 2.50
22
3861039121
ref: 22
RELAY, TURN SIGNAL
3861039121
€ 49.00
