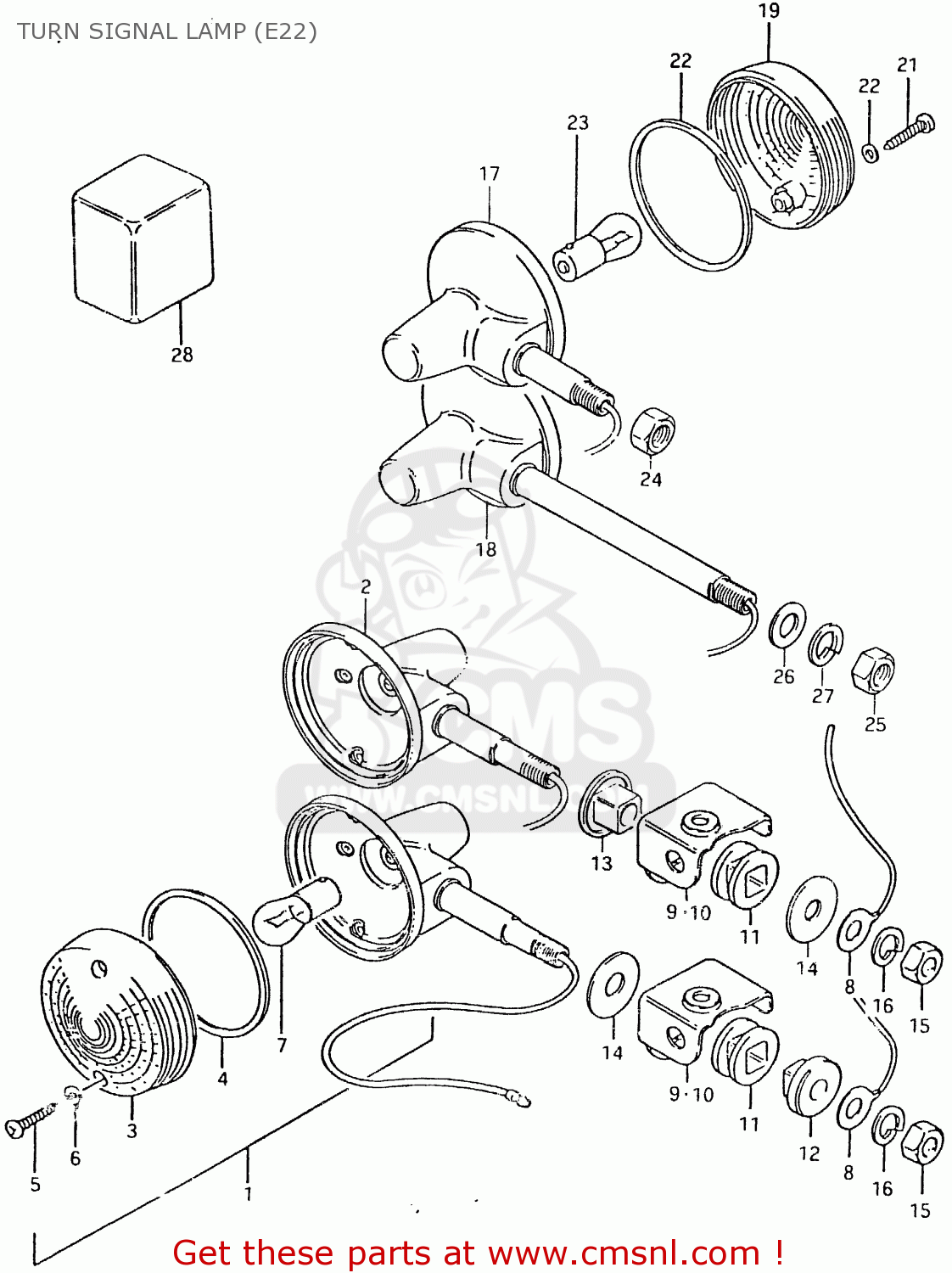

TURN SIGNAL LAMP (E22)

ref

part #

description

quantity

1

3560148590999
ref: 1
TO 35601-48591-999

LAMP, FRONT TURN SIGNAL

€ 69.00

2

3560148591999
ref: 2

LAMP ASSY,FR TURN SIGNAL

€ 69.00

3

3561228620
ref: 3

LENS

€ 10.50

4

3561328620
ref: 4

GASKET (NAS)

€ 7.00

5

0321104208
ref: 5
FROM 35623-47610

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0947106033
ref: 7
EXECUTED LOCALLY

BULB (6V,21W)

€ 0.00

8

3666033000
ref: 8

LEAD WIRE,EARTH

€ 5.00

9

5125130901291
ref: 9
MODEL T, TO 51251-30

BRACKET, FRONT RH

€ 10.50

9

5125130902291
ref: 9
MODEL X

BRACKET,TURNSIGNAL LAMP,R

€ 10.50

10

5125230901291
ref: 10
MODEL T, TO 51252-30

BRACKET, FRONT LH

€ 10.50

10

5125230902291
ref: 10
MODEL X

BRACKET,TURNSIGNAL LAMP,L

€ 10.50

11

3569032200
ref: 11

CUSHION

€ 38.50

12

3569532200
ref: 12

SPACER,RR TURNSIGNAL LAMP

€ 42.00

13

3569536590
ref: 13

SPACER

€ 6.00

14

0916010006
ref: 14

WASHER (10.5X30X2.3)

€ 2.50

15

0831011108
ref: 15

NUT

€ 2.50

16

0832121108
ref: 16

LOCK WASHER

€ 2.00

17

3560348590999
ref: 17

LAMP, REAR TURN SIGNAL

€ 61.50

18

3560348591999
ref: 18

LAMP, REAR TURN SIGNAL

€ 64.00

19

3561228620
ref: 19

LENS

€ 10.50

20

3561328620
ref: 20

GASKET (NAS)

€ 7.00

21

0321104208
ref: 21
FROM 35623-47610

SCREW

€ 1.50

22

3562743010
ref: 22

GASKET (NAS)

€ 2.00

23

0947106033
ref: 23
EXECUTED LOCALLY

BULB (6V,21W)

€ 0.00

24

0831022108
ref: 24

NUT

€ 2.50

25

0831011108
ref: 25

NUT

€ 2.50

26

0832211108
ref: 26

WASHER

€ 2.50

27

0832121108
ref: 27

LOCK WASHER

€ 2.00

28

3861048620
ref: 28

RELAY, TURN SIGNAL

€ 122.50

all assemblies
