REAR COMBINATION LAMP (E22)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

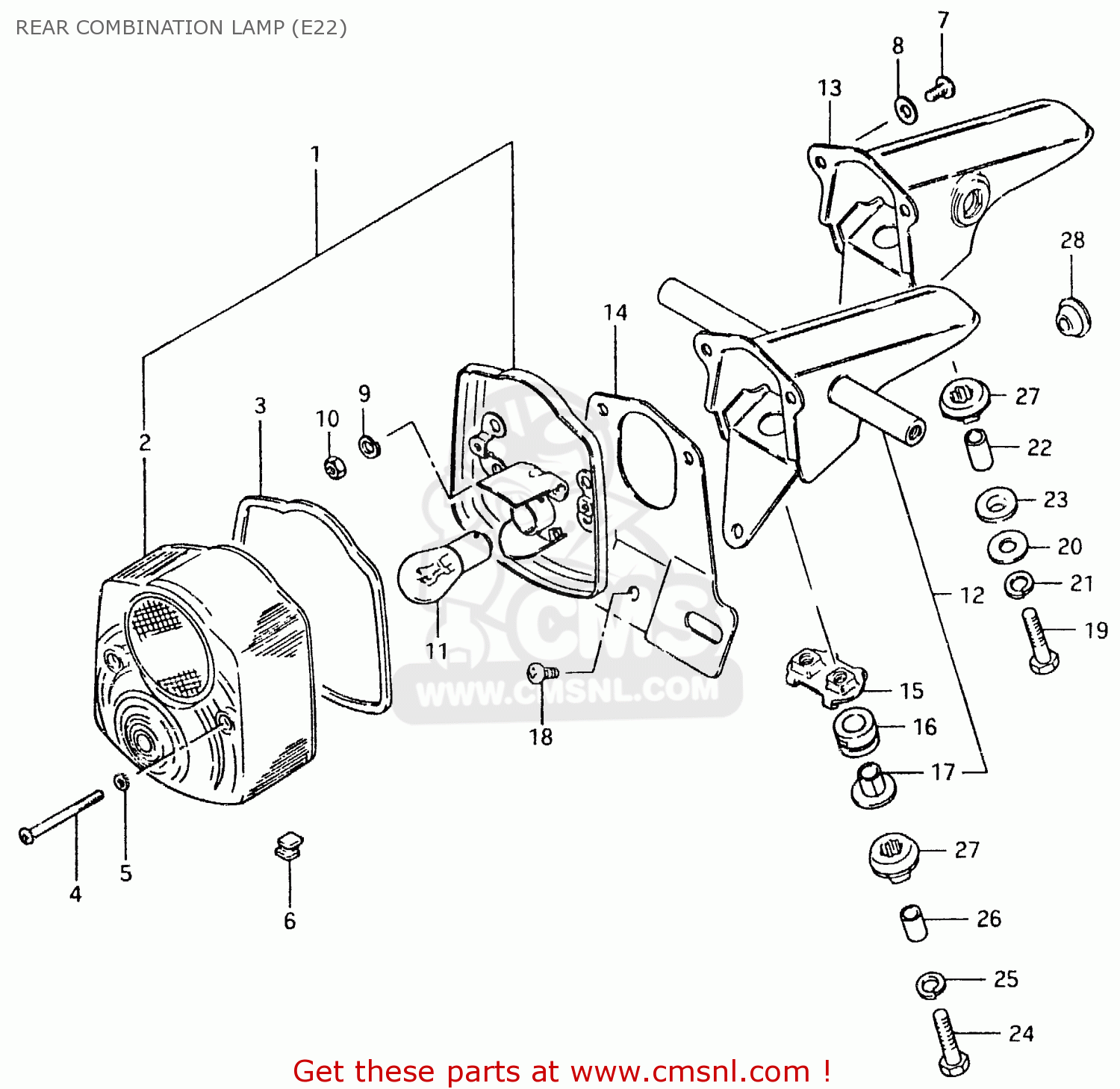

Rear combination lamp (e22) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

REAR COMBINATION LAMP (E22) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

REAR COMBINATION LAMP (E22) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

prices are in EUR

ref

part #

description

quantity

1

3572048590999
ref: 1

LAMP UNIT, TAIL

€ 0.00

2

3571239171
ref: 2

LENS

€ 38.50

3

3571346620
ref: 3

GASKET (NAS)

€ 8.00

4

3562335110
ref: 4

SCREW

€ 3.50

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

3572846630
ref: 6

GROMMET

€ 0.00

7

0211205128
ref: 7

SCREW

€ 2.50

8

0832221058
ref: 8

WASHER

€ 2.50

9

0832121058
ref: 9

LOCK WASHER

€ 2.00

10

0831011058
ref: 10

NUT

€ 2.50

11

0947106034
ref: 11
EXECUTED LOCALLY

BULB (6V,21/5W)

€ 0.00

12

3573048590
ref: 12

BRACKET ASSY

€ 116.00

13

3573048591
ref: 13

BRACKET ASSY

€ 73.50

14

3592748590
ref: 14

PLATE, LICENSE

€ 13.50

15

3571630950
ref: 15

PLATE

€ 10.50

16

3576530950
ref: 16

CUSHION

€ 18.00

17

3576630950
ref: 17

SPACER

€ 2.00

18

0214205087
ref: 18

SCREW

€ 2.00

19

0110706308
ref: 19

BOLT

€ 2.50

20

0916006027
ref: 20

WASHER (6.5X20X1.2)

€ 2.00

21

0832121068
ref: 21

LOCK WASHER

€ 2.50

22

0918006072
ref: 22

SPACER

€ 2.00

23

0932109003
ref: 23

CUSHION

€ 4.00

24

0110706408
ref: 24

BOLT 6X40

€ 2.00

25

0832121068
ref: 25

LOCK WASHER

€ 2.50

26

0918006006
ref: 26

SPACER (6.8X10X11.5)

€ 3.00

27

0932009010
ref: 27

CUSHION

€ 2.50

28

0930807004
ref: 28

GROMMET

€ 2.50
