FRAME COVER (TS125ERT E18, E22, E24)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

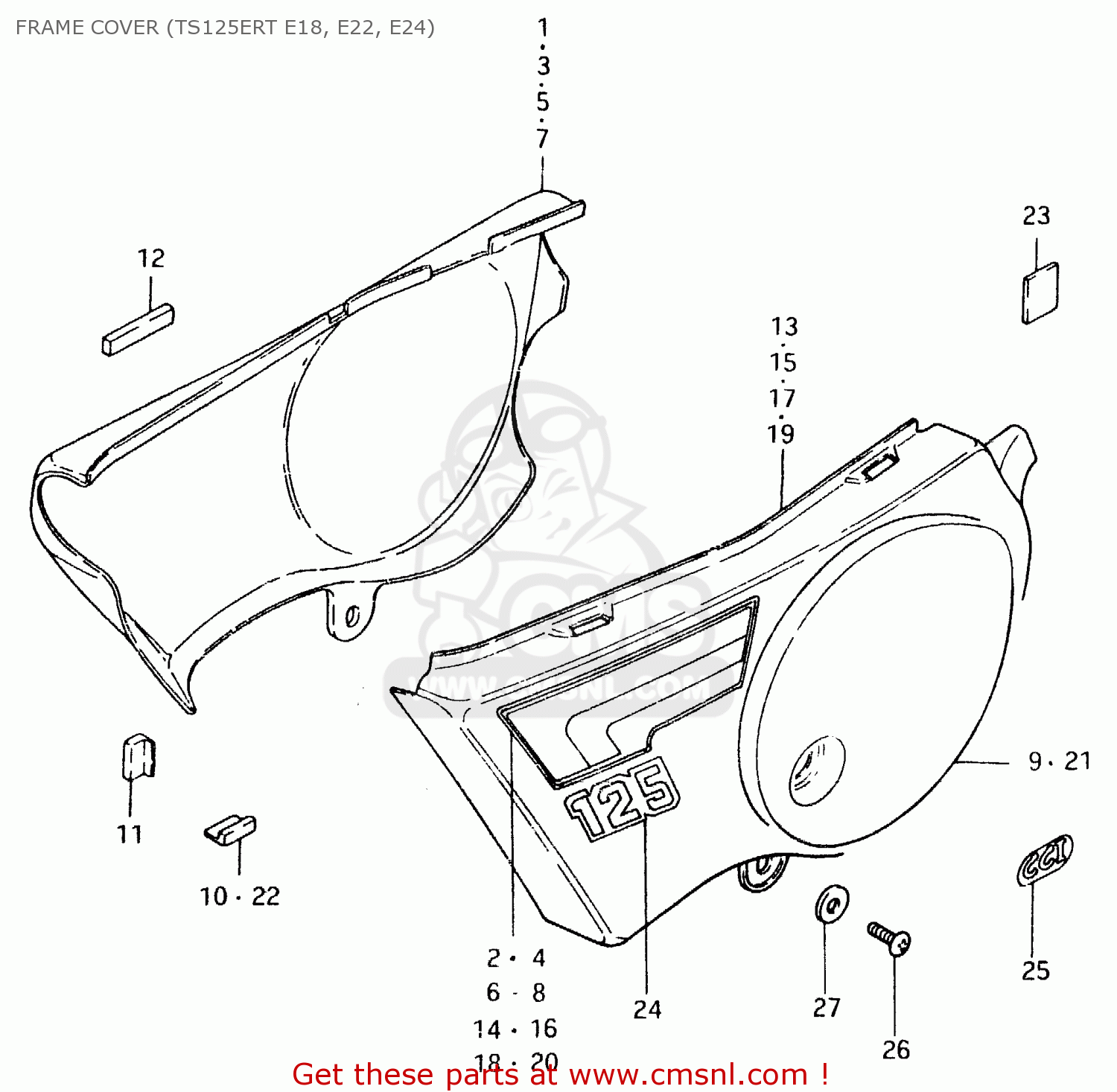

Frame cover (ts125ert e18, e22, e24) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

FRAME COVER (TS125ERT E18, E22, E24) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
FRAME COVER (TS125ERT E18, E22, E24) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
FRAME COVER (TS125ERT E18, E22, E24) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
471114850007P
ref: 1
COVER, FRAME RH (RED)
€ 50.00
2
681364852069F
ref: 2
TAPE, RH
€ 0.00
3
4711148500189
ref: 3
COVER, FRAME RH (WHITE)
€ 50.00
4
681364852067H
ref: 4
TAPE, RH
€ 0.00
5
471114850005K
ref: 5
COVER, FRAME RH (BLUE)
€ 50.00
6
681364852069G
ref: 6
TAPE, RH
€ 0.00
7
4711148500163
ref: 7
COVER, FRAME RH (YELLOW)
€ 50.00
8
681364852067H
ref: 8
TAPE, RH
€ 0.00
9
6813148541
ref: 9
EMBLEM, RH
€ 0.00
10
4711745000
ref: 10
CUSHION,FRAME COVER
4711745000
€ 1.50
11
4711702400
ref: 11
CUSHION,FRAME COVER
4711702400
€ 2.00
12
4711746400
ref: 12
CUSHION,FRAME COVER
4711746400
€ 1.50
13
472114850007P
ref: 13
COVER, FRAME LH (RED)
472114850007P
€ 73.00
14
681384852069F
ref: 14
TAPE, LH
€ 0.00
15
4721148500189
ref: 15
COVER, FRAME LH (WHITE)
4721148500189
€ 73.00
16
681384852067H
ref: 16
TAPE, LH
€ 0.00
17
472114850005K
ref: 17
COVER, FRAME LH (BLUE)
472114850005K
€ 73.00
18
681384852069G
ref: 18
TAPE, LH
€ 0.00
19
4721148500163
ref: 19
COVER, FRAME LH (YELLOW)
€ 73.00
20
681384852067H
ref: 20
TAPE, LH
€ 0.00
21
6814148541
ref: 21
EMBLEM, LH
€ 0.00
22
4711745000
ref: 22
CUSHION,FRAME COVER
4711745000
€ 1.50
23
3365137000
ref: 23
PROTECTOR(170X95X3.0)
3365137000
€ 5.00
24
6813140210538
ref: 24
EMBLEM, "125"
€ 0.00
25
6817126000
ref: 25
EMBLEM,CCIS
6817126000
€ 4.00
26
0214206127
ref: 26
SCREW 6X12
0214206127
€ 1.50
27
0916006007
ref: 27
WASHER
0916006007
€ 2.00
