REAR COMBINATION LAMP (E16)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

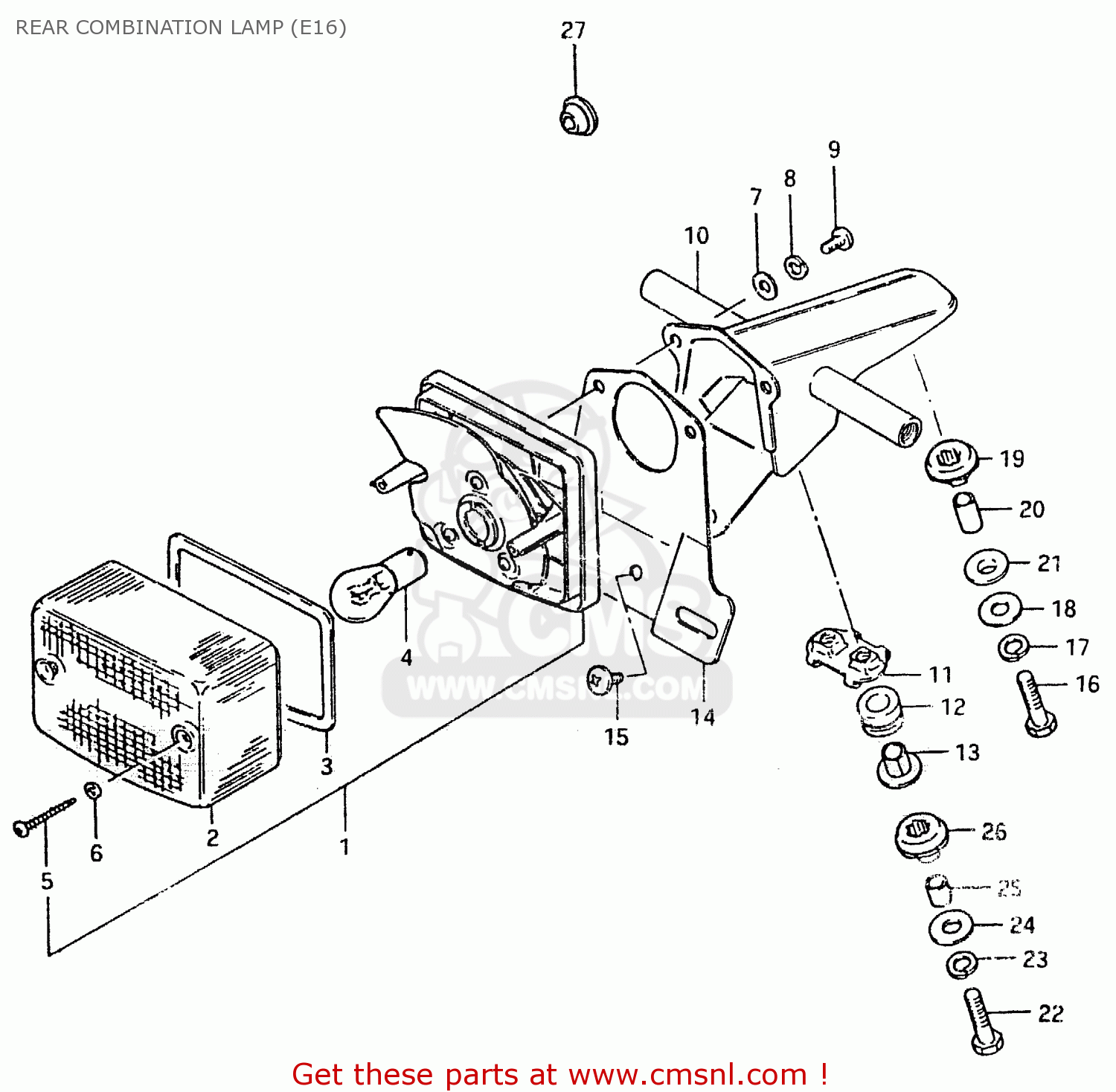

Rear combination lamp (e16) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

REAR COMBINATION LAMP (E16) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
REAR COMBINATION LAMP (E16) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
REAR COMBINATION LAMP (E16) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
3572030960
ref: 1
LAMP UNIT, TAIL
€ 86.50
2
3571248523
ref: 2
LENS
3571248523
€ 26.00
3
3571348510
ref: 3
GASKET (NAS)
3571348510
€ 8.50
4
0947106042
ref: 4
BULB (6V,21/5W)
€ 12.50
5
0321104308
ref: 5
SCREW
0321104308
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0832221058
ref: 7
WASHER
€ 2.50
8
0832121058
ref: 8
LOCK WASHER
0832121058
€ 2.00
9
0211205128
ref: 9
SCREW
€ 2.50
10
3573048590
ref: 10
BRACKET ASSY
3573048590
€ 116.00
11
3571630950
ref: 11
PLATE
3571630950
€ 10.50
12
3576530950
ref: 12
CUSHION
3576530950
€ 18.00
13
3576630950
ref: 13
SPACER
3576630950
€ 2.00
14
3592748590
ref: 14
PLATE, LICENSE
3592748590
€ 13.50
15
0214205087
ref: 15
SCREW
0214205087
€ 2.00
16
0110706308
ref: 16
BOLT
0110706308
€ 2.50
17
0832121068
ref: 17
LOCK WASHER
0832121068
€ 2.50
18
0916006027
ref: 18
WASHER (6.5X20X1.2)
0916006027
€ 2.00
19
0932009010
ref: 19
CUSHION
0932009010
€ 2.50
20
0918006072
ref: 20
SPACER
0918006072
€ 2.00
21
0932009003
ref: 21
CUSHION
0932009003
€ 2.00
22
0110706408
ref: 22
BOLT 6X40
0110706408
€ 2.00
23
0832121068
ref: 23
LOCK WASHER
0832121068
€ 2.50
24
0916006027
ref: 24
WASHER (6.5X20X1.2)
0916006027
€ 2.00
25
0918006006
ref: 25
SPACER (6.8X10X11.5)
0918006006
€ 3.00
26
0932009010
ref: 26
CUSHION
0932009010
€ 2.50
27
0930807004
ref: 27
GROMMET
0930807004
€ 2.50
