Buy Suzuki TS Parts Online


CRANKCASE

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

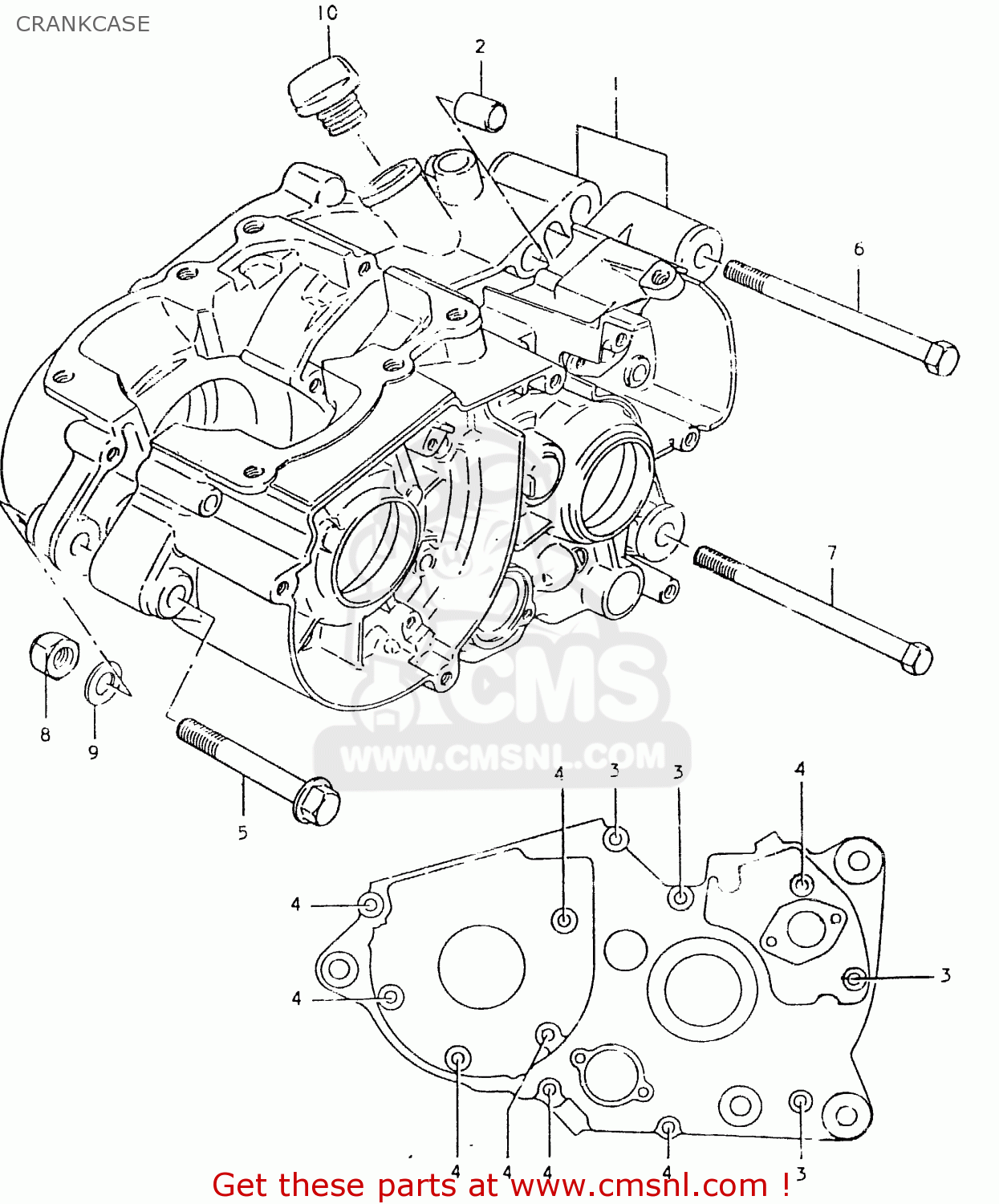

Crankcase diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

CRANKCASE TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
CRANKCASE TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
CRANKCASE TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
1130048812
ref: 1
CRANKCASE ASSEMBLY
1130048812
€ 497.00
2
0920613001
ref: 2
PIN
0920613001
€ 2.50
3
0211206508
ref: 3
SCREW
0211206508
€ 2.50
4
0211206608
ref: 4
SCREW 6X60
0211206608
€ 2.50
5
0151710758
ref: 5
BOLT (10X75)
€ 4.50
6
0910010009
ref: 6
BOLT(10X110)
0910010009
€ 3.50
7
0910010016
ref: 7
BOLT
0910010016
€ 3.00
8
0915910011
ref: 8
NUT
0915910011
€ 3.00
9
0832211108
ref: 9
WASHER
€ 2.50
10
0925919001
ref: 10
PLUG
0925919001
€ 6.00
