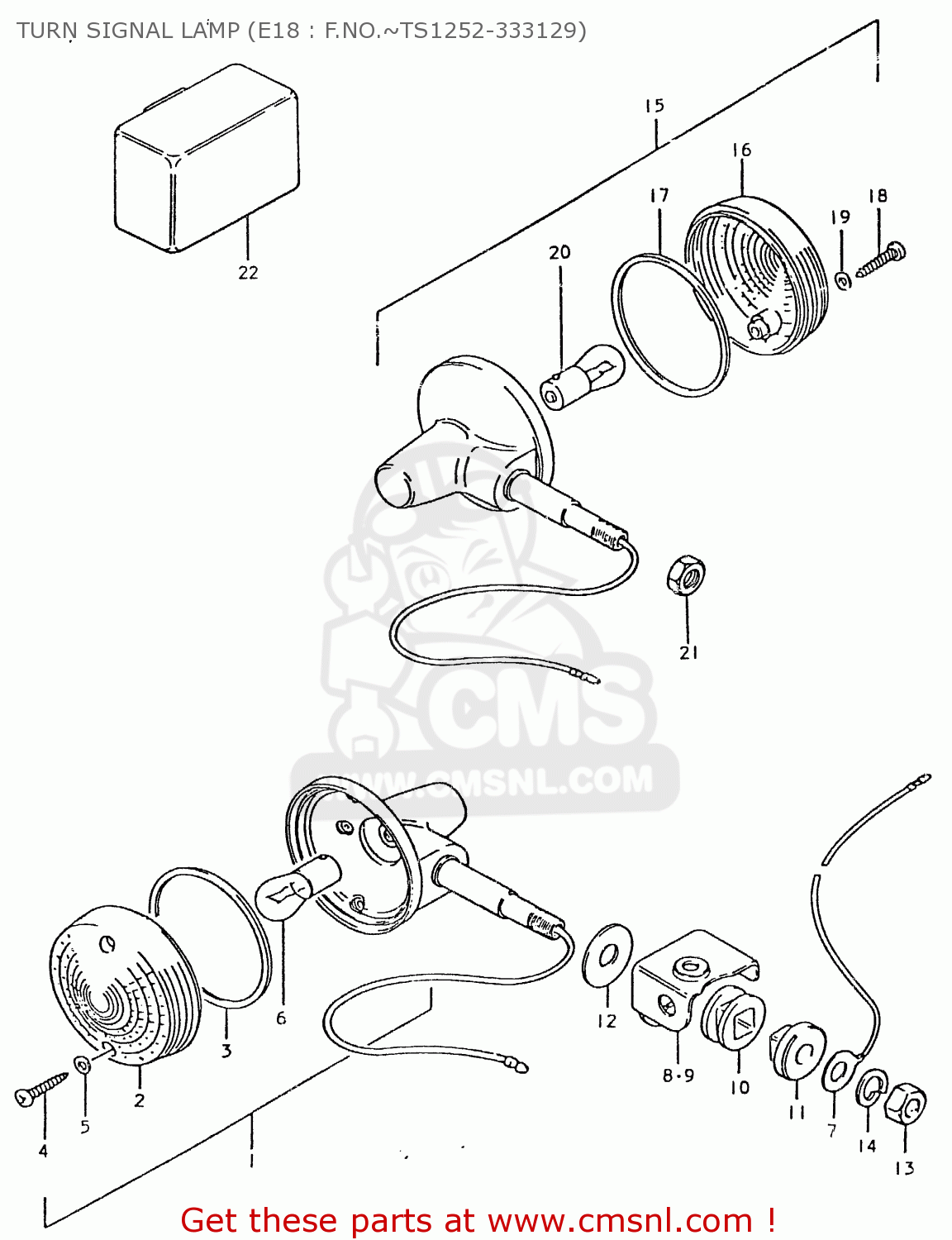

TURN SIGNAL LAMP (E18 : F.NO.~TS1252-333129)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

Turn signal lamp (e18 : f.no.~ts1252-333129) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

prices are in EUR

ref

part #

description

quantity

3560148580999
ref: 1
TO 35601-48591-999

LAMP, FRONT TURN SIGANL

€ 69.00

3561228620
ref: 2

LENS

€ 10.50

3561328620
ref: 3

GASKET (NAS)

€ 7.00

0321104208
ref: 4
FROM 35623-47610

SCREW

€ 1.50

3562743010
ref: 5

GASKET (NAS)

€ 2.00

0947106041
ref: 6

BULB (6V,21W)

€ 3.50

3666033000
ref: 7

LEAD WIRE,EARTH

€ 5.00

5125130901291
ref: 8
MODEL T, TO 51251-30

BRACKET, FRONT RH

€ 10.50

5125130902291
ref: 8
MODEL X

BRACKET,TURNSIGNAL LAMP,R

€ 10.50

5125230901291
ref: 9
MODEL T, TO 51252-30

BRACKET, FRONT LH

€ 10.50

5125230902291
ref: 9
MODEL X

BRACKET,TURNSIGNAL LAMP,L

€ 10.50

3569032200
ref: 10

CUSHION

€ 38.50

3569532200
ref: 11

SPACER,RR TURNSIGNAL LAMP

€ 42.00

0916010006
ref: 12

WASHER (10.5X30X2.3)

€ 2.50

0831011108
ref: 13

NUT

€ 2.50

0832121108
ref: 14

LOCK WASHER

€ 2.00

3560348580999
ref: 15

LAMP, REAR TURN SIGNAL

€ 27.00

3565239181
ref: 16

LENS

€ 0.00

3561328620
ref: 17

GASKET (NAS)

€ 7.00

0321104208
ref: 18
FROM 35623-47610

SCREW

€ 1.50

3562743010
ref: 19

GASKET (NAS)

€ 2.00

0947106041
ref: 20

BULB (6V,21W)

€ 3.50

0831022108
ref: 21

NUT

€ 2.50

3861048611
ref: 22

RELAY, TURN SIGNAL

€ 51.50

TURN SIGNAL LAMP (E18 : F.NO.~TS1252-333129)

all assemblies
