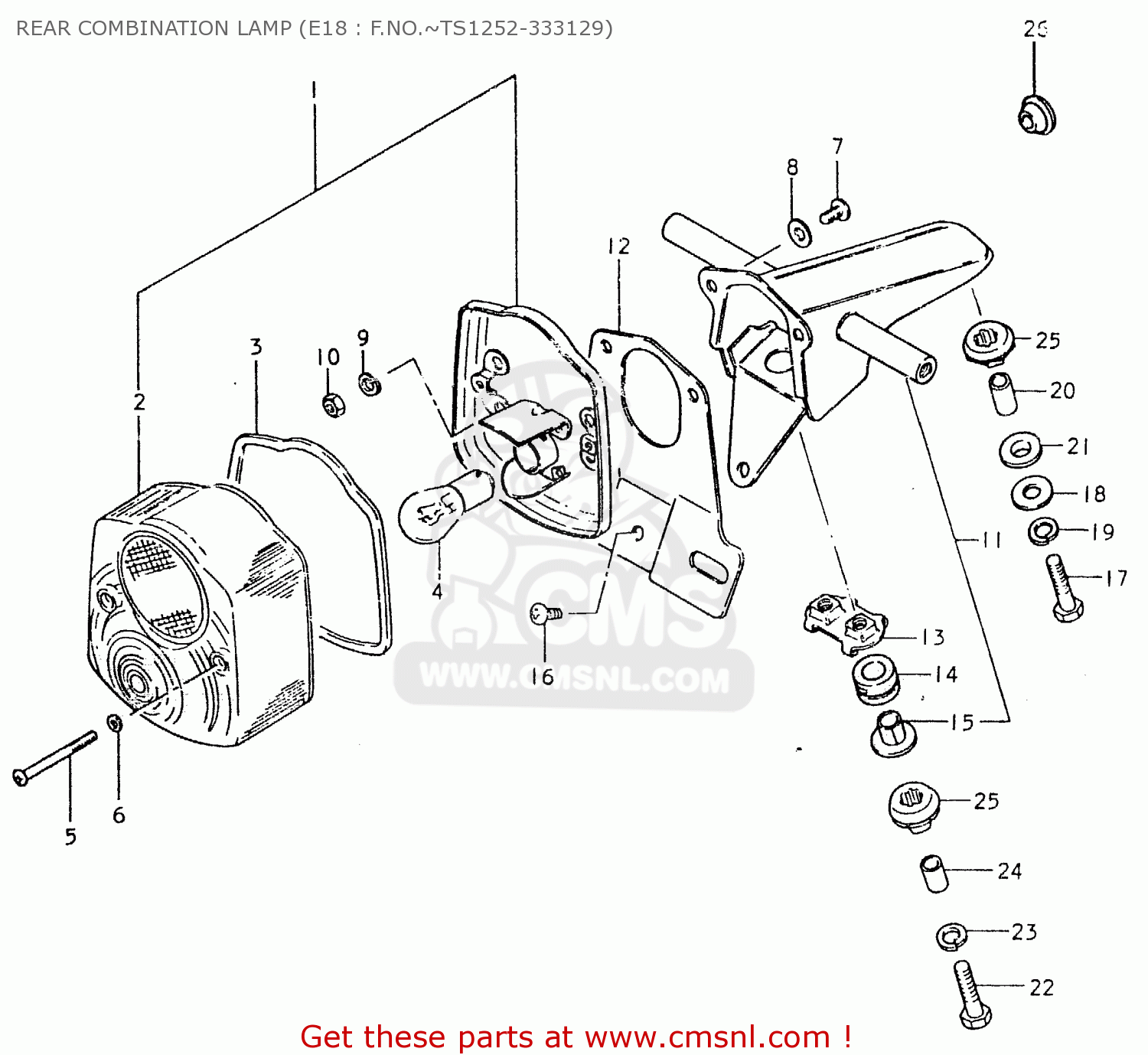

REAR COMBINATION LAMP (E18 : F.NO.~TS1252-333129)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

Rear combination lamp (e18 : f.no.~ts1252-333129) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

prices are in EUR

ref

part #

description

quantity

3572048580
ref: 1

LAMP UNIT, TAIL

€ 44.50

3571246622
ref: 2

LENS

€ 39.00

3571346620
ref: 3

GASKET (NAS)

€ 8.00

0947106042
ref: 4

BULB (6V,21/5W)

€ 12.50

3562335110
ref: 5

SCREW

€ 3.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0211205128
ref: 7

SCREW

€ 2.50

0832221058
ref: 8

WASHER

€ 2.50

0832121058
ref: 9

LOCK WASHER

€ 2.00

0831011058
ref: 10

NUT

€ 2.50

3573048590
ref: 11

BRACKET ASSY

€ 116.00

3592748590
ref: 12

PLATE, LICENSE

€ 13.50

3571630950
ref: 13

PLATE

€ 10.50

3576530950
ref: 14

CUSHION

€ 18.00

3576630950
ref: 15

SPACER

€ 2.00

0214205087
ref: 16

SCREW

€ 2.00

0110706308
ref: 17

BOLT

€ 2.50

0916006027
ref: 18

WASHER (6.5X20X1.2)

€ 2.00

0832121068
ref: 19

LOCK WASHER

€ 2.50

0918006072
ref: 20

SPACER

€ 2.00

0932009003
ref: 21

CUSHION

€ 2.00

0110706408
ref: 22

BOLT 6X40

€ 2.00

0832121068
ref: 23

LOCK WASHER

€ 2.50

0918006006
ref: 24

SPACER (6.8X10X11.5)

€ 3.00

0932009010
ref: 25

CUSHION

€ 2.50

0930807004
ref: 26

GROMMET

€ 2.50
