REAR COMBINATION LAMP (E18 : F.NO.TS1252-333130~)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

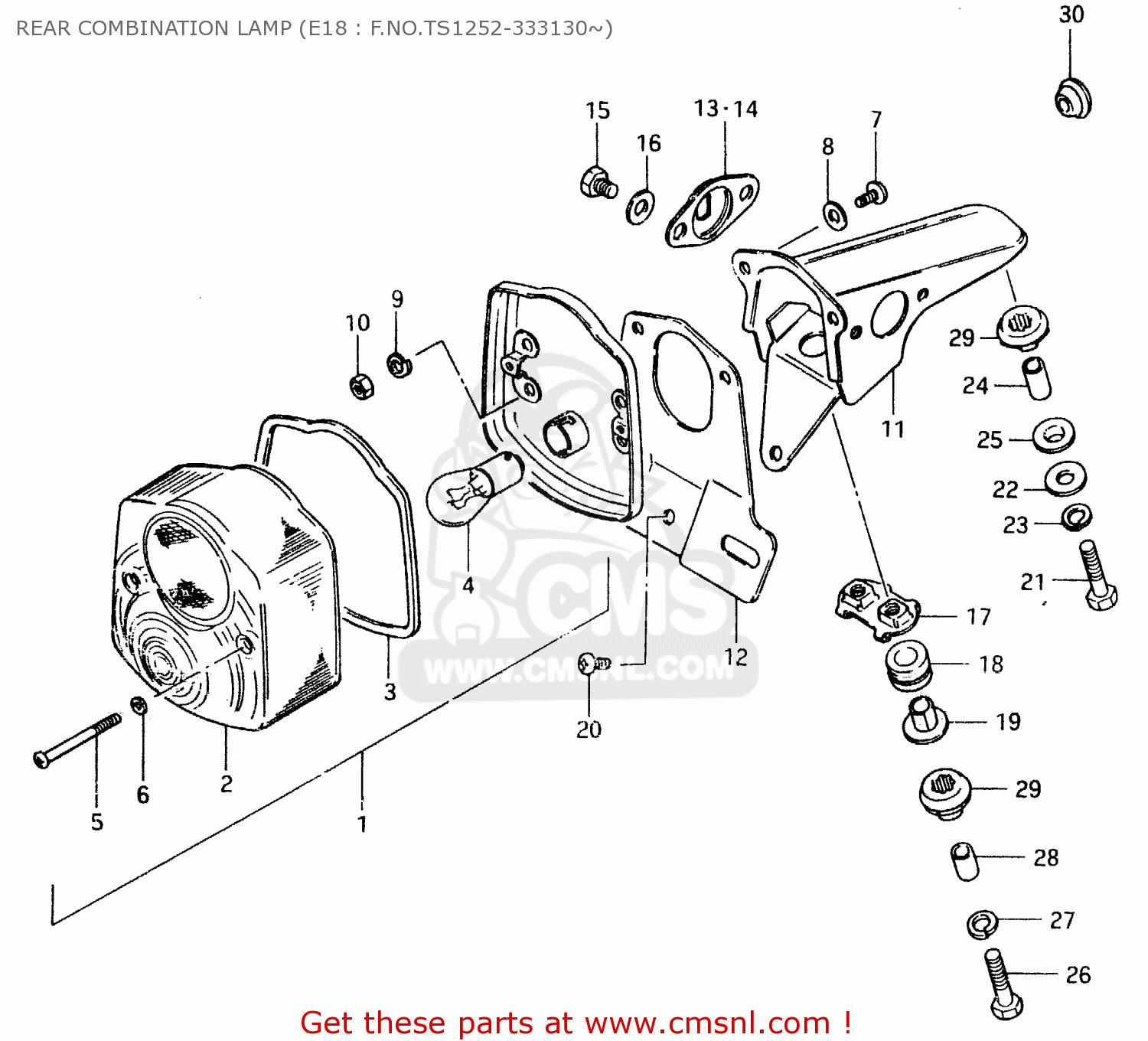

Rear combination lamp (e18 : f.no.ts1252-333130~) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

prices are in EUR

ref

part #

description

quantity

3572048550
ref: 1

LAMP UNIT, TAIL

€ 0.00

3571246623
ref: 2

LENS,RR COMBI

€ 39.00

3571346620
ref: 3

GASKET (NAS)

€ 8.00

0947106042
ref: 4

BULB (6V,21/5W)

€ 12.50

3562335110
ref: 5

SCREW

€ 3.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0211205128
ref: 7

SCREW

€ 2.50

0832221058
ref: 8

WASHER

€ 2.50

0832121058
ref: 9

LOCK WASHER

€ 2.00

0831011058
ref: 10

NUT

€ 2.50

3573048551
ref: 11

BRACKET ASSY

€ 0.00

3592748590
ref: 12

PLATE, LICENSE

€ 13.50

3571648551
ref: 13

PLATE, RH

€ 9.00

3573648551
ref: 14

PLATE, LH

€ 8.50

0110706128
ref: 15

BOLT

€ 2.00

0832221068
ref: 16

WASHER

€ 2.00

3571630950
ref: 17

PLATE

€ 10.50

3576530950
ref: 18

CUSHION

€ 18.00

3576630950
ref: 19

SPACER

€ 2.00

0214205087
ref: 20

SCREW

€ 2.00

0110706308
ref: 21

BOLT

€ 2.50

0916006027
ref: 22

WASHER (6.5X20X1.2)

€ 2.00

0832121068
ref: 23

LOCK WASHER

€ 2.50

0918006072
ref: 24

SPACER

€ 2.00

0932009003
ref: 25

CUSHION

€ 2.00

0110706408
ref: 26

BOLT 6X40

€ 2.00

0832121068
ref: 27

LOCK WASHER

€ 2.50

0918006006
ref: 28

SPACER (6.8X10X11.5)

€ 3.00

0932009010
ref: 29

CUSHION

€ 2.50

0930807004
ref: 30

GROMMET

€ 2.50

REAR COMBINATION LAMP (E18 : F.NO.TS1252-333130~)

all assemblies
