FRONT FENDER

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

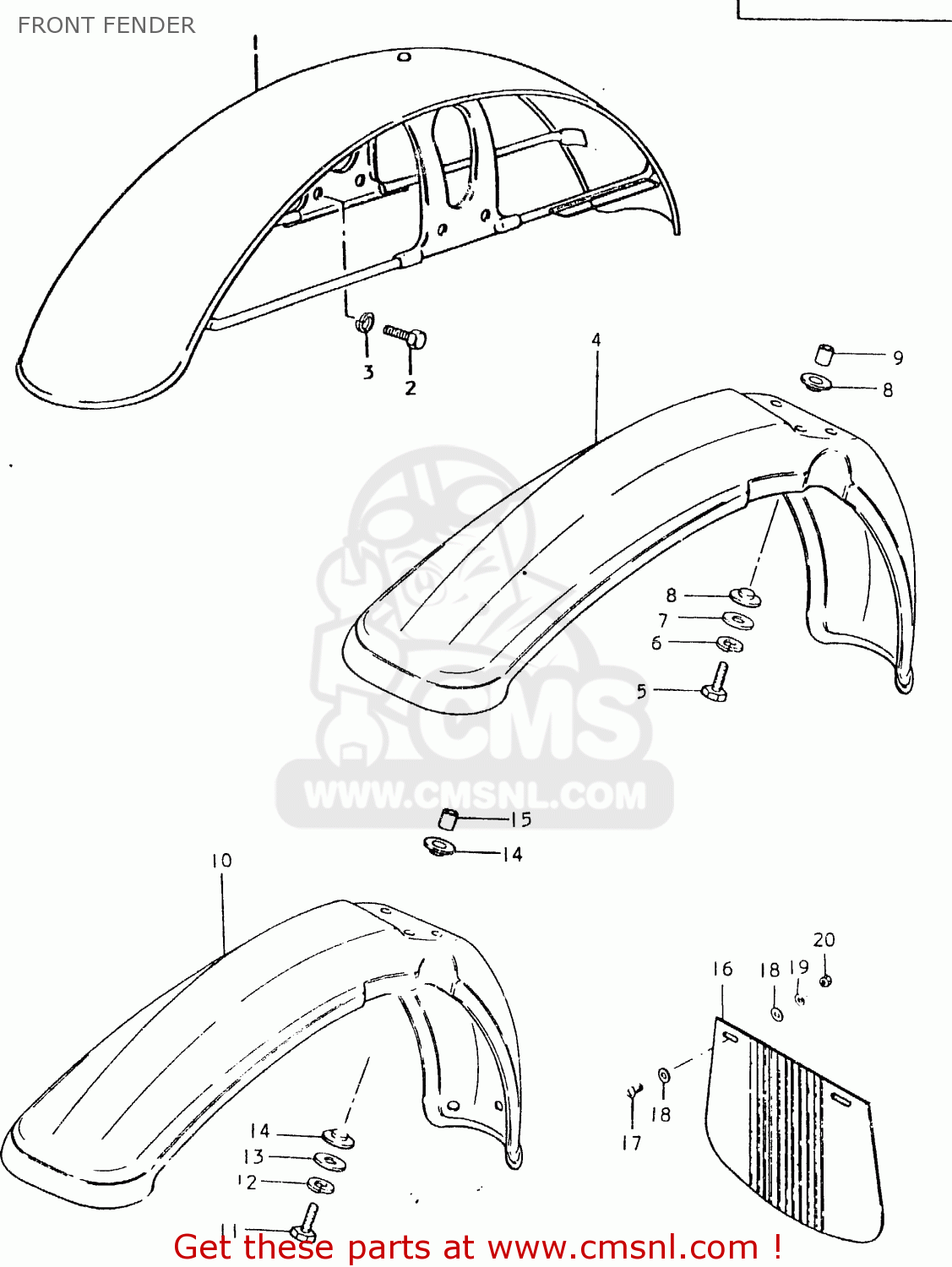

Front fender diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

FRONT FENDER TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
FRONT FENDER TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
FRONT FENDER TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
5311032401
ref: 1
FENDER,FR
€ 190.00
2
0110708168
ref: 2
BOLT
€ 2.00
3
0832121088
ref: 3
LOCK WASHER
0832121088
€ 2.00
4
531114850007P
ref: 4
FENDER, FRONT (RED)
€ 81.50
4
531114850008Y
ref: 4
FENDER,FR
531114850008Y
€ 82.00
4
5311148500189
ref: 4
FENDER, FRONT (WHITE)
€ 157.00
4
5311148500163
ref: 4
TS125ERX, TS125ERT (
FENDER,FR
5311148500163
€ 74.50
4
531114850005K
ref: 4
TS125ERT (E22,E24)
FENDER, FRONT (BLUE)
€ 157.00
5
0110706358
ref: 5
BOLT
0110706358
€ 2.50
6
0832121068
ref: 6
LOCK WASHER
0832121068
€ 2.50
7
0832221068
ref: 7
WASHER
0832221068
€ 2.00
8
0918006048
ref: 8
SPACER
0918006048
€ 2.00
9
0918006026
ref: 9
SPACER
0918006026
€ 3.50
10
531114851005K
ref: 10
TS125ERT E18
FENDER, FRONT (BLUE)
€ 0.00
10
531114851007P
ref: 10
TS125ERT E18, TS125E
FENDER, FRONT (RED)
€ 157.00
10
5311148510163
ref: 10
TS125ERT E18, TS125E
FENDER, FRONT (YELLOW)
5311148510163
€ 157.00
10
5311148510189
ref: 10
TS125ERT E18, TS125E
FENDER, FRONT (WHITE)
€ 157.00
10
531114851008Y
ref: 10
TS125ERX E18
FENDER, FRONT (BLUE)
€ 157.00
11
0110706358
ref: 11
TS125ERT E18, TS125E
BOLT
0110706358
€ 2.50
12
0832121068
ref: 12
TS125ERT E18, TS125E
LOCK WASHER
0832121068
€ 2.50
13
0832221068
ref: 13
TS125ERT E18, TS125E
WASHER
0832221068
€ 2.00
14
0918006048
ref: 14
TS125ERT E18, TS125E
SPACER
0918006048
€ 2.00
15
0918006026
ref: 15
TS125ERT E18, TS125E
SPACER
0918006026
€ 3.50
16
5331132400
ref: 16
TS125ERT E18, TS125E
MUD FLAP
5331132400
€ 10.00
17
0211205128
ref: 17
TS125ERT E18, TS125E
SCREW
€ 2.50
18
0832221058
ref: 18
TS125ERT E18, TS125E
WASHER
€ 2.50
19
0832121058
ref: 19
TS125ERT E18, TS125E
LOCK WASHER
0832121058
€ 2.00
20
0831011058
ref: 20
TS125ERT E18, TS125E
NUT
0831011058
€ 2.50
