HEADLAMP (E4)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

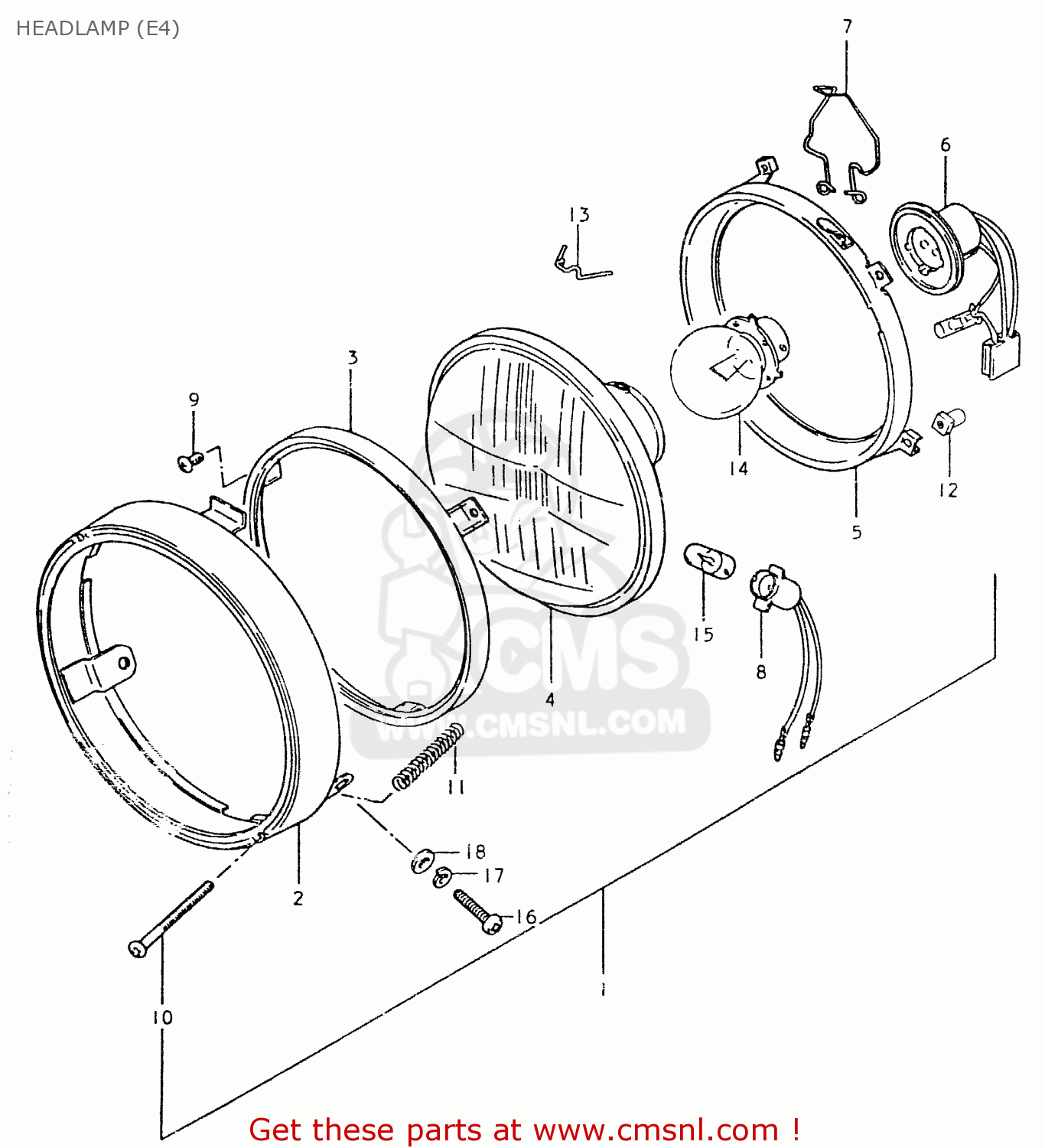

Headlamp (e4) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

HEADLAMP (E4) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
HEADLAMP (E4) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
HEADLAMP (E4) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
3510048540999
ref: 1
HEADLAMP ASSY
€ 0.00
2
3511148530
ref: 2
RIM
3511148530
€ 34.00
3
3512748530
ref: 3
RETAINER,HEADLAMP
3512748530
€ 13.00
4
3512127650
ref: 4
UNIT
€ 77.00
5
3513048540
ref: 5
RING, MOUNTING
3513048540
€ 18.00
6
3517136640
ref: 6
SOCKET
€ 0.00
7
3517228660
ref: 7
CLAMP,HEADLAMP
3517228660
€ 7.00
8
3611828660
ref: 8
SOCKET
3611828660
€ 11.50
9
0211204088
ref: 9
SCREW
€ 1.50
10
3515133611
ref: 10
SCREW,HEADLAMP ADJUST
3515133611
€ 4.00
11
3515431900
ref: 11
SPRING,ADJUSTING
3515431900
€ 3.50
12
3515248530
ref: 12
NUT,HEADLAMP ADJUSTER
3515248530
€ 2.00
13
3512848530
ref: 13
SPRING,HEADLAMP UNIT
3512848530
€ 3.50
14
0947106032
ref: 14
EXECUTED LOCALLY
BULB (6V,25/25W)
€ 0.00
15
0947106027
ref: 15
BULB(6V4W,STANLEY,A1364J)
0947106027
€ 4.50
16
0211205168
ref: 16
SCREW
0211205168
€ 2.50
17
0832121058
ref: 17
LOCK WASHER
0832121058
€ 2.00
18
0832221058
ref: 18
WASHER
€ 2.50
