TURN SIGNAL LAMP (E17)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

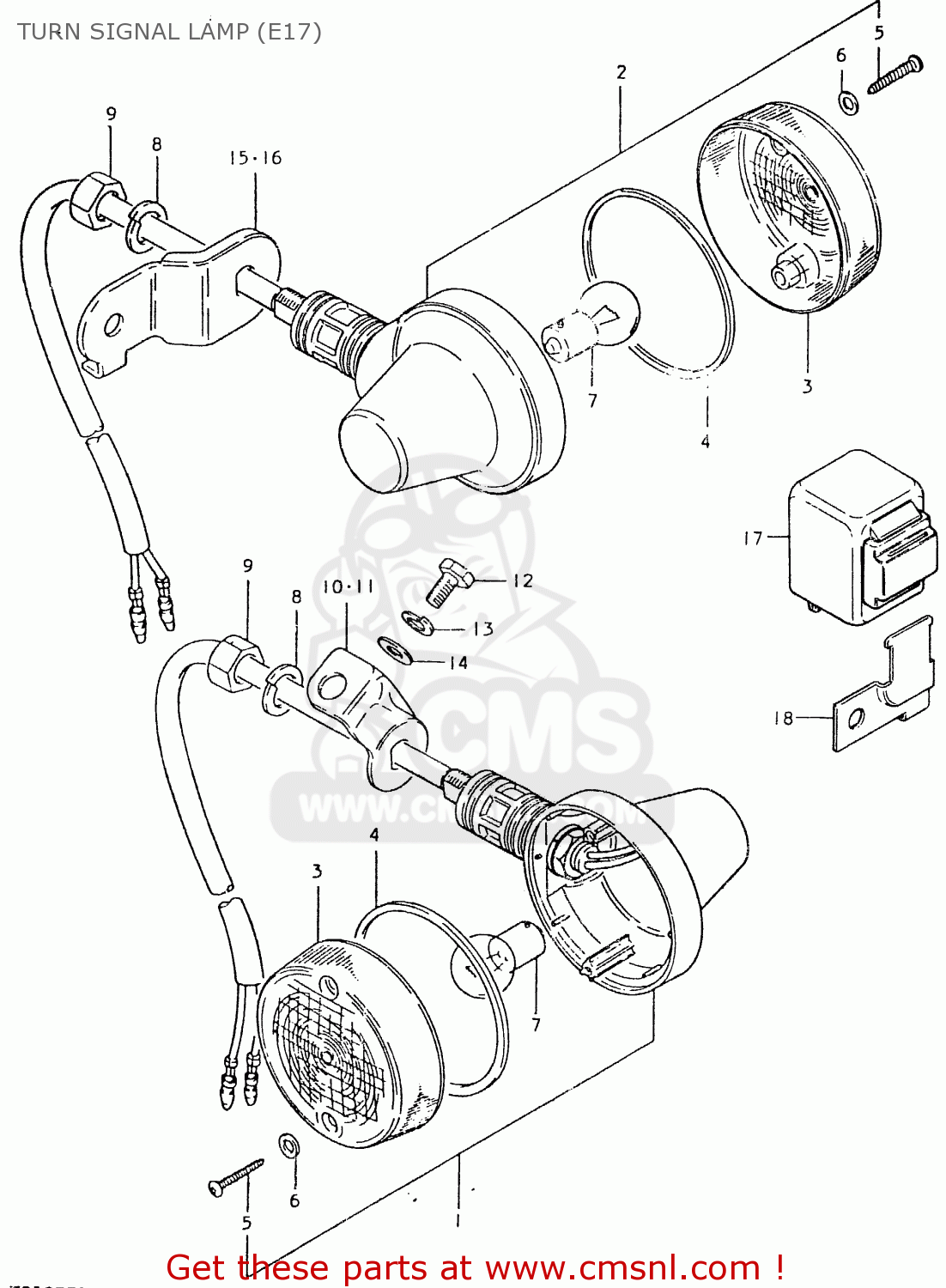

Turn signal lamp (e17) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

TURN SIGNAL LAMP (E17) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
TURN SIGNAL LAMP (E17) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
TURN SIGNAL LAMP (E17) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
3560148572
ref: 1
LAMP, FRONT TURN SIGNAL
€ 72.50
2
3560348572
ref: 2
LAMP, REAR TURN SIGNAL
€ 72.50
3
3561248530
ref: 3
LENS
3561248530
€ 7.50
4
3561328620
ref: 4
GASKET (NAS)
3561328620
€ 7.00
5
0321104258
ref: 5
SCREW TAPP.
0321104258
€ 2.00
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0947106041
ref: 7
BULB (6V,21W)
€ 3.50
8
0832121128
ref: 8
WASHER,LOCK 12
0832121128
€ 2.50
9
0831012128
ref: 9
NUT
0831012128
€ 3.00
10
5125129900291
ref: 10
BRACKET,TURNSIGNAL LAMP,R
5125129900291
€ 7.50
11
5125229900291
ref: 11
BRACKET,TURNSIGNAL LAMP,L
5125229900291
€ 7.50
12
0110706128
ref: 12
BOLT
0110706128
€ 2.00
13
0832121068
ref: 13
LOCK WASHER
0832121068
€ 2.50
14
0832221068
ref: 14
WASHER
0832221068
€ 2.00
15
4158048500
ref: 15
BRACKET,REAR TURN SIGNAL
4158048500
€ 14.00
16
4159048500
ref: 16
BRACKET,REAR TURN SIGNAL
4159048500
€ 14.50
17
3861037170
ref: 17
RELAY, TURN SIGNAL
€ 0.00
18
3862107500
ref: 18
BRACKET
€ 0.00
