REAR COMBINATION LAMP (E26)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

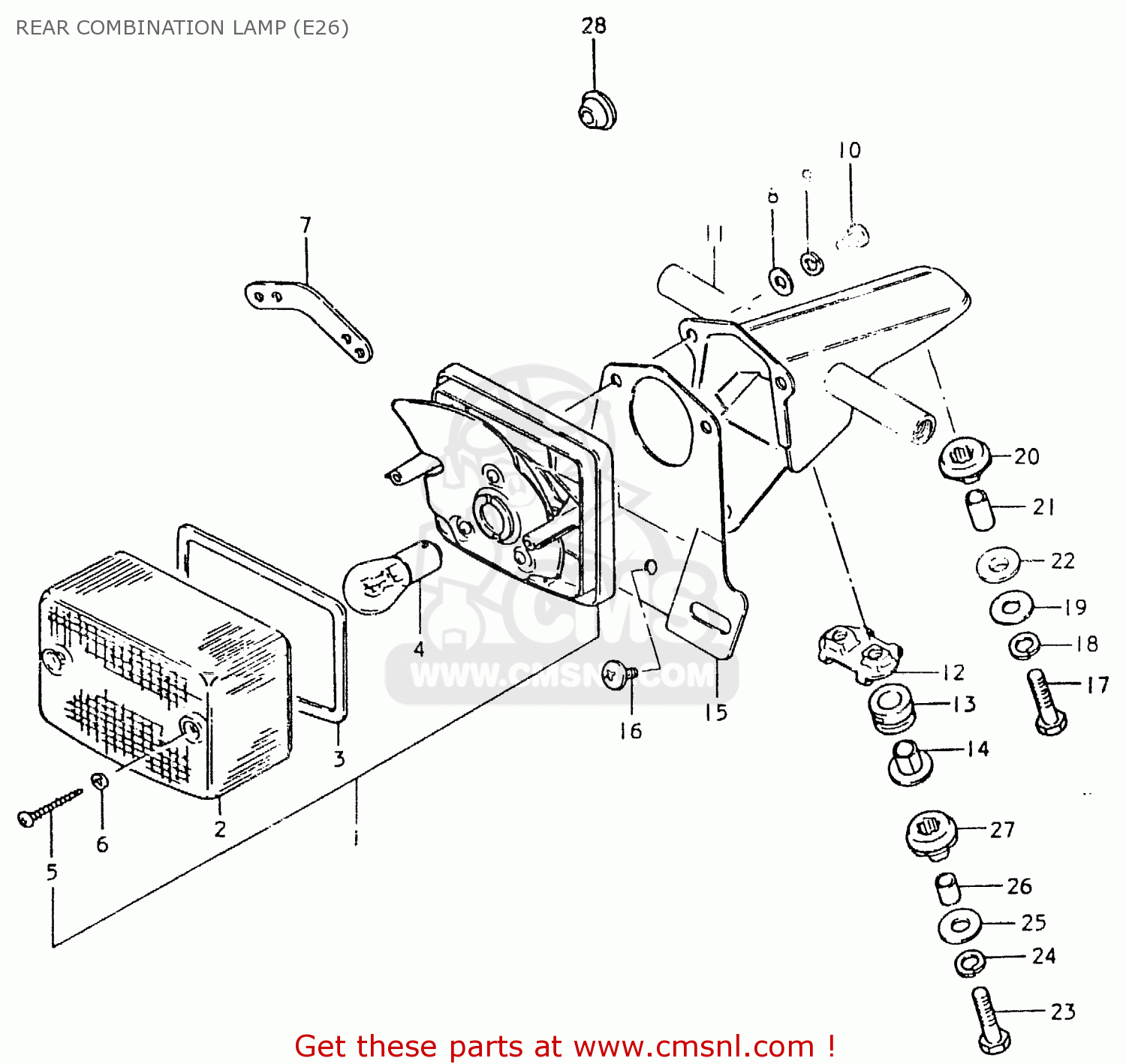

Rear combination lamp (e26) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

REAR COMBINATION LAMP (E26) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

REAR COMBINATION LAMP (E26) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

prices are in EUR

ref

part #

description

quantity

1

3572030960
ref: 1

LAMP UNIT, TAIL

€ 86.50

2

3571248521
ref: 2

LENS

€ 26.00

3

3571348510
ref: 3

GASKET (NAS)

€ 8.50

4

0947106042
ref: 4

BULB (6V,21/5W)

€ 12.50

5

0321104308
ref: 5
FROM 35625-49030

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3571648510
ref: 7

PLATE,REAR COMBINATION LAMP

€ 9.00

8

0832221058
ref: 8

WASHER

€ 2.50

9

0832121058
ref: 9

LOCK WASHER

€ 2.00

10

0211205128
ref: 10

SCREW

€ 2.50

11

3573048590
ref: 11

BRACKET ASSY

€ 116.00

12

3571630950
ref: 12

PLATE

€ 10.50

13

3576530950
ref: 13

CUSHION

€ 18.00

14

3576630950
ref: 14

SPACER

€ 2.00

15

3592748590
ref: 15

PLATE, LICENSE

€ 13.50

16

0214205087
ref: 16

SCREW

€ 2.00

17

0110706308
ref: 17

BOLT

€ 2.50

18

0832121068
ref: 18

LOCK WASHER

€ 2.50

19

0916006027
ref: 19

WASHER (6.5X20X1.2)

€ 2.00

20

0932009010
ref: 20

CUSHION

€ 2.50

21

0918006072
ref: 21

SPACER

€ 2.00

22

0932009003
ref: 22

CUSHION

€ 2.00

23

0110706408
ref: 23

BOLT 6X40

€ 2.00

24

0832121068
ref: 24

LOCK WASHER

€ 2.50

25

0916006027
ref: 25

WASHER (6.5X20X1.2)

€ 2.00

26

0918006006
ref: 26

SPACER (6.8X10X11.5)

€ 3.00

27

0932009010
ref: 27

CUSHION

€ 2.50

28

0930807004
ref: 28

GROMMET

€ 2.50
