HEADLAMP (E2)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

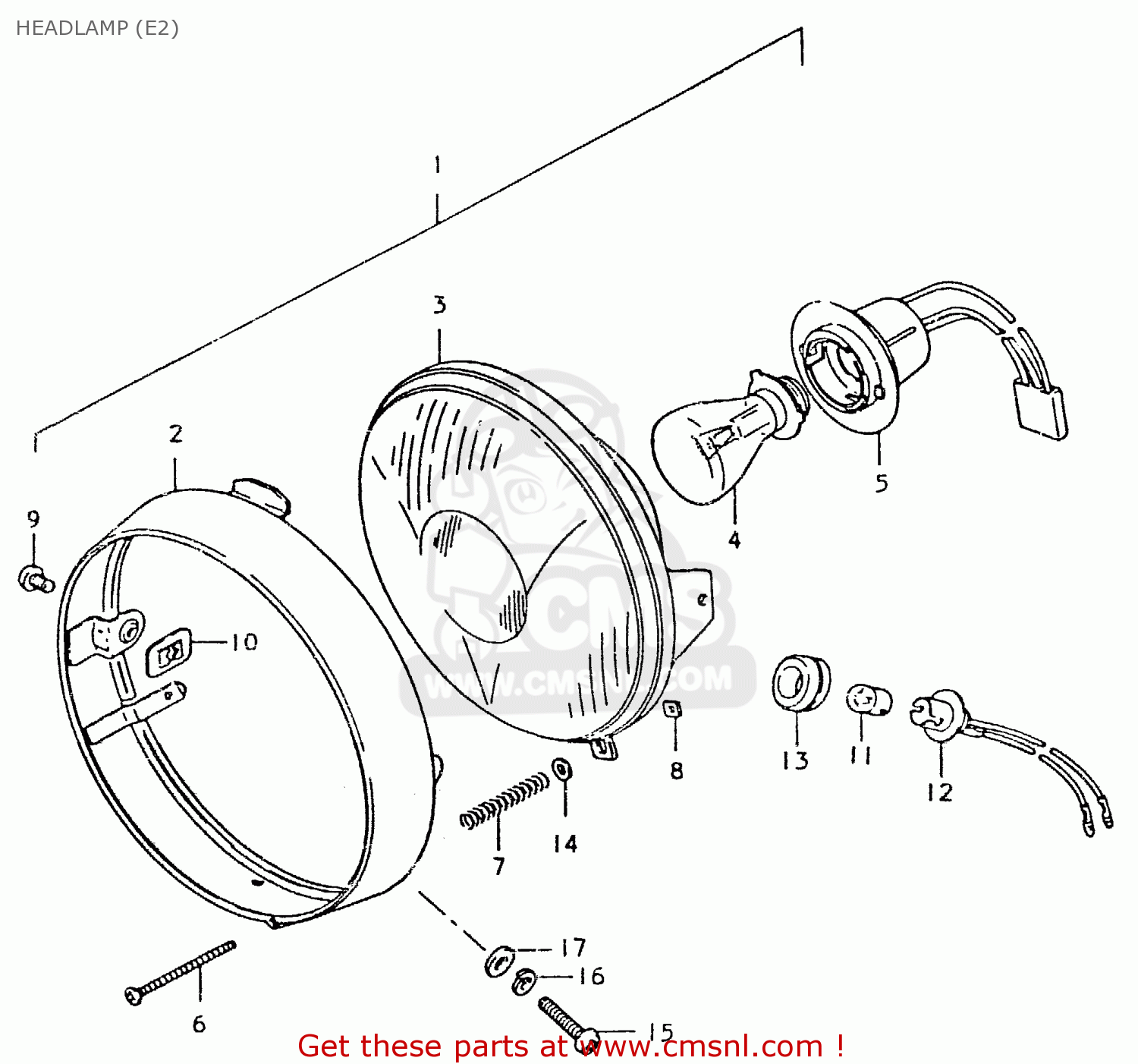

Headlamp (e2) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

HEADLAMP (E2) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
HEADLAMP (E2) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
HEADLAMP (E2) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
3510048520
ref: 1
HEADLAMP ASSY
3510048520
€ 136.50
2
3511148510
ref: 2
RIM
3511148510
€ 34.00
3
3512148520
ref: 3
UNIT
3512148520
€ 55.00
4
0947106029
ref: 4
BULB(6V25/25W,STANLEY,A7007)
0947106029
€ 9.00
5
3517148520
ref: 5
SOCKET
€ 18.00
6
3515148510
ref: 6
SCREW,HEADLAMP ADJUST
€ 3.50
7
3515448510
ref: 7
SPRING
3515448510
€ 2.50
8
3515248510
ref: 8
NUT,HEADLAMP ADJUSTER
€ 3.00
9
0211205088
ref: 9
SCREW
0211205088
€ 2.00
10
3515548510
ref: 10
NUT
3515548510
€ 2.00
11
0947106002
ref: 11
BULB(6V/3W)
0947106002
€ 2.50
12
3611830691
ref: 12
SOCKET
3611830691
€ 12.00
13
3611608421
ref: 13
SEAL,PARKING BULB
3611608421
€ 3.00
14
3515748510
ref: 14
WASHER
€ 2.50
15
0211205168
ref: 15
SCREW
0211205168
€ 2.50
16
0832121058
ref: 16
LOCK WASHER
0832121058
€ 2.00
17
0832221058
ref: 17
WASHER
€ 2.50
