REAR BRAKE

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

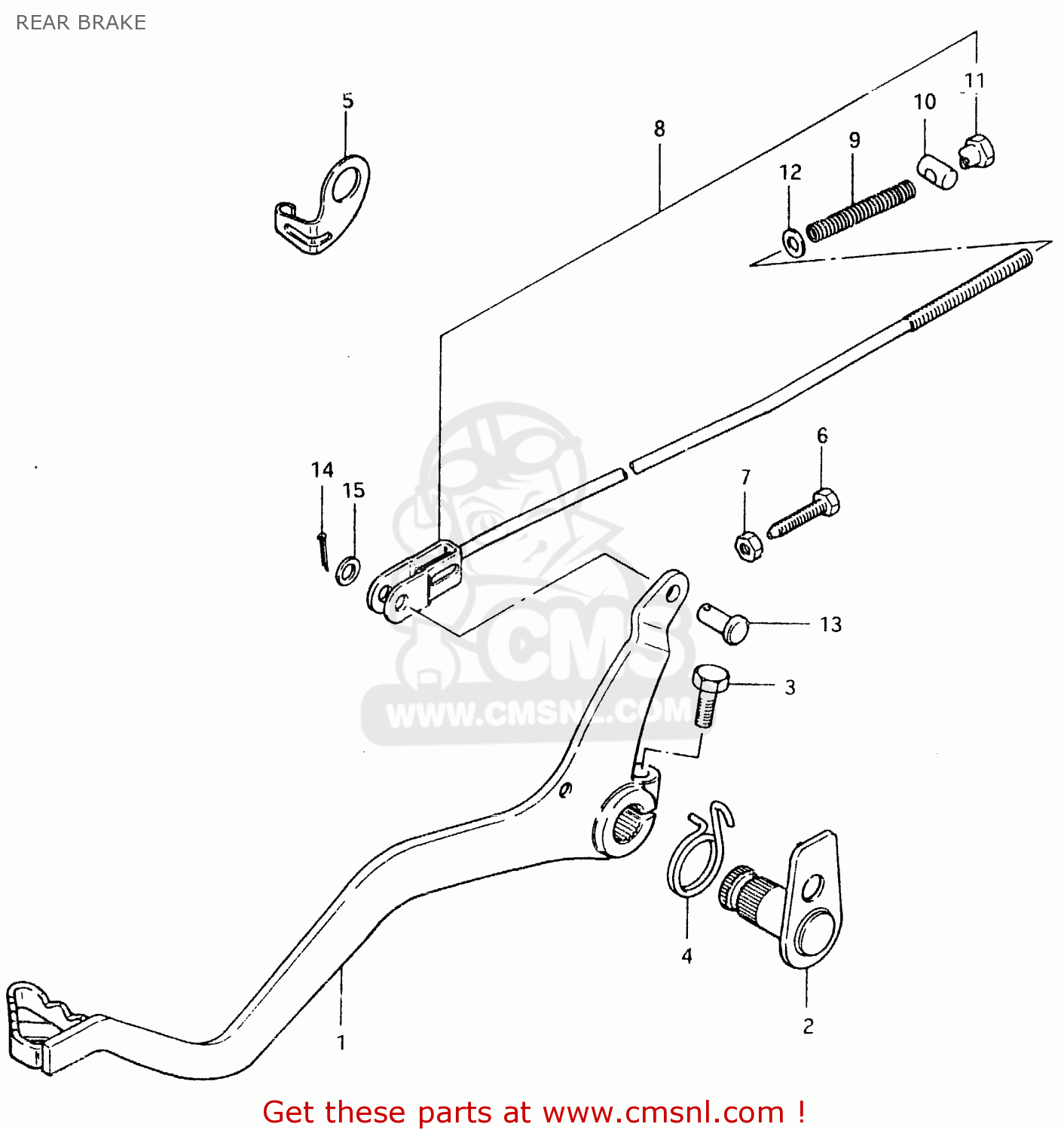

Rear brake diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

REAR BRAKE TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
REAR BRAKE TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
REAR BRAKE TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
4311048210
ref: 1
PEDAL,BRAKE
4311048210
€ 36.50
2
4312048210
ref: 2
ARM,BRAKE PEDAL
4312048210
€ 19.00
3
0110706208
ref: 3
BOLT
0110706208
€ 2.00
4
0944825001
ref: 4
SPRING
0944825001
€ 20.50
5
4313448210
ref: 5
HOOK,STOP LAMP SWITCH SPRING
€ 0.00
6
0910006009
ref: 6
BOLT(6X23)
0910006009
€ 1.50
7
0831011068
ref: 7
NUT
0831011068
€ 2.50
8
4330048500
ref: 8
ROD ASSY,RR BRAKE
4330048500
€ 14.50
9
0944009004
ref: 9
SPRING
0944009004
€ 2.00
10
0920913003
ref: 10
PIN
0920913003
€ 3.50
11
0915006001
ref: 11
NUT
0915006001
€ 3.50
12
0832221068
ref: 12
WASHER
0832221068
€ 2.00
13
0920006013
ref: 13
PIN(L:13.5)
0920006013
€ 2.00
14
0411120208
ref: 14
PIN 20X20
0411120208
€ 1.50
15
0832221068
ref: 15
WASHER
0832221068
€ 2.00
