FUEL TANK (TS125ERX E8, E9, E10)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

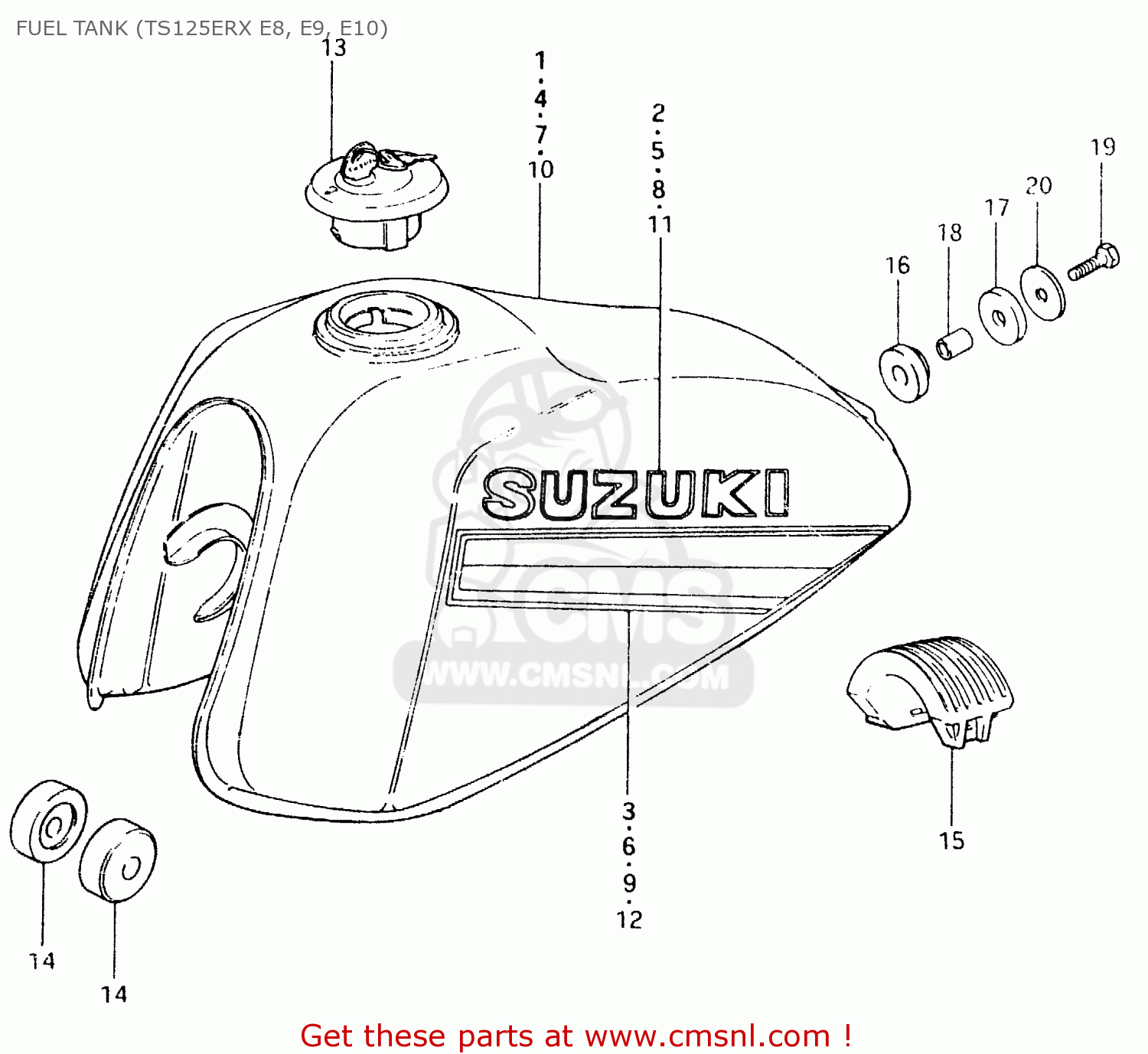

Fuel tank (ts125erx e8, e9, e10) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

FUEL TANK (TS125ERX E8, E9, E10) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
FUEL TANK (TS125ERX E8, E9, E10) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
FUEL TANK (TS125ERX E8, E9, E10) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
441004858008Y
ref: 1
TANK, FUEL (BLACK)
€ 254.50
2
6811129320064
ref: 2
EMBLEM
6811129320064
€ 10.50
3
681104853074U
ref: 3
TAPE SET
€ 0.00
4
4410048580163
ref: 4
TANK, FUEL (YELLOW)
€ 254.50
5
6811129320019
ref: 5
EMBLEM(BLACK)
6811129320019
€ 12.50
6
681104853067H
ref: 6
TAPE SET
€ 0.00
7
441004858007P
ref: 7
TANK, FUEL (RED)
€ 254.50
8
6811129320064
ref: 8
EMBLEM
6811129320064
€ 10.50
9
681104853074T
ref: 9
TAPE SET
681104853074T
€ 39.00
10
4410048580189
ref: 10
TANK, FUEL (WHITE)
€ 254.50
11
6811129320019
ref: 11
EMBLEM(BLACK)
6811129320019
€ 12.50
12
681104853067H
ref: 12
TAPE SET
€ 0.00
13
4420030702
ref: 13
CAP SET,FUEL TANK
4420030702
€ 112.00
14
0932910007
ref: 14
CUSHION
0932910007
€ 3.00
15
4454148500
ref: 15
CUSHION,FUEL TANK
4454148500
€ 4.50
16
0932012013
ref: 16
CUSHION
0932012013
€ 3.00
17
0932012017
ref: 17
CUSHION
0932012017
€ 2.50
18
0918008067
ref: 18
SPACER(8.5X12X19)
0918008067
€ 2.50
19
0110708308
ref: 19
BOLT (8X30)
0110708308
€ 2.50
20
0916008002
ref: 20
WASHER (8.5X29X1.6)
0916008002
€ 2.00
