Buy Suzuki TS Parts Online


FRAME COVER (TS125ERX)

TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

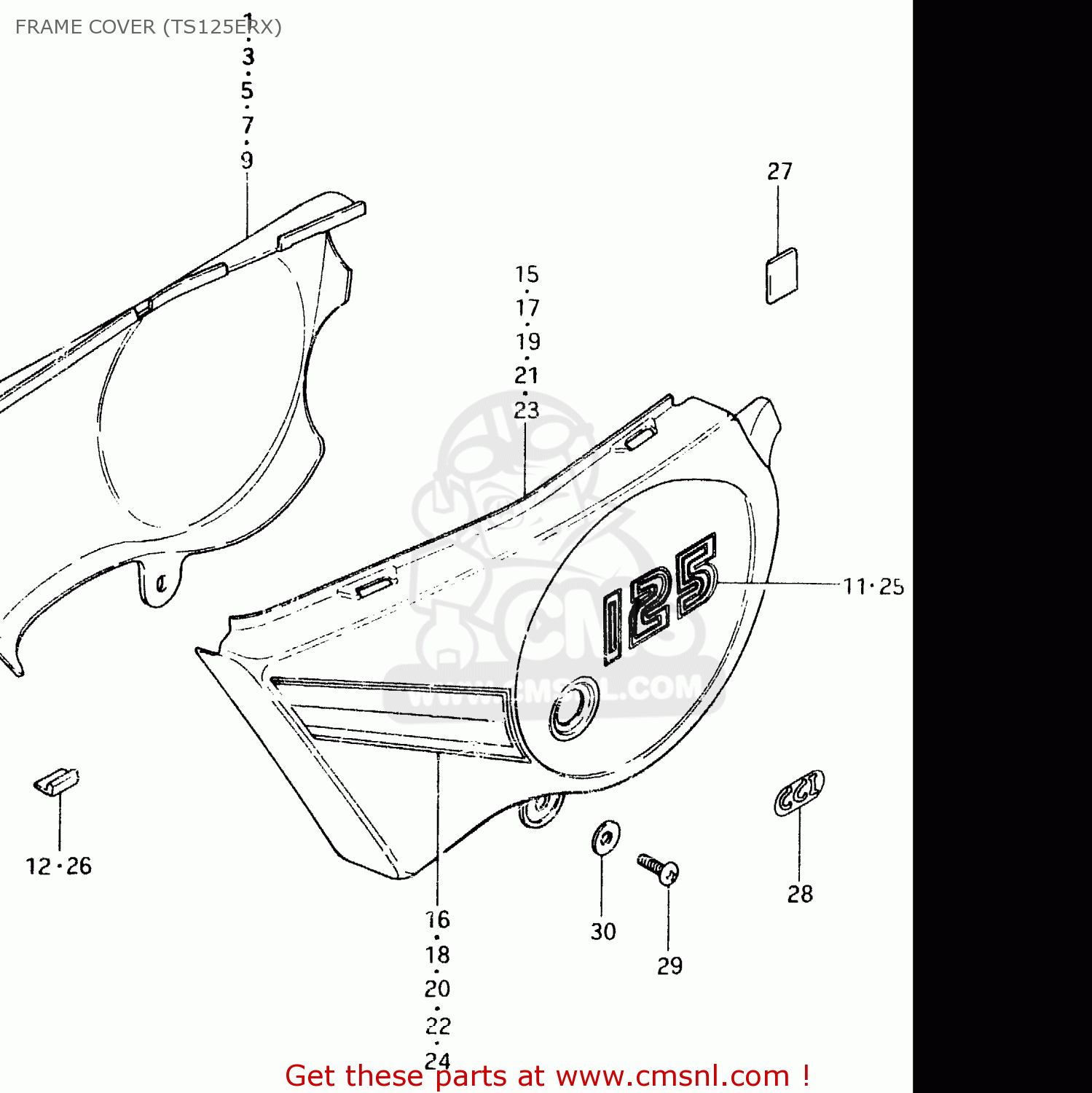

Frame cover (ts125erx) diagram TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30

FRAME COVER (TS125ERX) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
FRAME COVER (TS125ERX) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
FRAME COVER (TS125ERX) TS125ER 1981 (X) (1 2 4 6 8 9 10 15 16 17 18 E21 E22 E24 E26 E30
prices are in EUR
ref
part #
description
quantity
1
471114850007P
ref: 1
COVER, FRAME RH (RED)
€ 50.00
2
681364853074T
ref: 2
TAPE, RH
€ 13.50
3
471114850008Y
ref: 3
COVER,FRAME,RIGHT
471114850008Y
€ 50.00
4
681364853074U
ref: 4
TAPE, RH
€ 0.00
5
4711148500189
ref: 5
COVER, FRAME RH (WHITE)
€ 50.00
6
681364853067H
ref: 6
TAPE, RH
€ 10.50
7
4711148500163
ref: 7
COVER, FRAME RH (YELLOW)
€ 50.00
8
681364853067H
ref: 8
TAPE, RH
€ 10.50
9
4711148500019
ref: 9
E4
COVER,FRAME,RIGHT
4711148500019
€ 50.00
10
681364853074V
ref: 10
E4
TAPE, RH
€ 0.00
11
6813148210064
ref: 11
EMBLEM, "125" RH (WHITE)
€ 14.00
12
4711745000
ref: 12
CUSHION,FRAME COVER
4711745000
€ 1.50
13
4711702400
ref: 13
CUSHION,FRAME COVER
4711702400
€ 2.00
14
4711746400
ref: 14
CUSHION,FRAME COVER
4711746400
€ 1.50
15
472114850007P
ref: 15
COVER, FRAME LH (RED)
472114850007P
€ 73.00
16
681464853074T
ref: 16
TAPE, LH
€ 12.00
17
472114850008Y
ref: 17
COVER,FRAME,LEFT
472114850008Y
€ 73.00
18
681464853074U
ref: 18
TAPE, LH
€ 0.00
19
4721148500189
ref: 19
COVER, FRAME LH (WHITE)
4721148500189
€ 73.00
20
681464853067H
ref: 20
TAPE, LH
€ 9.00
21
4721148500163
ref: 21
COVER, FRAME LH (YELLOW)
€ 73.00
22
681464853067H
ref: 22
TAPE, LH
€ 9.00
23
4721148500019
ref: 23
E4
COVER,FRAME,LEFT
4721148500019
€ 73.00
24
681464853074V
ref: 24
E4
TAPE, LH
€ 0.00
25
6814148210064
ref: 25
EMBLEM, "125" LH (WHITE)
€ 6.00
26
4711745000
ref: 26
CUSHION,FRAME COVER
4711745000
€ 1.50
27
3365137000
ref: 27
PROTECTOR(170X95X3.0)
3365137000
€ 5.00
28
6817126000
ref: 28
EMBLEM,CCIS
6817126000
€ 4.00
29
0214206128
ref: 29
SCREW
€ 1.50
30
0916006007
ref: 30
WASHER
0916006007
€ 2.00
