AIR CLEANER

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

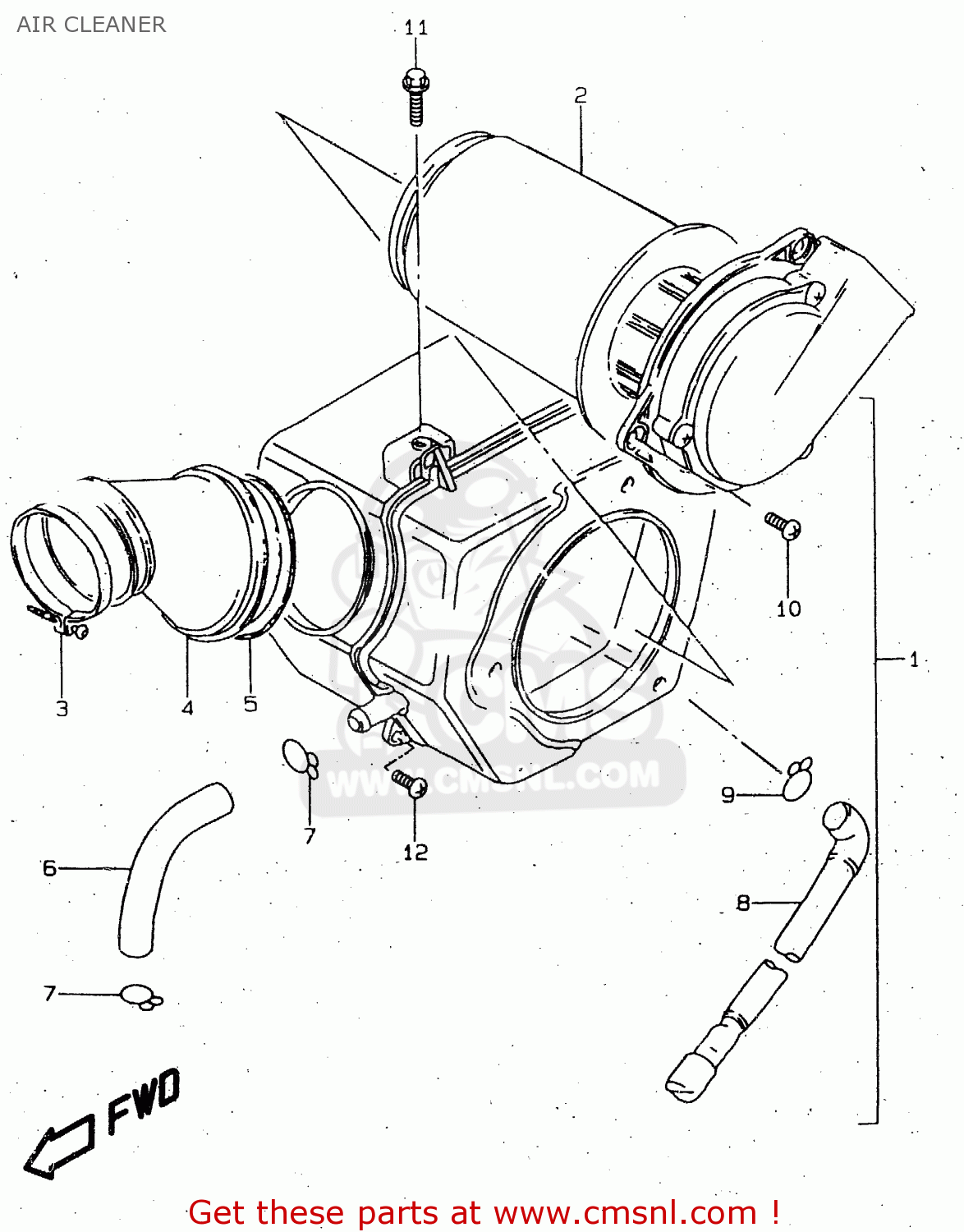

Air cleaner diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

AIR CLEANER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

AIR CLEANER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1

1370005302
ref: 1

CLEANER ASSY,AIR

€ 119.00

1

1370005380
ref: 1
E18,E22

CLEANER ASSY,AIR

€ 126.00

2

1378038301
ref: 2

FILTER

€ 21.50

3

0940256208
ref: 3

CLAMP

€ 3.50

4

1388105300
ref: 4

TUBE,OUTLET

€ 21.00

5

1382638300
ref: 5

CLAMP,AIR CLEANER SIDE

€ 3.00

6

1385305300
ref: 6

TUBE,BREATHER

€ 13.00

6

1385005380
ref: 6
E18,E22

TUBE,BREATHER

€ 13.00

7

0940114401
ref: 7

CLIP

€ 2.00

8

1387021308
ref: 8

TUBE,DRAIN

€ 16.50

9

0940113409
ref: 9

CLIP

€ 2.50

10

0214205127
ref: 10

SCREW

€ 1.50

11

0158006163
ref: 11

BOLT

€ 2.50

12

0214206163
ref: 12
MODEL V

SCREW

€ 2.50

12

0158006163
ref: 12
MODEL W/X

BOLT

€ 2.50
