SPEEDOMETER - TACHOMETER (GN125V/W/X)

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

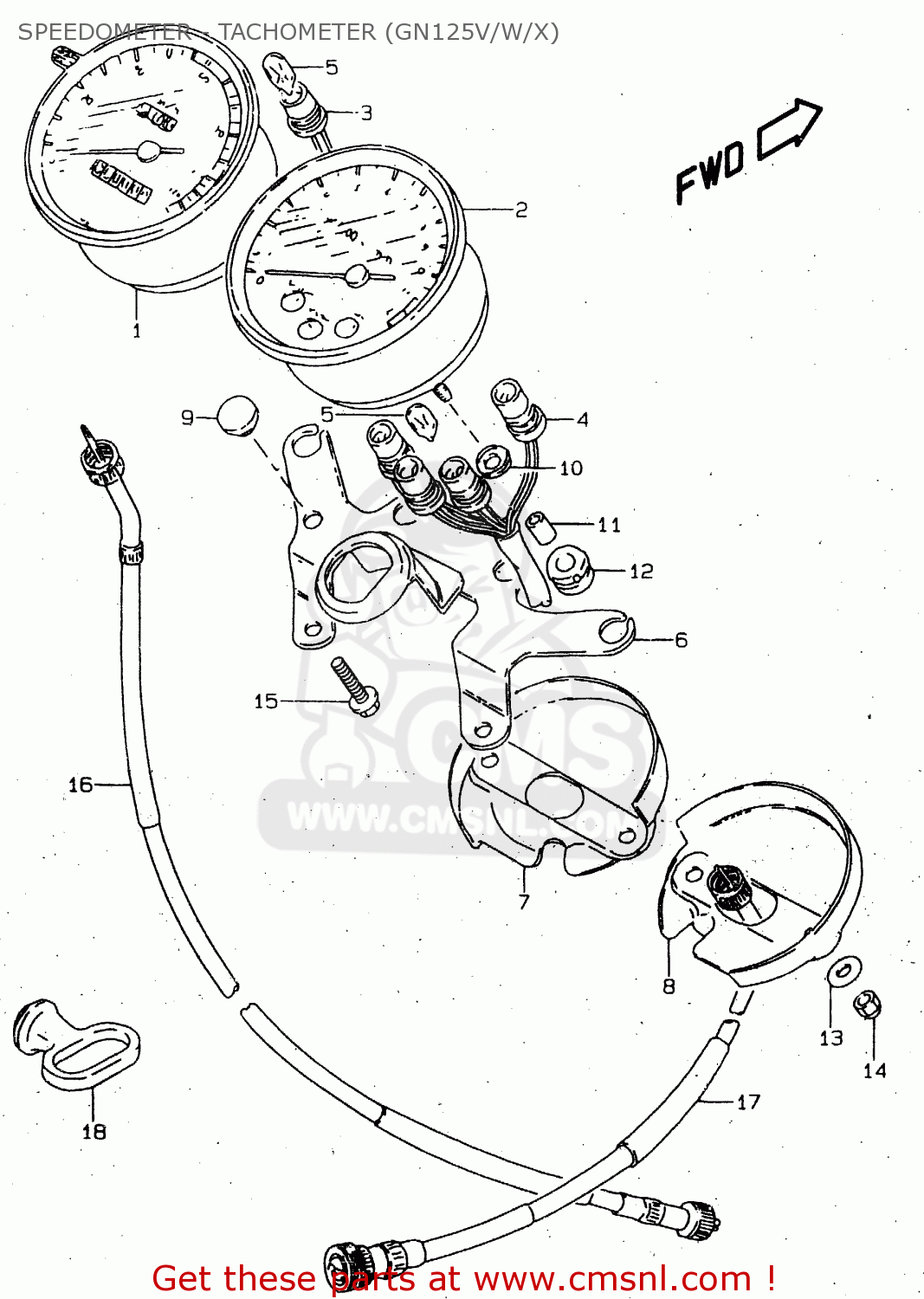

Speedometer - tachometer (gn125v/w/x) diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

3411005310
ref: 1

METER,SPEED (KM/MPH)

€ 222.50

3411005300
ref: 1
E1,E4,E18,E21,E22,E7

SPEEDOMETER(KILO)

€ 251.50

3421005320
ref: 2

TACHOMETER

€ 211.50

3417305300
ref: 3

SOCKET,SPEEDOMETER

€ 11.50

3427305320
ref: 4

SOCKET,TACHOMETER

€ 27.50

0947112082
ref: 5

BULB(12V3.4W,T10,BF175-01450A)

€ 3.50

3495005300
ref: 6

BRACKET,METER

€ 22.00

3419305300
ref: 7

UNDER COVER,SPEEDOMETER

€ 13.00

3429305300
ref: 8

UNDER COVER,TACHOMETER

€ 12.50

3495628011
ref: 9

CUSHION,METER

€ 5.50

0916005013
ref: 10

WASHER(5.2X16X1)

€ 1.50

3418728310
ref: 11

SPACER,SPEEDOMETER

€ 2.00

3418928310
ref: 12

CUSHION,METER

€ 2.50

0916005024
ref: 13

WASHER(5.5X16X1.5)

€ 1.50

0831310057
ref: 14

NUT

€ 1.50

0155006163
ref: 15

BOLT

€ 2.50

3491005310
ref: 16

CABLE ASSY,SPEEDOMETER

€ 41.00

3494005300
ref: 17

CABLE ASSY,TACHOMETER

€ 44.00

5862121203A
ref: 18

GUIDE,CABLE

€ 7.50
