MAGNETO

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

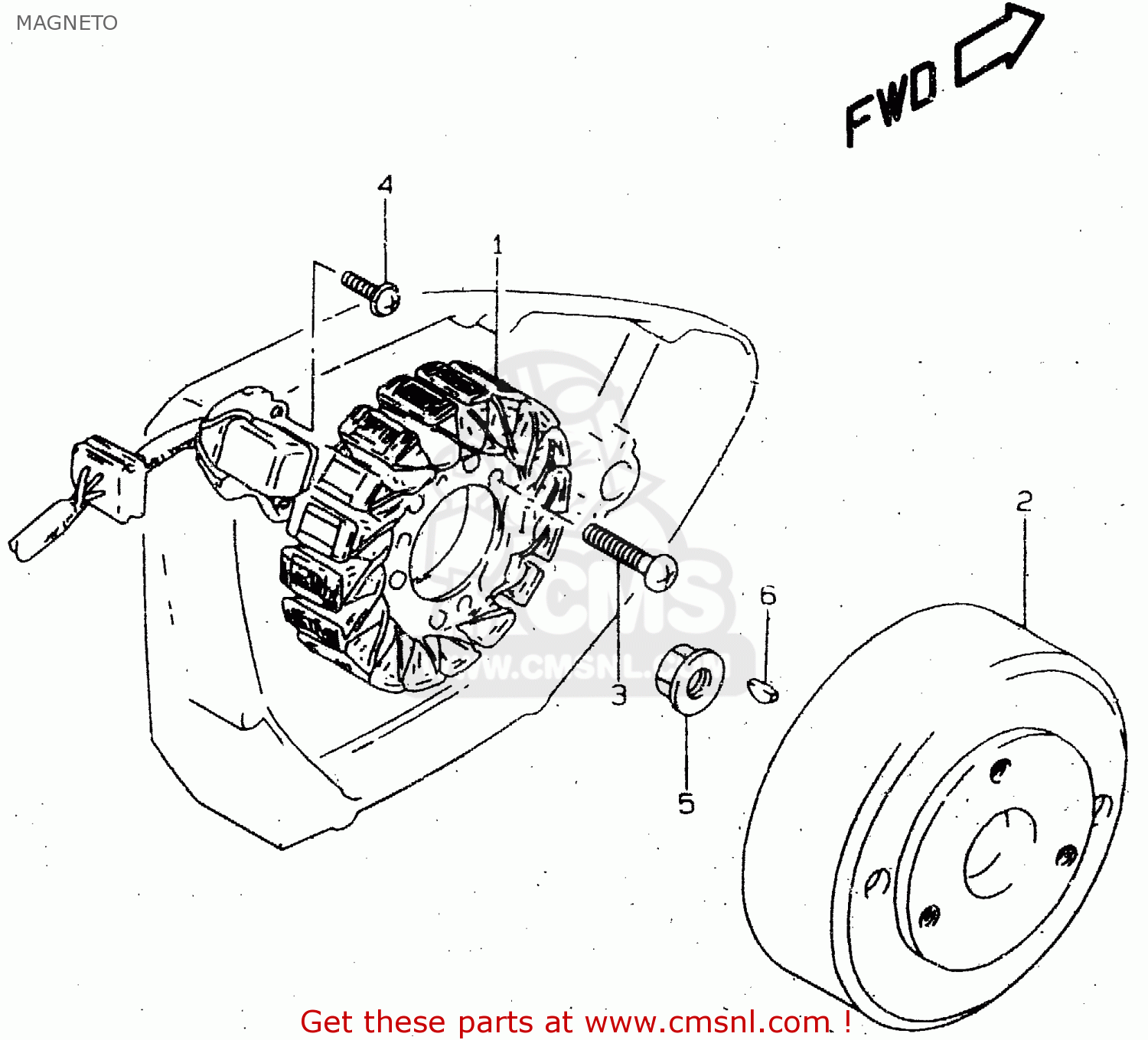

Magneto diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

MAGNETO GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

MAGNETO GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1

3210105300
ref: 1

STARTER ASSY

€ 602.50

2

3210205300
ref: 2

ROTOR,FLYWHEEL

€ 341.00

3

0211205253
ref: 3

SCREW

€ 1.50

4

0214204123
ref: 4

SCREW

€ 1.50

5

0831610103
ref: 5

NUT

€ 2.00

6

0834131039
ref: 6

KEY

€ 2.00
