HEADLAMP (E2,E71,P9)

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

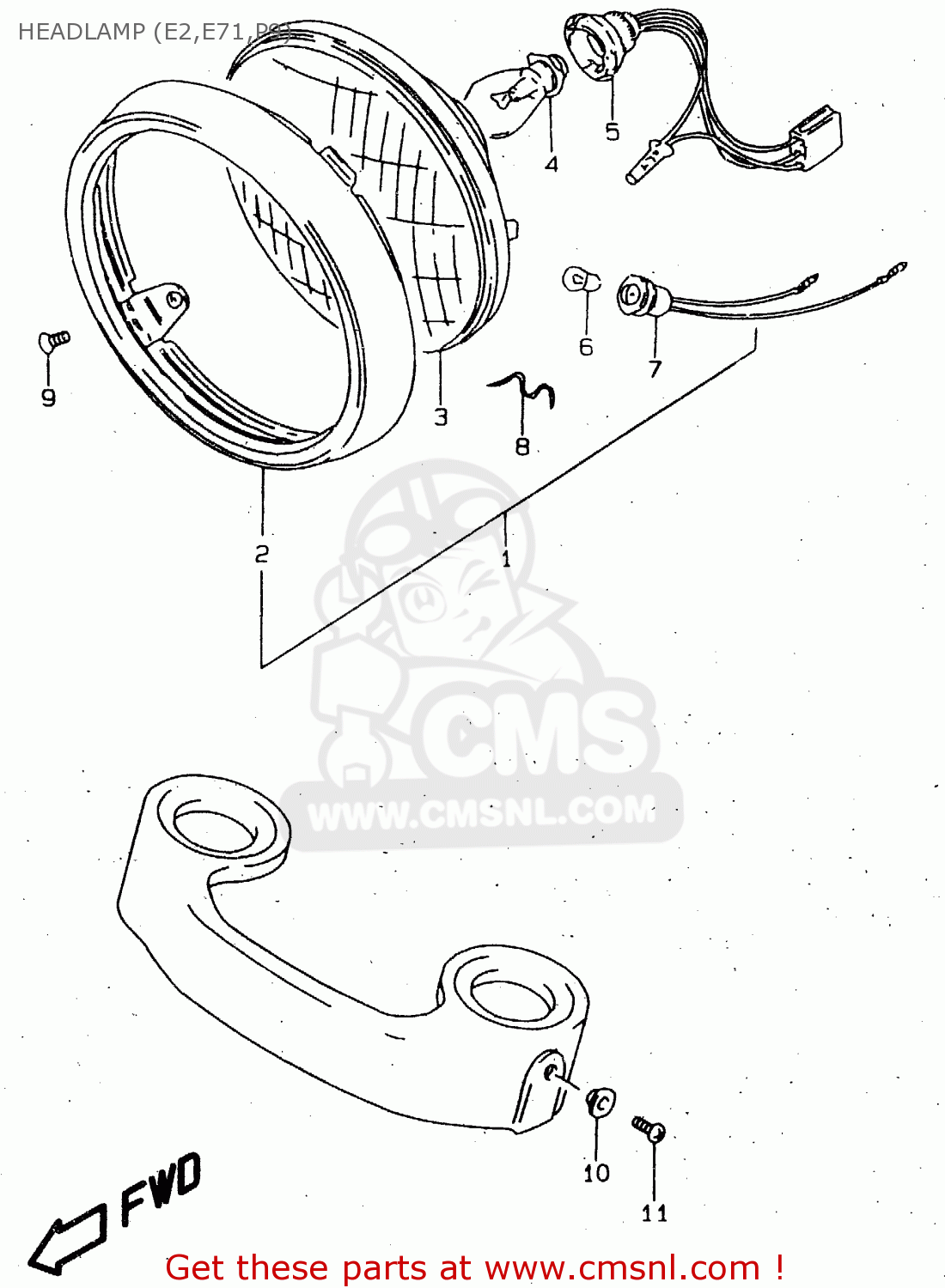

Headlamp (e2,e71,p9) diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

HEADLAMP (E2,E71,P9) GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

HEADLAMP (E2,E71,P9) GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1

3510044270
ref: 1

HEADLAMP ASSY

€ 144.50

2

3511137350
ref: 2

RIM

€ 42.00

3

3512144270
ref: 3

LAMP UNIT

€ 55.00

4

0947112044
ref: 4

BULB

€ 8.50

5

3517144270
ref: 5

SOCKET

€ 34.50

6

0947112001
ref: 6

BULB(12V3.4W,STANLEY,A72A)

€ 1.50

7

3611830500
ref: 7

SOCKET

€ 10.00

8

3517233630
ref: 8

SPRING

€ 4.00

9

0212205127
ref: 9

SCREW

€ 2.50

10

0916905008
ref: 10

WASHER

€ 3.00

11

0214205087
ref: 11

SCREW

€ 2.00
