HANDLE SWITCH

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

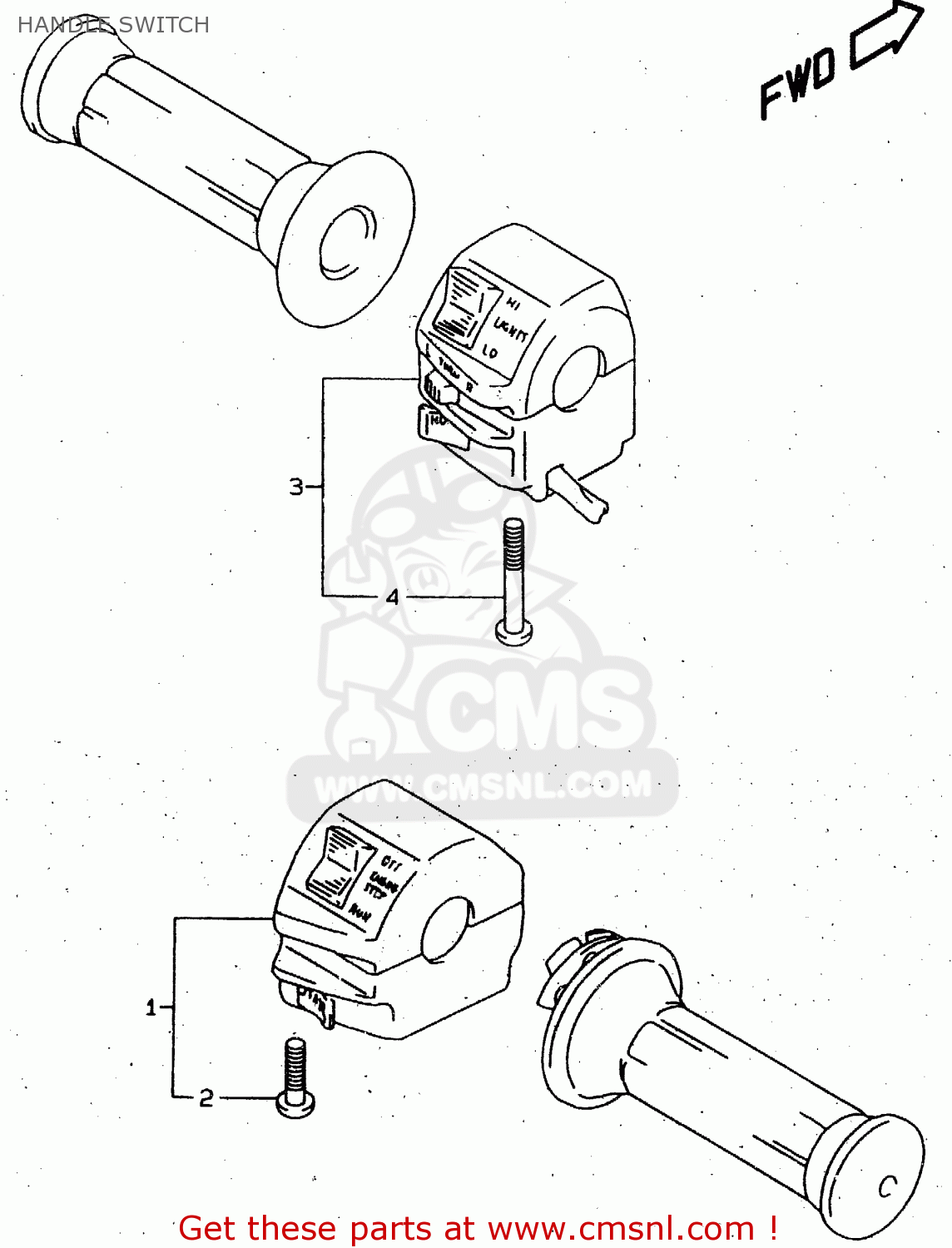

Handle switch diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

HANDLE SWITCH GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

HANDLE SWITCH GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1

3720045C03
ref: 1
GN125V/W

SWITCH ASSY,HANDLE,R

€ 129.00

1

3720045C12
ref: 1
GN125EV/EW

SWITCH ASSY,HANDLE,R

€ 92.50

2

0211205453
ref: 2

SCREW

€ 4.00

3

3740006B12
ref: 3

SWITCH ASSEMBLY,HANDLE,LEFT

€ 102.00

4

0211205453
ref: 4

SCREW

€ 4.00
