CLUTCH

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

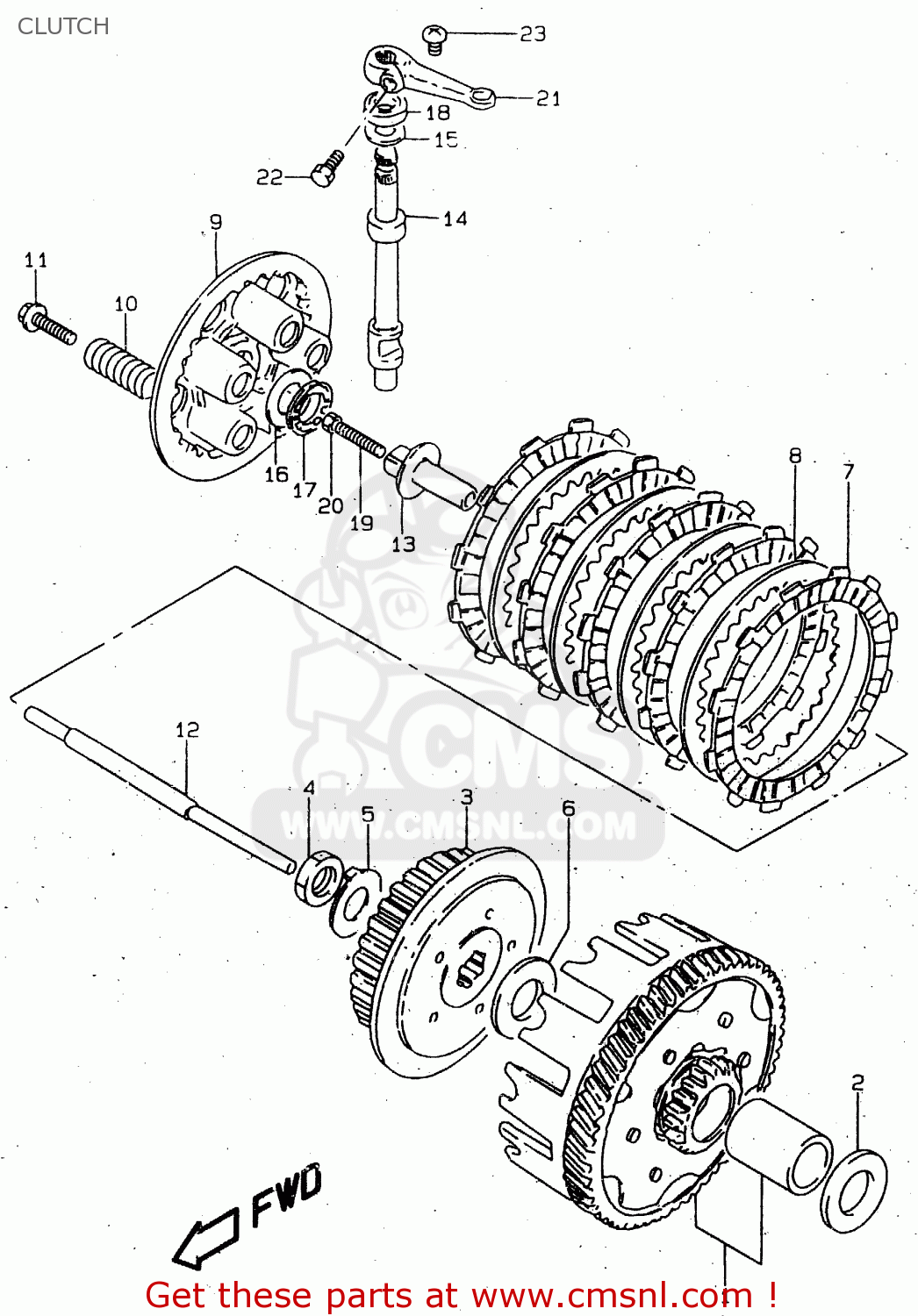

Clutch diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

CLUTCH GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
CLUTCH GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
CLUTCH GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
prices are in EUR
ref
part #
description
quantity
1
2120005880
ref: 1
NT:20/59
GEAR ASSY,PRIMARY(NT:20/59)
2120005880
€ 175.00
2
0821120353
ref: 2
WASHER
0821120353
€ 2.50
3
2141105200
ref: 3
HUB,CLUTCH SLEEVE
2141105200
€ 47.00
4
0914016005
ref: 4
NUT
0914016005
€ 4.50
5
0916916003
ref: 5
WASHER
0916916003
€ 2.00
6
0821120352
ref: 6
WASHER
0821120352
€ 3.00
7
2144113A01
ref: 7
PLATE,CLUTCH DRIVE(T:3.0) (NAS)
2144113A01
€ 8.50
8
2145119A00
ref: 8
PLATE,CLUTCH DRIVEN (NAS)
2145119A00
€ 4.50
9
2146214102
ref: 9
PLATE,CLUTCH PRESSURE
2146214102
€ 16.00
10
0944015014
ref: 10
SPRING
0944015014
€ 4.00
11
0911605003
ref: 11
MODEL V/W
BOLT 5X16
0911605003
€ 2.50
11
0911605020
ref: 11
MODEL X
BOLT(5X16)
0911605020
€ 2.50
12
2311005202
ref: 12
ROD,CLUTCH PUSH
2311005202
€ 11.00
13
2312138201
ref: 13
PIECE,CLUTCH PUSH
2312138201
€ 17.00
14
2312205200
ref: 14
CAMSHAFT,CLUTCH RELEASE
€ 31.00
15
0918110195
ref: 15
SHIM(10X20X1)
0918110195
€ 2.00
16
0916015045
ref: 16
WASHER(15.5X28X1)
0916015045
€ 4.00
17
0926315003
ref: 17
BEARING(15X28X2)
0926315003
€ 7.00
18
0928210012
ref: 18
SEAL,OIL(10X20X6)
0928210012
€ 7.50
19
0913406010
ref: 19
SCREW(6X25)
0913406010
€ 3.00
20
0914006023
ref: 20
NUT
0914006023
€ 2.00
21
2327146010
ref: 21
ARM,CLUTCH RELEASE
2327146010
€ 14.50
22
0150006167
ref: 22
BOLT
0150006167
€ 3.00
23
0214206103
ref: 23
SCREW 6X10
0214206103
€ 2.00
