REAR SWINGING ARM

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

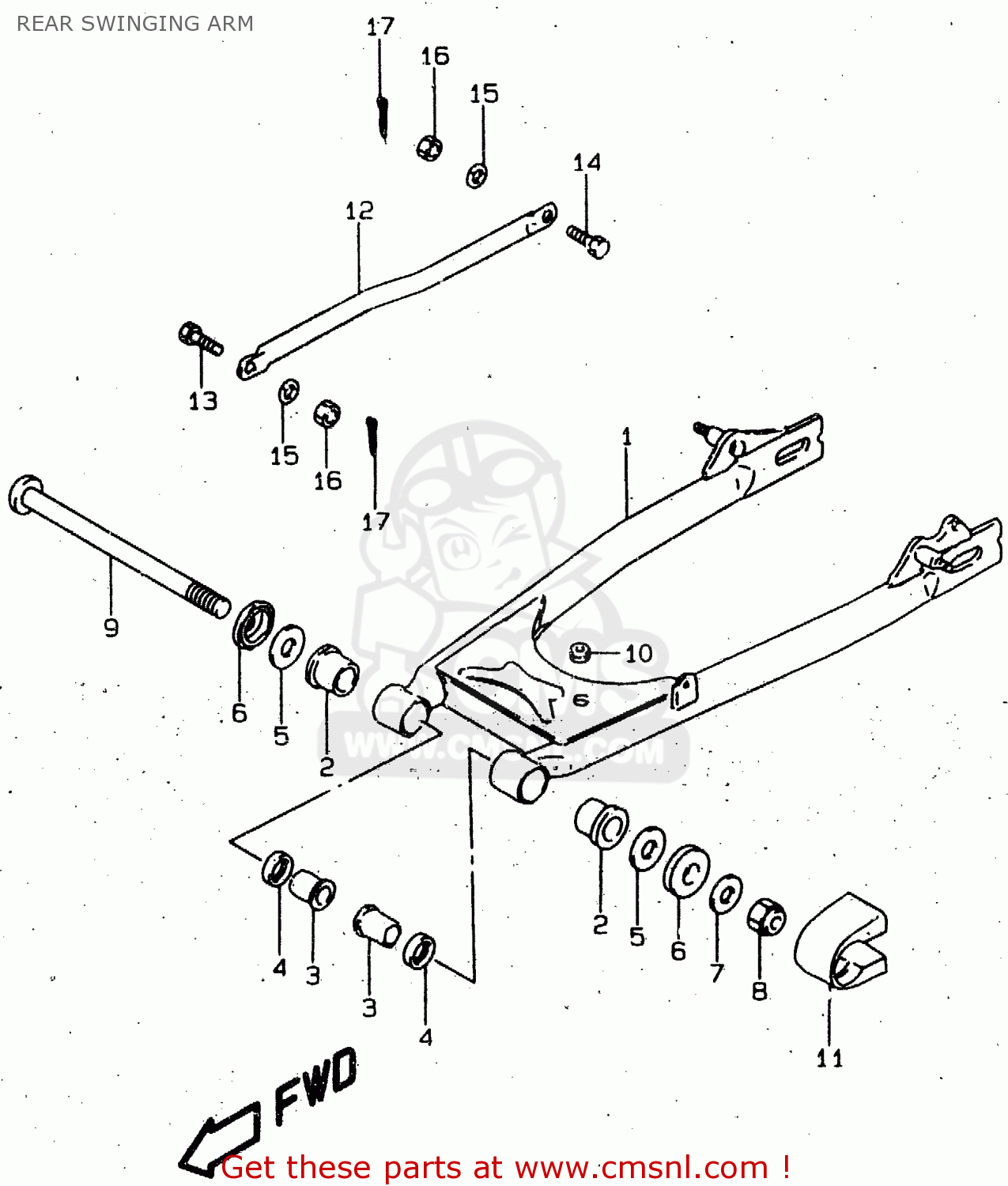

Rear swinging arm diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

6100005300019
ref: 1

SWINGINGARM ASSY,RR

€ 123.50

6126105301
ref: 2

BUSH,RR SWINGING ARM PIVOT

€ 9.50

6125105300
ref: 3

SPACER,RR SWGARM PIVOT

€ 10.00

0928620001
ref: 4

SEAL,OIL(20X27X5)

€ 2.50

0821114341
ref: 5

WASHER

€ 3.00

6126245002
ref: 6

CVR,RR SWGARM DUST SEAL(OD:40)

€ 4.50

0832201143
ref: 7

WASHER

€ 2.00

0831921148
ref: 8

NUT 14MM

€ 3.00

6121105302
ref: 9

SHAFT,RR SWINGINGARM PIVOT

€ 12.00

0932008020
ref: 10

CUSHION

€ 3.00

6127305300
ref: 11

BUFFER,CHAIN TOUCH DEFENSE

€ 27.50

6431005300019
ref: 12

LINK,RR TORQUE

€ 12.50

0911108012
ref: 13

BOLT(8X22.5)

€ 3.00

0911108013
ref: 14

BOLT(8X26.5)

€ 3.00

0916208008
ref: 15

WASHER,LOCK

€ 2.00

0914008008
ref: 16

NUT

€ 1.50

0411120208
ref: 17

PIN 20X20

€ 1.50
