FUEL COCK

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

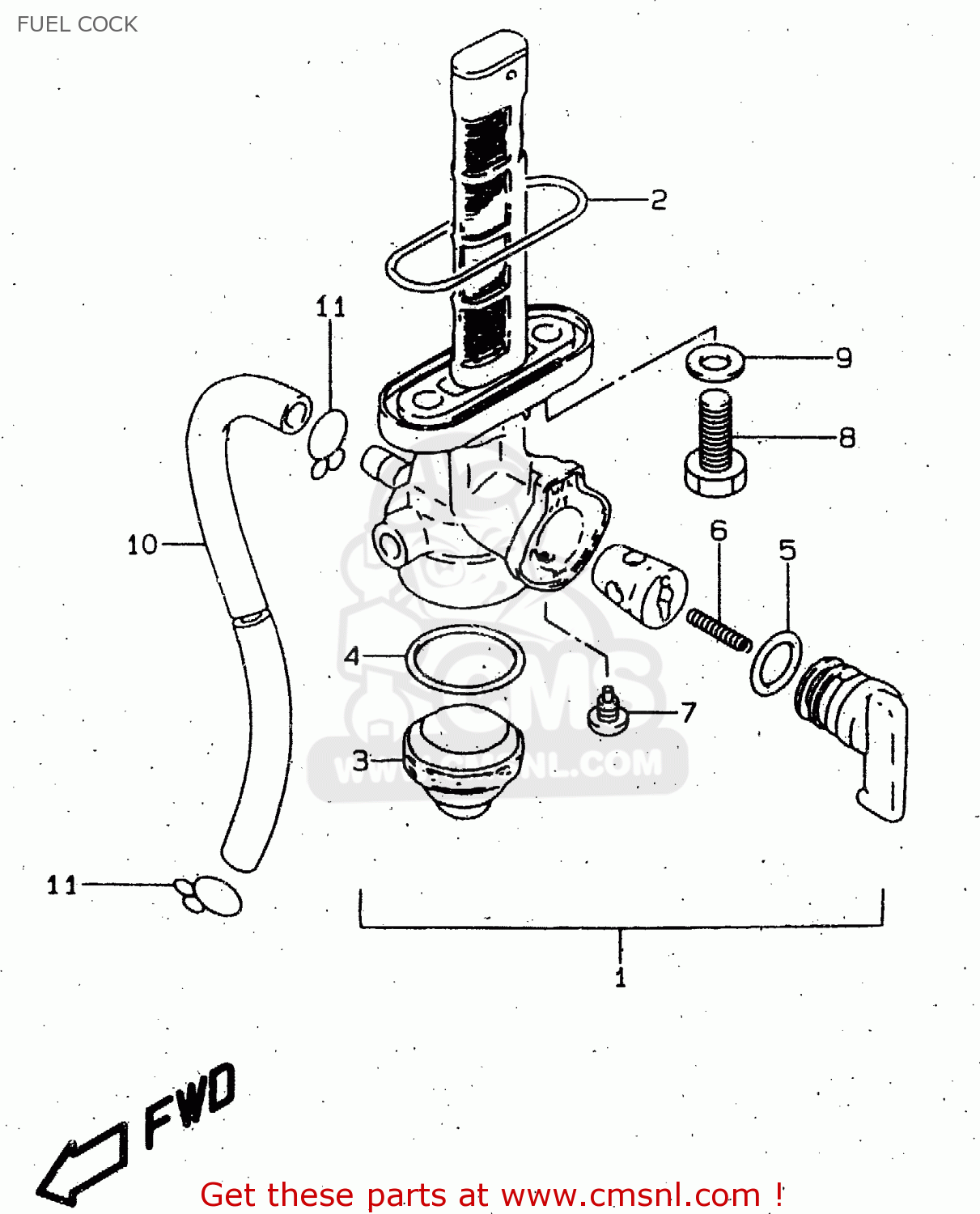

Fuel cock diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

FUEL COCK GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

FUEL COCK GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1

4430022075
ref: 1
MODEL V/W

COCK ASSEMBLY,FUEL

€ 65.50

1

4430022080
ref: 1
MODEL X

COCK ASSY,FUEL

€ 64.00

2

4434828070
ref: 2

O RING,FUEL COCK

€ 4.50

3

4434728071
ref: 3

CUP,STRAINER

€ 7.50

4

4434628070
ref: 4

GASKET,FILTER (NAS)

€ 2.50

5

4435312C01
ref: 5

O RING,LEVER

€ 7.50

6

4435732470
ref: 6

SPRING

€ 2.00

7

4434341370
ref: 7

SCREW

€ 2.00

8

0912806057
ref: 8

BOLT(6X20)

€ 2.00

9

0916806026
ref: 9

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

10

0935250823600
ref: 10

HOSE(5X8.2X600)

€ 13.00

11

0940108401
ref: 11

CLIP

€ 1.50
