CRANKSHAFT

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

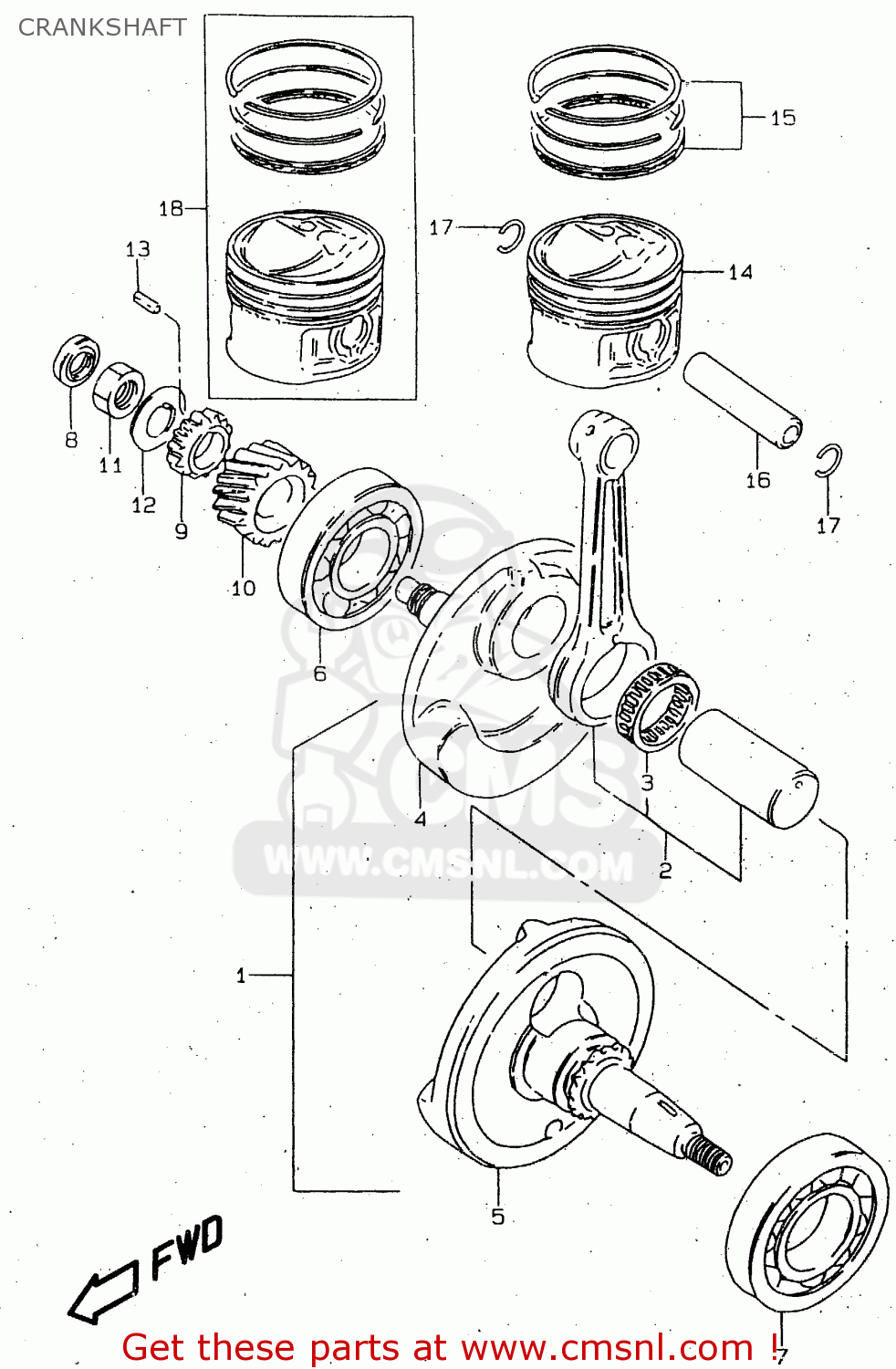

Crankshaft diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

CRANKSHAFT GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

CRANKSHAFT GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

1

1220005340
ref: 1
<-12200-05323

CRANKSHAFT ASSY

€ 424.00

2

1210505821
ref: 2

CONNECTING ROD SET

€ 163.00

3

09263280270B0
ref: 3

BEARING(28X36X15.8)

€ 24.50

4

1222105210
ref: 4
<-12221-05202

CRANKSHAFT,R

€ 150.50

5

1226105301
ref: 5

CRANKSHAFT,L

€ 162.50

6

0926228014
ref: 6

BEARING(28X68X18)

€ 40.00

7

0926235038
ref: 7

BEARING(35X72X17)

€ 38.00

8

0928212009
ref: 8

SEAL,OIL(12X21X7)

€ 9.00

9

1632105201
ref: 9

GEAR,OIL PUMP DRIVE

€ 18.00

10

2111105200
ref: 10

GEAR,PRIMARY DRIVE

€ 33.00

11

0914016019
ref: 11

NUT

€ 4.00

12

0916616012
ref: 12

WASHER

€ 1.50

13

0942104004
ref: 13

KEY

€ 3.50

14

12111052020F0
ref: 14

PISTON

€ 39.50

15

1214001410
ref: 15

RING SET,PISTON

€ 37.50

16

1215105220
ref: 16

PIN,PISTON

€ 6.50

17

0938114001
ref: 17

RING,SNAP 14MM

€ 1.50

18

1210005200050
ref: 18
OPT

PISTON SET(OS:0.5)

€ 70.00

18

1210005200100
ref: 18
OPT

PISTON SET (OS:1.0)

€ 77.00
