FUEL TANK (MODEL X)

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

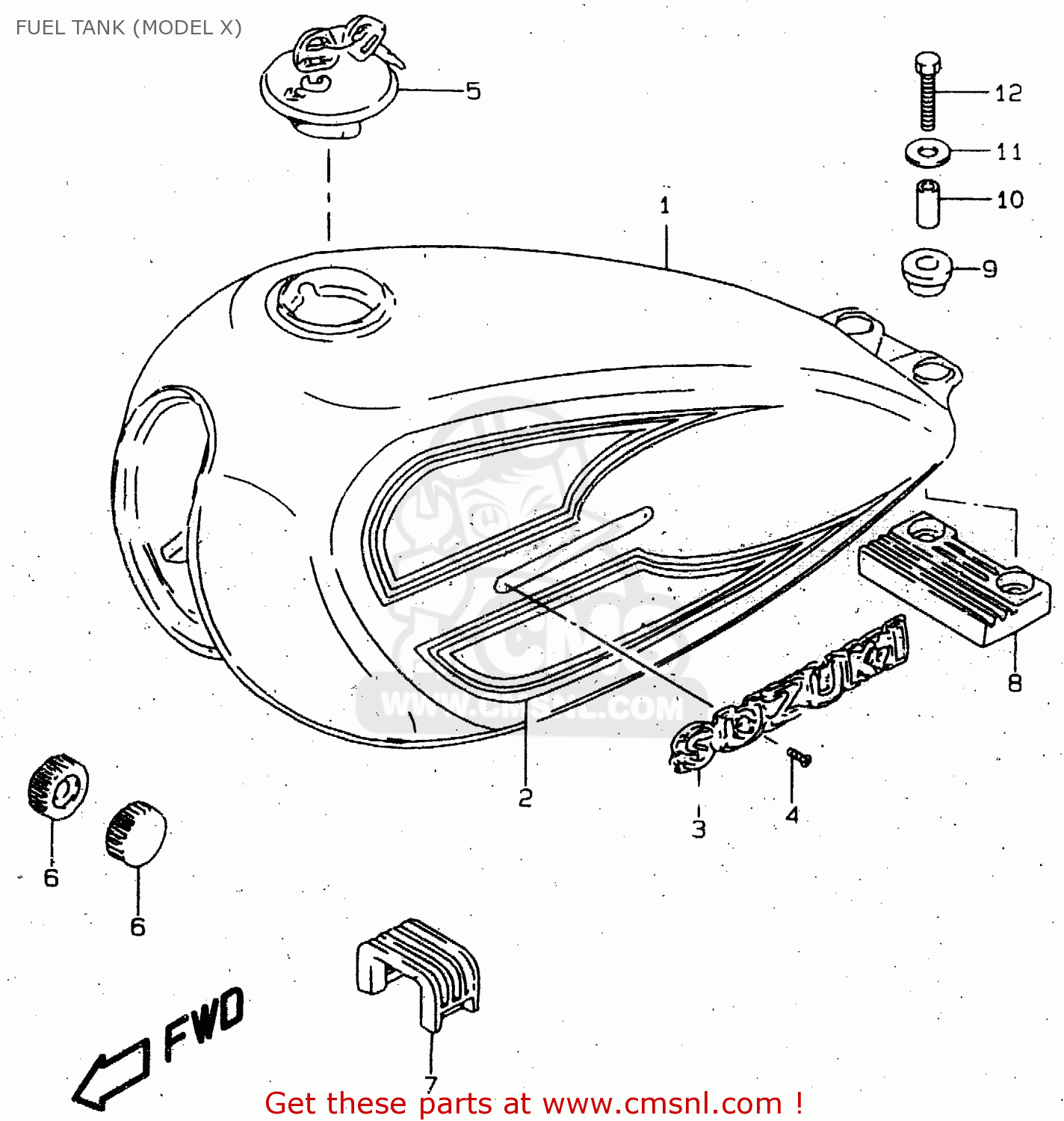

Fuel tank (model x) diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

FUEL TANK (MODEL X) GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
FUEL TANK (MODEL X) GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
FUEL TANK (MODEL X) GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
prices are in EUR
ref
part #
description
quantity
1
44100383A02HX
ref: 1
FOR 19A
TANK ASSY, FUEL (RED)
€ 361.00
1
44100383A02AX
ref: 1
FOR 33J
TANK ASSY, FUEL (BLACK)
€ 361.00
1
44100383A03EX
ref: 1
FOR Y98
TANK ASSY, FUEL (GREEN)
€ 0.00
1
44100383A0Y4H
ref: 1
FOR Y4H
TANK ASSY, FUEL (SILVER)
€ 348.50
1
44100383B02HX
ref: 1
E18,E22 FOR 19A
TANK ASSY, FUEL (RED)
€ 361.00
1
44100383B02AX
ref: 1
E18,E22 FOR 33J
TANK ASSY, FUEL (BLACK)
€ 361.00
1
44100383B03EX
ref: 1
E18,E22 FOR Y98
TANK ASSY, FUEL (GREEN)
€ 361.00
1
44100383B0Y4H
ref: 1
E18,E22 FOR Y4H
TANK ASSY, FUEL (SILVER)
€ 348.50
2
6811038340L7Z
ref: 2
FOR 2HX,2AX,3EX
TAPE SET, FUEL TANK
€ 0.00
2
6811038340L8A
ref: 2
FOR Y4H
TAPE SET,FUEL TANK
€ 0.00
3
6811137300
ref: 3
EMBLEM,FUEL TANK
6811137300
€ 14.00
4
0212203063
ref: 4
SCREW
0212203063
€ 2.00
5
4420030830
ref: 5
CAP SET,FUEL TANK
4420030830
€ 112.00
6
0932910016
ref: 6
CUSHION
0932910016
€ 3.00
7
4454105300
ref: 7
CUSHION,FUEL TANK UPR FR
4454105300
€ 10.50
8
4454238300
ref: 8
CUSHION,TANK RR NO.1
4454238300
€ 8.00
9
0932010022
ref: 9
CUSHION
0932010022
€ 2.50
10
0918006067
ref: 10
SPACER(6.5X10.5X22.5)
0918006067
€ 2.50
11
0916006054
ref: 11
WASHER(6.5X22X1.6)
0916006054
€ 2.00
12
0910006033
ref: 12
BOLT(6X35)
0910006033
€ 12.50
