OIL PUMP

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

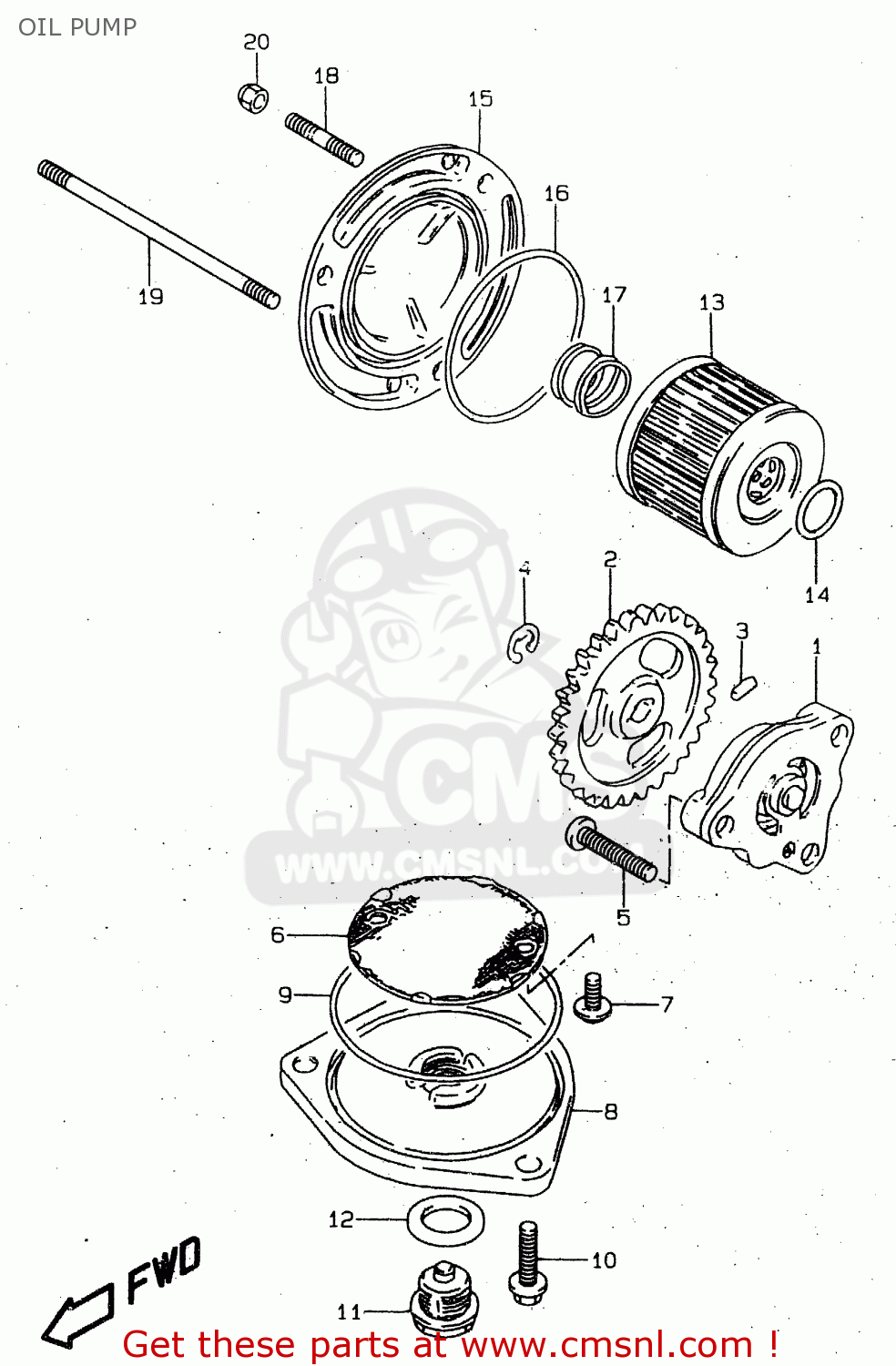

Oil pump diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

OIL PUMP GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
OIL PUMP GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
OIL PUMP GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
prices are in EUR
ref
part #
description
quantity
1
1640005201
ref: 1
PUMP ASSY,ENGINE OIL
1640005201
€ 93.00
2
1633105200
ref: 2
GEAR,ENG OIL PUMP DRIVEN(NT:30
€ 21.00
3
0926102008
ref: 3
PIN(2.5X11.8)
0926102008
€ 1.50
4
0833211063
ref: 4
E.RING
0833211063
€ 2.00
5
0211206253
ref: 5
SCREW
0211206253
€ 1.50
6
1652005202
ref: 6
STRAINER,ENGINE OIL
1652005202
€ 4.50
7
0211275123
ref: 7
SCREW
€ 2.50
8
1652305200
ref: 8
CAP,OIL STRAINER
1652305200
€ 9.00
9
0928060005
ref: 9
O RING(D:2.4,ID:60.5)
0928060005
€ 3.00
10
0154706203
ref: 10
SCREW
0154706203
€ 2.50
11
0924714001
ref: 11
~E.NO.423057
PLUG
0924714001
€ 5.00
11
0924714026
ref: 11
E.NO.423058~
PLUG(14X12)
0924714026
€ 3.50
11
0924714026
ref: 11
E30
PLUG(14X12)
0924714026
€ 3.50
11
0924714001
ref: 11
GN125V E1
PLUG
0924714001
€ 5.00
11
0924714026
ref: 11
GN125EV E1
PLUG(14X12)
0924714026
€ 3.50
12
0916814002
ref: 12
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
13
1651005240
ref: 13
FILTER ASSY,ENGINE OIL
1651005240
€ 8.50
14
0928013004
ref: 14
O RING(D:1.9,ID:13)
0928013004
€ 2.50
15
1651205212
ref: 15
CAP,OIL FILTER
1651205212
€ 15.00
16
0928054001
ref: 16
O RING(D:2.4,ID:52.6)
0928054001
€ 4.00
17
0944018002
ref: 17
SPRING
0944018002
€ 1.50
18
0142106128
ref: 18
STUD 6X12
0142106128
€ 1.50
19
0142106858
ref: 19
STUD BOLT, 6X8
€ 2.50
20
0831310067
ref: 20
NUT
0831310067
€ 2.00
