REAR COMBINATION LAMP (E2,E4,E21)

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

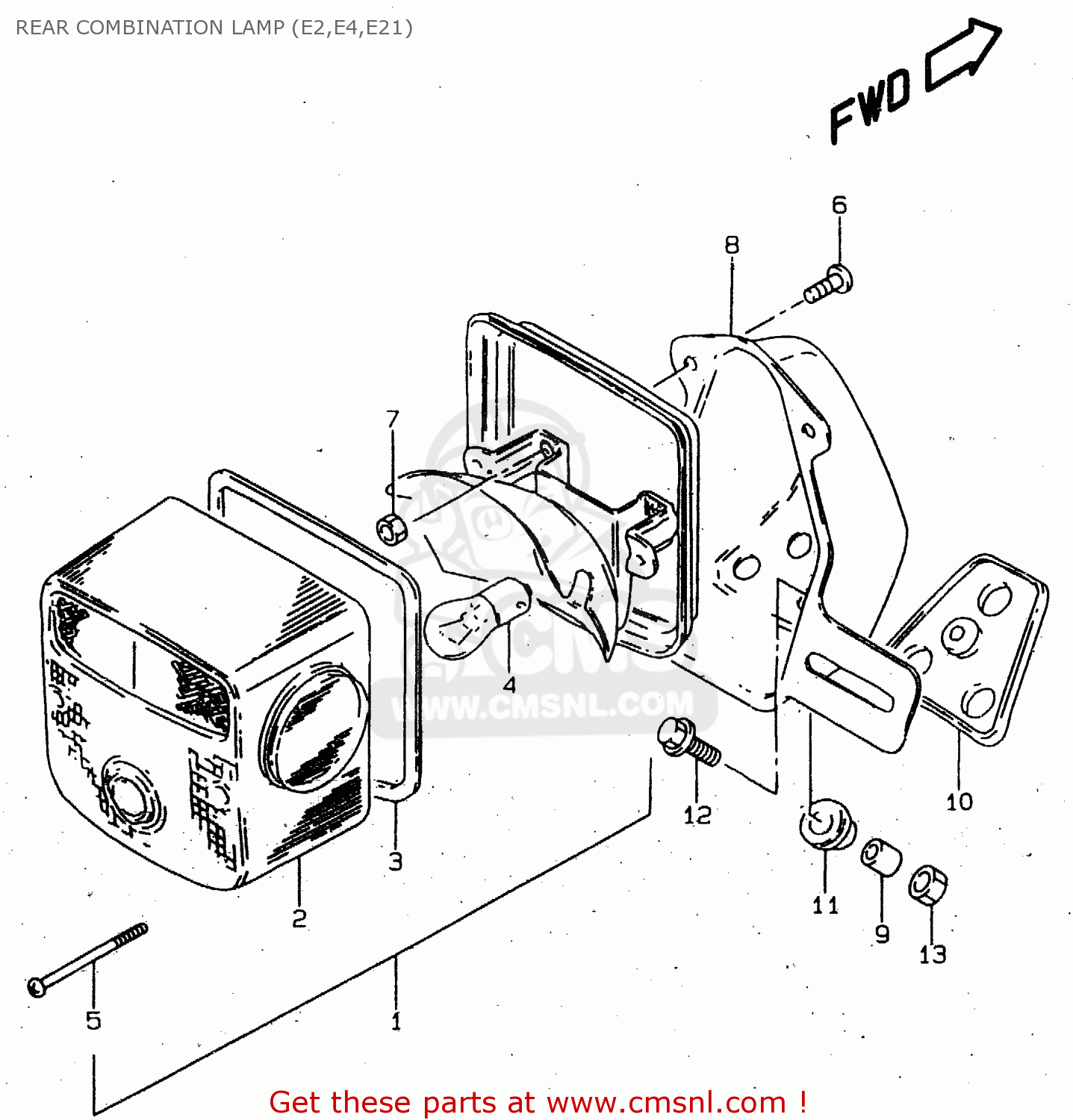

Rear combination lamp (e2,e4,e21) diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

3572038350
ref: 1

LAMP UNIT,RR COMBNATION

€ 138.00

3571238350
ref: 2

LENS

€ 66.00

3571330510
ref: 3

GASKET (NAS)

€ 6.00

0947112083
ref: 4

BULB(12V21/5W)

€ 6.00

0912504002
ref: 5

SCREW (4X55)

€ 1.50

0211206127
ref: 6

SCREW

€ 2.00

0831000067
ref: 7

NUT

€ 2.50

3573038310
ref: 8

BRACKET UNIT,TAIL LAMP

€ 57.50

3576626470
ref: 9

SPACER

€ 2.00

3576526470
ref: 10

CUSHION

€ 10.00

3576426470
ref: 11

CUSHION

€ 2.50

0911606167
ref: 12

BOLT(6X20)

€ 2.00

0831000063
ref: 13

NUT 6MM

€ 2.00
