SEAT

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

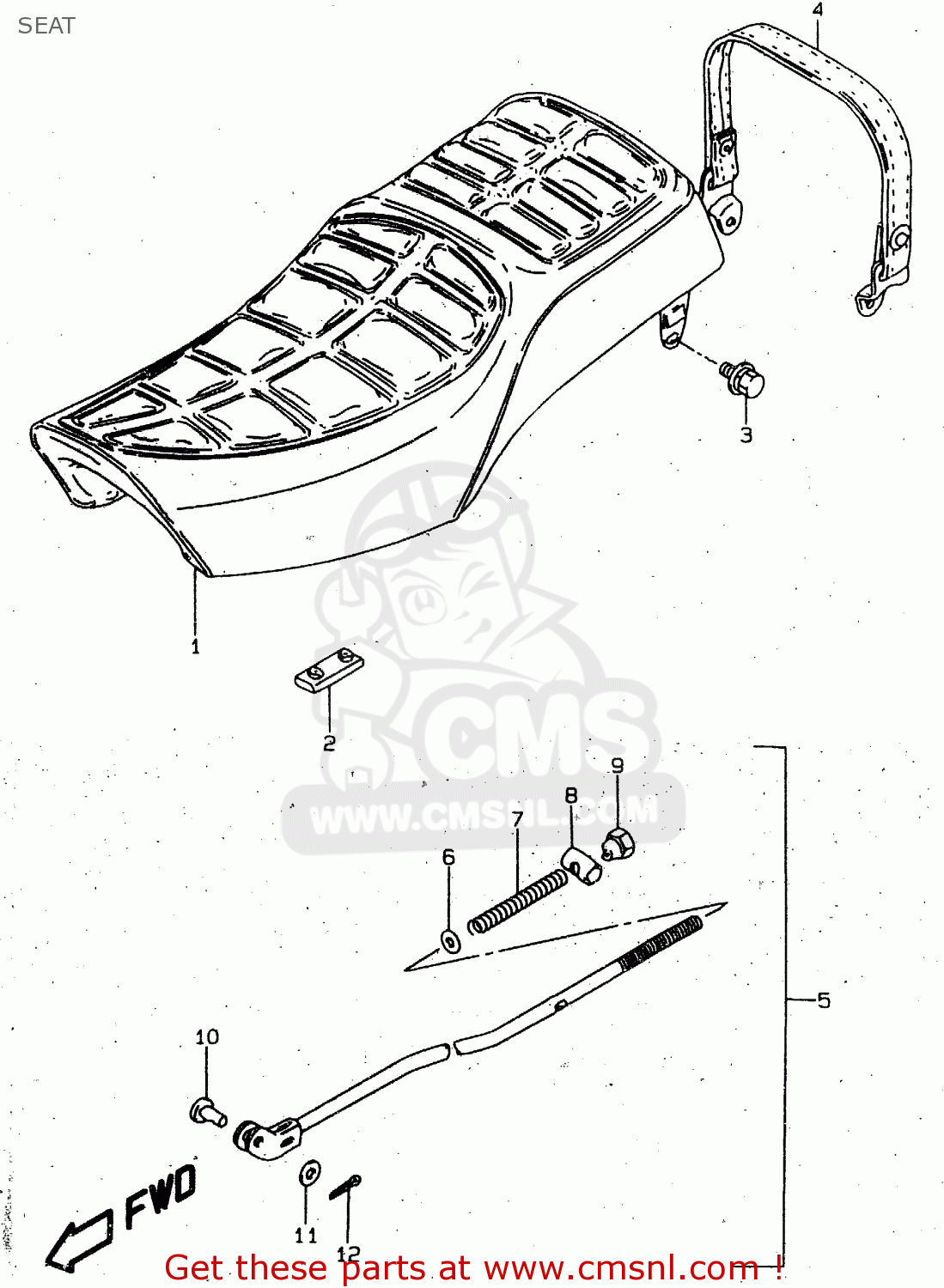

Seat diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

451000532148H
ref: 1

SEAT ASSY

€ 287.00

0932108009
ref: 2

CUSHION

€ 4.00

0155008163
ref: 3

BOLT

€ 3.00

451800532048H
ref: 4
E2,E4,E21,E71,P9, GN

BAND ASSY,SEAT GRIP

€ 25.50

4330026501
ref: 5

ROD ASSY,RR BRAKE

€ 18.50

0832201063
ref: 6

WASHER

€ 2.00

0944009004
ref: 7

SPRING

€ 2.00

0920911002
ref: 8

PIN(11X18)

€ 2.00

0915006014
ref: 9

NUT

€ 3.50

0920006013
ref: 10

PIN(L:13.5)

€ 2.00

0832201063
ref: 11

WASHER

€ 2.00

0411120208
ref: 12

PIN 20X20

€ 1.50
