FRAME COVER (MODEL X)

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

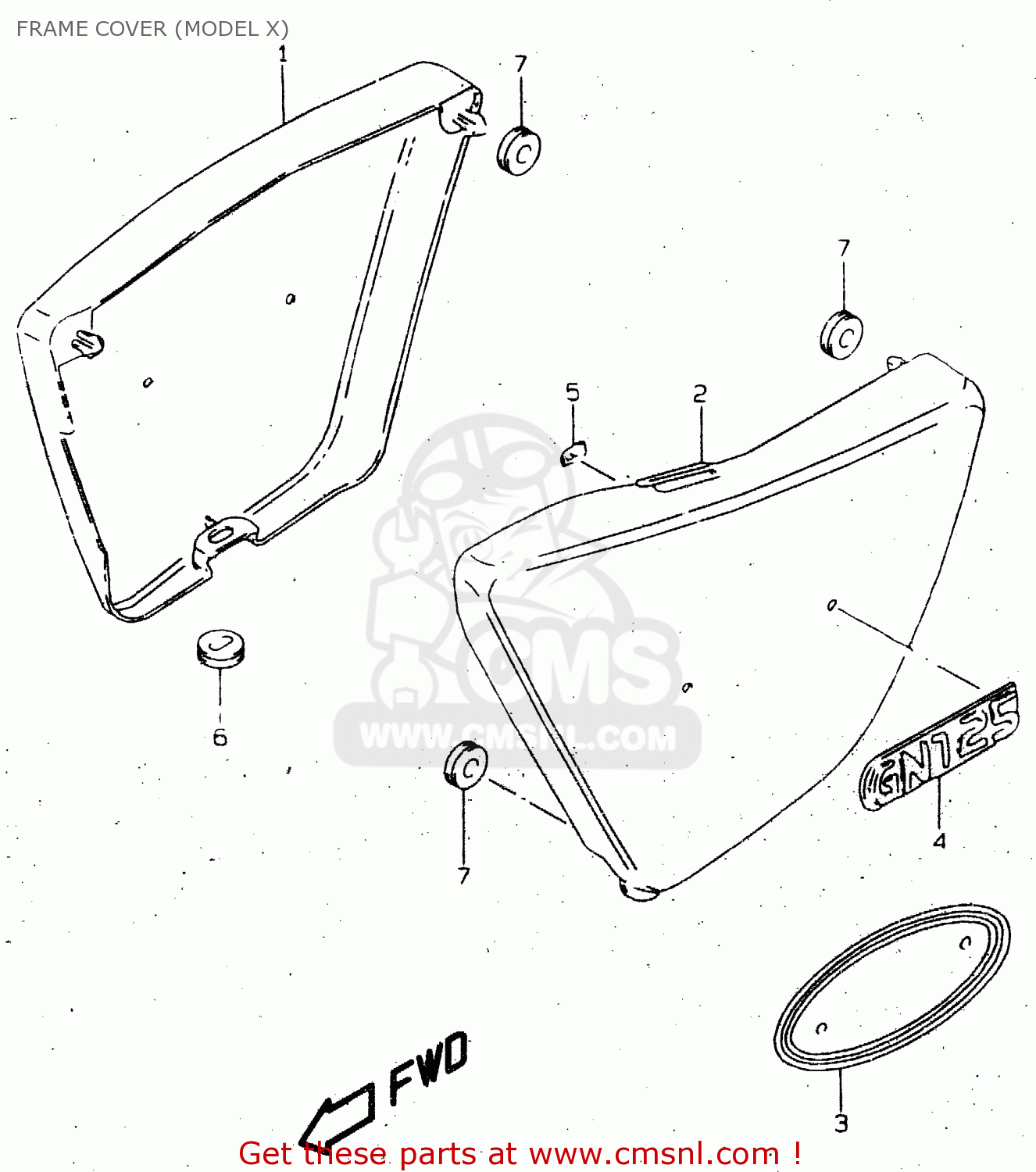

Frame cover (model x) diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

471110530119A
ref: 1

COVER,FRAME,R(RED)

€ 63.00

471110530133J
ref: 1

COVER,FRAME,R(BLACK)

€ 63.00

4711105301Y98
ref: 1

COVER,FRAME,R(GREEN)

€ 53.50

4711105301Y4H
ref: 1

COVER, FRAME RH (SILVER)

€ 39.00

472110530119A
ref: 2

COVER,FRAME,L(RED)

€ 53.50

472110530133J
ref: 2

COVER,FRAME,L

€ 65.00

4721105301Y98
ref: 2

COVER,FRAME,L(GREEN)

€ 45.00

4721105301Y4H
ref: 2

COVER,FRAME,L(SILVER)

€ 53.50

6813538300L7Z
ref: 3
FOR 19A,33J,Y98

TAPE,FRAME COVER

€ 14.00

6813538300L8A
ref: 3
FOR Y4H

TAPE,FRAME COVER

€ 14.00

6813105310
ref: 4

EMBLEM,FRAME COVER

€ 20.00

0914803003
ref: 5

NUT

€ 2.00

0932003004
ref: 6

CUSHION

€ 2.00

0932008018
ref: 7

CUSHION

€ 4.00
