STAND

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

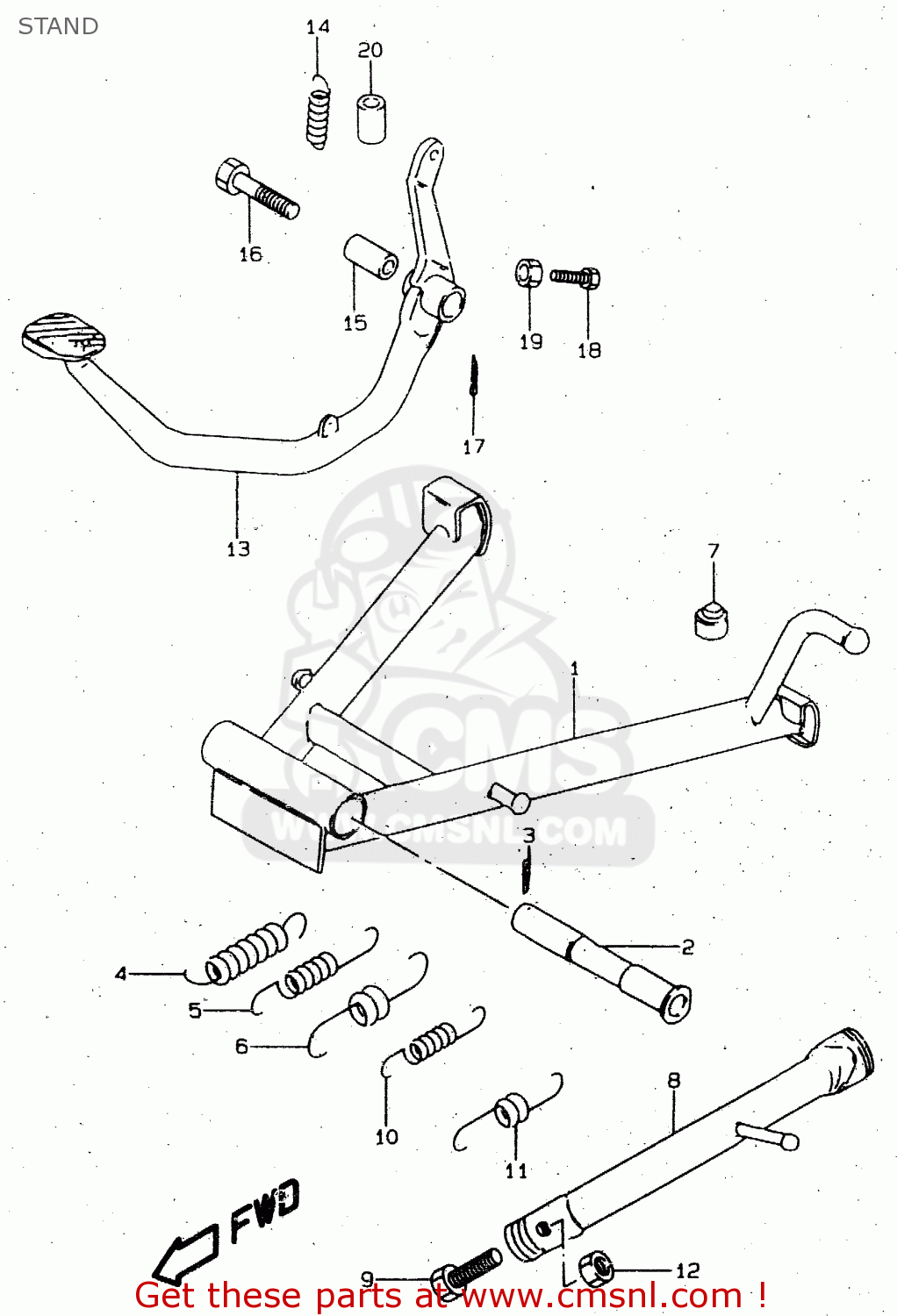

Stand diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

STAND GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
STAND GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
STAND GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
prices are in EUR
ref
part #
description
quantity
1
4210005303
ref: 1
STAND,CTR
4210005303
€ 70.50
2
4221136504
ref: 2
SHAFT,CTR STAND
4221136504
€ 20.00
3
0411130308
ref: 3
COTTER PIN
0411130308
€ 1.50
4
0944318006
ref: 4
SPRING
0944318006
€ 5.50
5
0944315013
ref: 5
E18,E22
SPRING
0944315013
€ 22.50
6
0944322003
ref: 6
E18,E22
SPRING
0944322003
€ 7.00
7
0932110001
ref: 7
CUSHION
0932110001
€ 2.50
8
42310053E0
ref: 8
STAND,PROP
42310053E0
€ 43.50
9
0911110047
ref: 9
BOLT(10X30)
0911110047
€ 4.50
10
0944312025
ref: 10
SPRING
0944312025
€ 18.50
11
0944319006
ref: 11
SPRING
0944319006
€ 18.00
12
0915910027
ref: 12
MODEL V/W
NUT
0915910027
€ 3.00
12
0831921103
ref: 12
MODEL X
NUT
0831921103
€ 2.00
13
4311005301
ref: 13
PEDAL,BRAKE
4311005301
€ 37.00
14
0944314015
ref: 14
SPRING
0944314015
€ 3.00
15
4323105302
ref: 15
SPACER,BRAKE PEDAL BOSS
4323105302
€ 7.00
16
0911610121
ref: 16
BOLT(10X52)
€ 4.50
17
0411120208
ref: 17
PIN 20X20
0411120208
€ 1.50
18
0910006009
ref: 18
BOLT(6X23)
0910006009
€ 1.50
19
0831000063
ref: 19
NUT 6MM
0831000063
€ 2.00
20
4326117C00
ref: 20
TUBE,BRAKE SPRING GUIDE
4326117C00
€ 5.50
