BATTERY

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

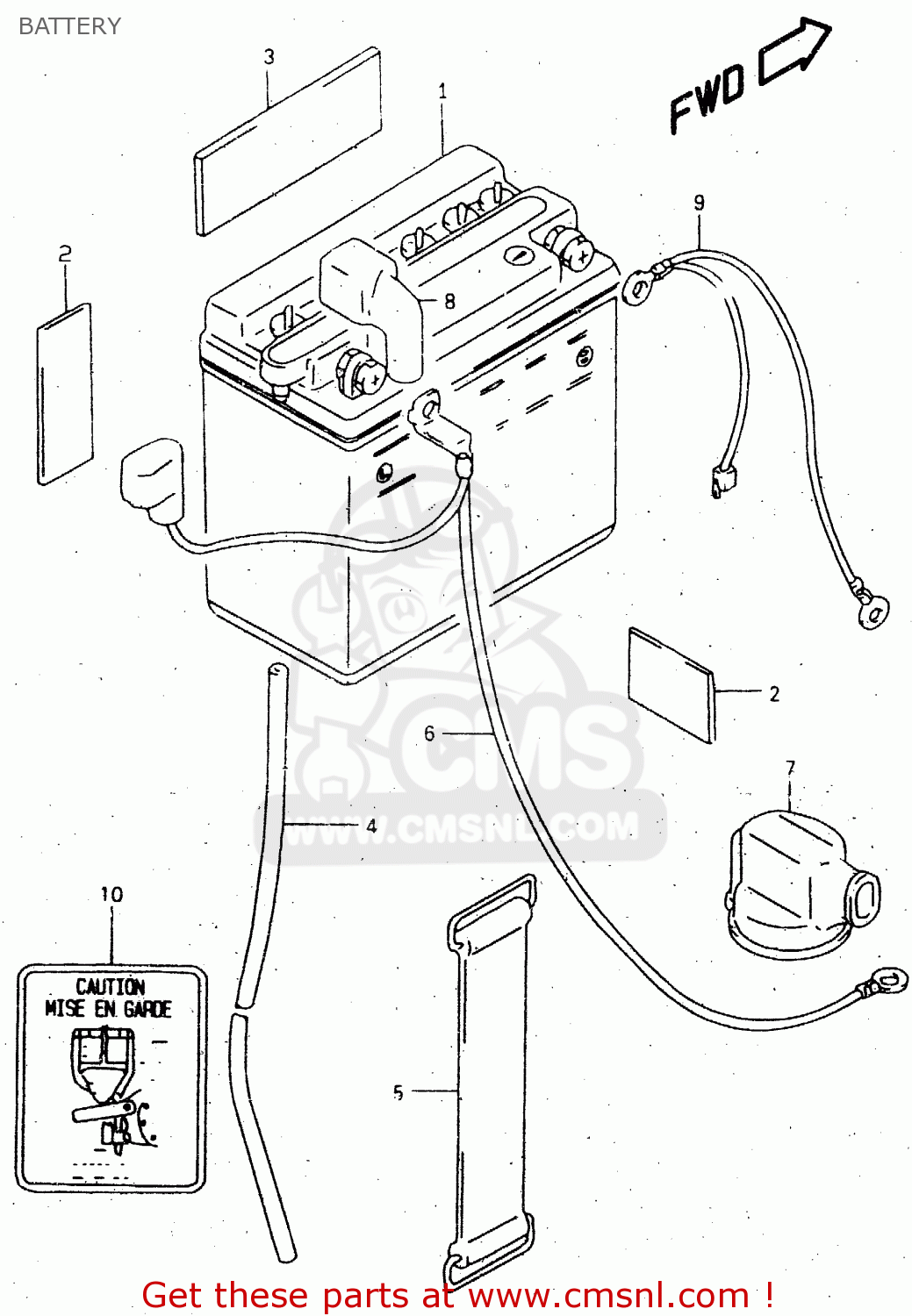

Battery diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

3361010310
ref: 1

BATTERY ASSY(YB7-A)

€ 81.50

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365228000
ref: 3

CUSHION 20X45X6

€ 6.00

3368016A10
ref: 4
L:780->450

HOSE,BATTERY EXHAUST(L:780)

€ 4.50

0946200020
ref: 5

BAND

€ 7.00

33820053A0
ref: 6

WIRE,BATTERY PLUS LEAD

€ 34.00

3186110D00
ref: 7

CAP,STARTER RELAY

€ 4.00

3362443500
ref: 8

CAP,BATTERY PLUS TERMINAL

€ 3.50

3386005550
ref: 9

WIRE,BATTERY MINUS LEAD

€ 10.50

3369005360
ref: 10

PLATE,BATTERY CAUTION

€ 3.00
