FRONT DAMPER

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

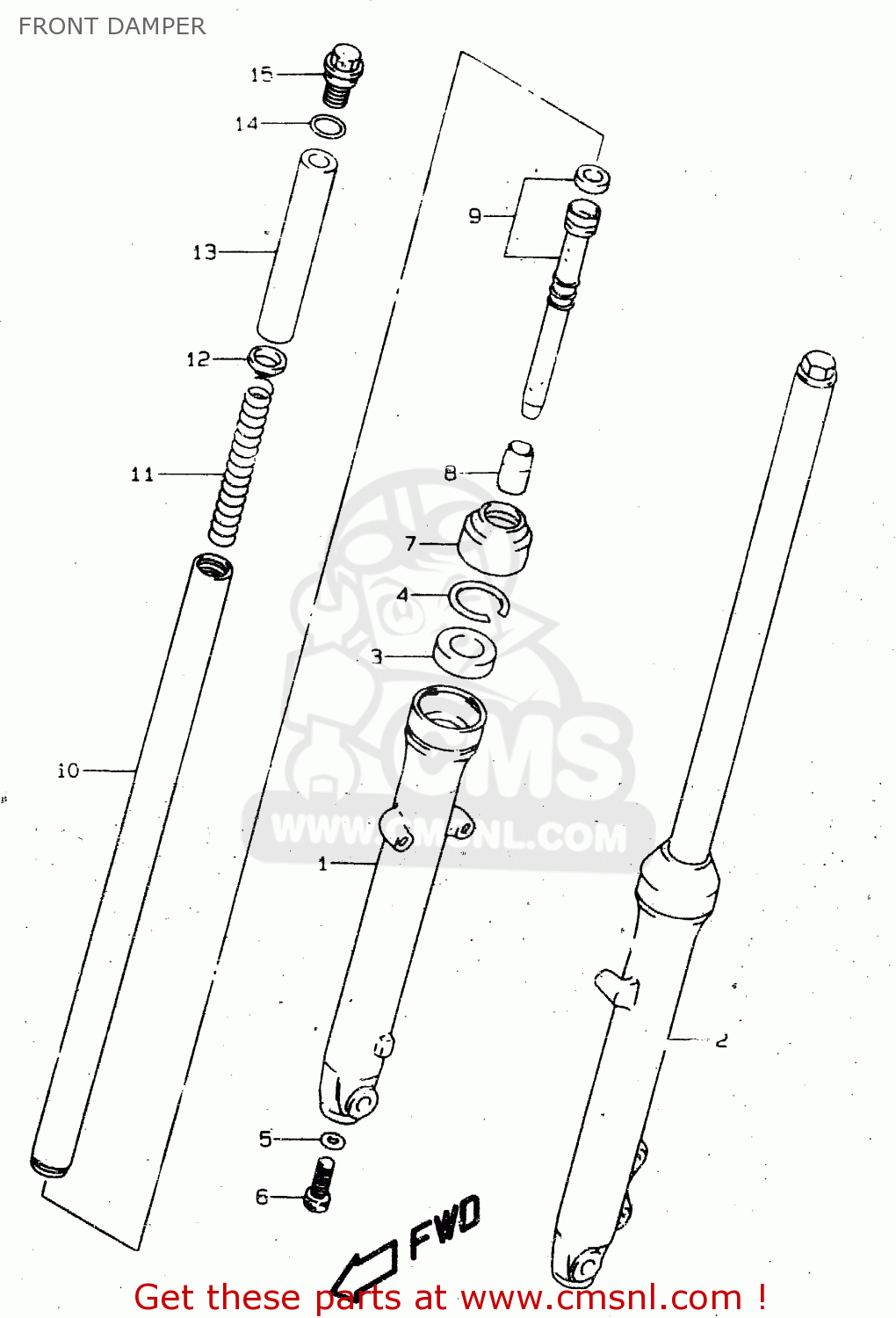

Front damper diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

FRONT DAMPER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

FRONT DAMPER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

prices are in EUR

ref

part #

description

quantity

0

5110305301
ref: 0

DAMPER ASSY,FR FORK,R

€ 329.00

0

5110405301
ref: 0

DAMPER ASSY,FR FORK,L

€ 374.00

1

5113005300
ref: 1

TUBE,OUTER,R

€ 140.50

2

5114005300
ref: 2

TUBE,OUTER,L

€ 154.50

3

5115305300
ref: 3

SEAL,OIL

€ 9.00

4

5115641603
ref: 4

RING,SNAP

€ 7.50

5

5114841310
ref: 5

GASKET (NAS)

€ 2.50

6

5114716510
ref: 6

BOLT,FORK CYLINDER(10X25)

€ 3.50

7

5117341603
ref: 7

SEAL,DUST

€ 6.00

8

5119536220
ref: 8

PIECE,OIL LOCK

€ 11.50

9

5114605300
ref: 9

CYLINDER

€ 35.00

10

5111005300
ref: 10

TUBE,INNER

€ 257.50

11

5117105300
ref: 11

SPRING

€ 24.50

12

5117218630
ref: 12

GUIDE,SPRING COVER

€ 5.50

13

5117605300
ref: 13

SPACER

€ 10.00

14

5118129400
ref: 14

O RING

€ 2.50

15

5135141603
ref: 15

CAP

€ 11.00
