Buy Suzuki GN Parts Online


CYLINDER

GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

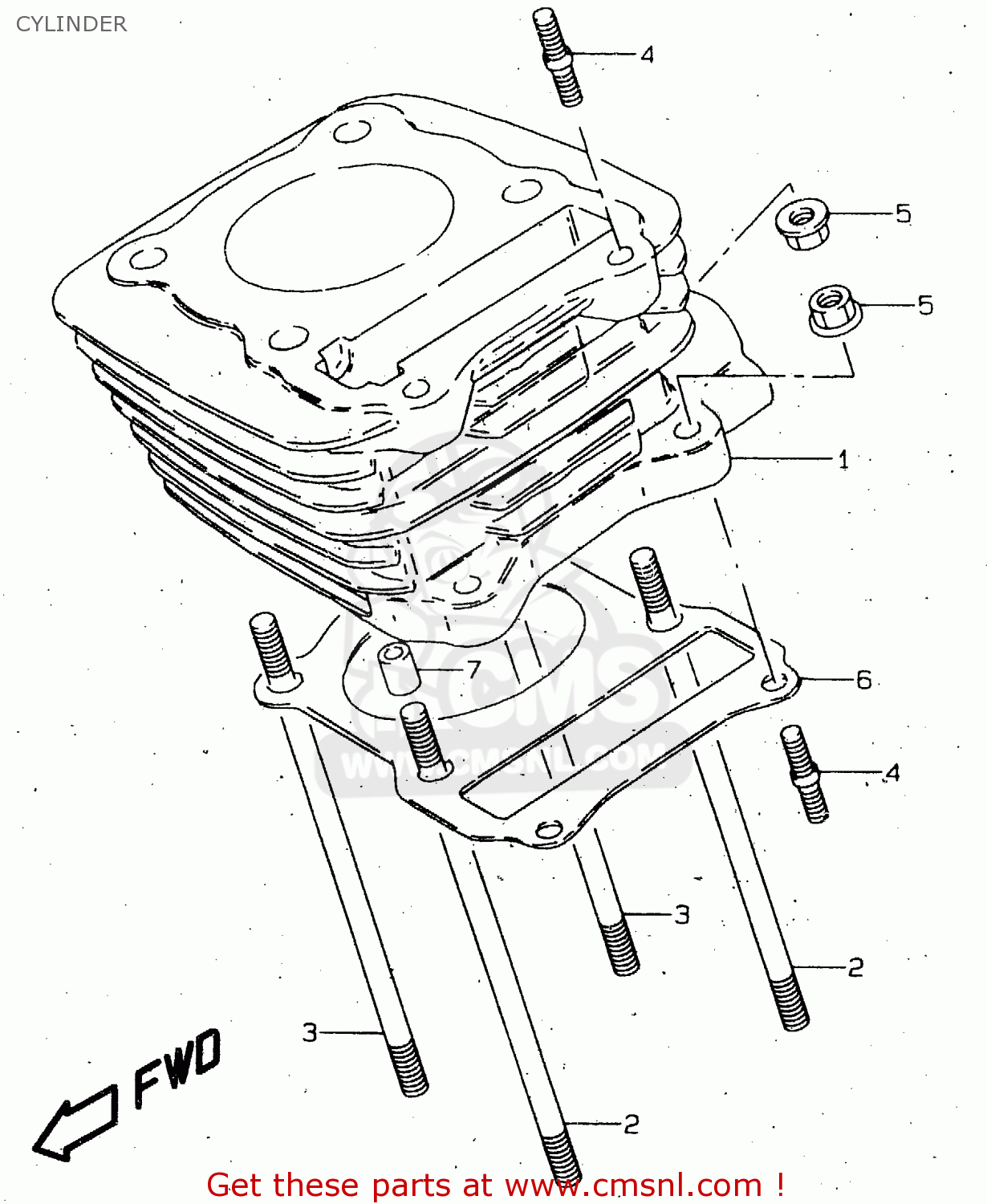

Cylinder diagram GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9

CYLINDER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
CYLINDER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
CYLINDER GN125 1999 (X) (E02 E04 E18 E21 E22 E71) / P9
prices are in EUR
ref
part #
description
quantity
1
11210052020F0
ref: 1
CYLINDER
€ 255.50
2
0910808062
ref: 2
BOLT,STUD
0910808062
€ 4.50
3
0910808089
ref: 3
BOLT,STUD
0910808089
€ 6.00
4
0142106257
ref: 4
BOLT,STUD
0142106257
€ 2.50
5
0831610067
ref: 5
NUT
0831610067
€ 2.00
6
1124105311
ref: 6
GASKET,CYLINDER (NAS)
1124105311
€ 4.50
7
0421111149
ref: 7
PIN
0421111149
€ 2.00
